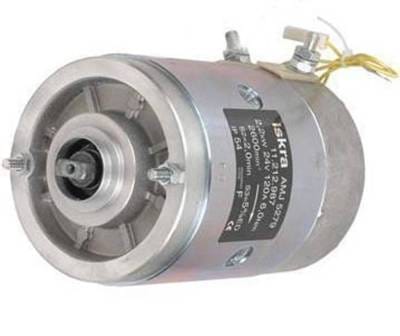

24V 2.2Kw Hydraulic Motor Compatible With Iskra Letrika 11.212.987 Amj5279 Im0057 Mm381 Dautel Mbb

ISKRA / LETRIKA / MAHLE OEM PART NUMBERS:
• 11.212.987 (AMJ5279) - Primary Part Number
• 11.212.770 (AMJ5217) - With Thermal Protection
• 11.216.997 (AMJ5885) - With Thermal Protection
• IM0057 - Iskra/Letrika Internal Reference
• MM381 - Mahle Reference
• MM60 - Mahle Reference

BROC (OIL SISTEM) PART NUMBERS:
• C162051003
• C1620S1003

WESTERN MOTOR PART NUMBERS:
• W-5642A

DAUTEL PART NUMBERS:
• 65980
• 0065980
• 2009188

MBB PALFINGER PART NUMBERS:
• 12988059
• 2001004

ANTEO PART NUMBERS:
• 35804701
• 358047

HACO PART NUMBERS:
• 2008702H

BEHRENS EUROLIFT PART NUMBERS:
• E0019005

RATCLIFF PART NUMBERS:
• 4696-327-2

SPECIFICATIONS:
• Type: Hydraulic Motor
• Unit Type: Iskra/Letrika
• Voltage: 24V
• Power: 2.2kW
• Amperage: 120A
• Rotation: CW (Clockwise)
• Speed: 2600 RPM
• OD: 4.488 in / 114mm
• Shaft OD: 0.709 in / 18mm
• Length: 7.52 in / 191mm
• Shaft: 8mm Tang
• Terminal 1: M8-1.25
• Terminal 2: M8-1.25
• Mounting Bolts: M6-1.0
• Ground: Insulated
• Thermal Protection: Yes (Overheat Protection)
• Weight: 6.78 kg / 14.95 lbs
• Condition: New

FITS DAUTEL TAIL LIFT MODELS:
• DL Series: DL1000-48L, DL1000-48S, DL1500-48L, DL1500-48S, DL2000-48L, DL2000-48S, DL2500-48L
• DLB Series: DLB1000-45, DLB1000-47L, DLB1000-47S, DLB1250-45, DLB1500-45, DLB1500-46VC, DLB1500-47L, DLB1500-47S, DLB1500-47VA, DLB1750-45, DLB2000-45, DLB2000-46VC, DLB2000-47L, DLB2000-47S, DLB2500-45, DLB2500-47S, DLB3000-47L
• DS Series: DS1500-48VA, DS1500-48VB, DS2000-48VA, DS2000-48VB

FITS MBB PALFINGER TAIL LIFTS:
• ILF Series, K Series, UK Series, Hubfix Series

FITS ADDITIONAL TAIL LIFT BRANDS:
• Anteo - Cantilever, Column, Retractable Tail Lifts
• Wullhorst - Commercial Truck Tail Lifts
• Behrens Eurolift - Cantilever, Retractable Tail Lifts
• Bar Cargolift - BC Series, RetFalt Series
• Sorensen - Commercial Tail Lifts
• Zepro - Tail Lift Systems
• Dhollandia - Tail Lift Platforms
• Ratcliff Palfinger - Tail LiftsPRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
COMPATIBLE WITH COMMERCIAL TRUCK TAIL LIFT / LIFTGATE SYSTEMS:

DAUTEL:

DL Series (Lifter):
• Dautel DL1000-48L - 1000kg Capacity, Long Platform
• Dautel DL1000-48S - 1000kg Capacity, Short Platform
• Dautel DL1500-48L - 1500kg Capacity, Long Platform
• Dautel DL1500-48S - 1500kg Capacity, Short Platform
• Dautel DL2000-48L - 2000kg Capacity, Long Platform
• Dautel DL2000-48S - 2000kg Capacity, Short Platform
• Dautel DL2500-48L - 2500kg Capacity, Long Platform

DLB Series (Folder):
• Dautel DLB1000-45 - 1000kg Capacity
• Dautel DLB1000-47L - 1000kg Capacity, Long Platform
• Dautel DLB1000-47S - 1000kg Capacity, Short Platform
• Dautel DLB1250-45 - 1250kg Capacity
• Dautel DLB1500-45 - 1500kg Capacity
• Dautel DLB1500-46VC - 1500kg Capacity, VC Version
• Dautel DLB1500-47L - 1500kg Capacity, Long Platform
• Dautel DLB1500-47S - 1500kg Capacity, Short Platform
• Dautel DLB1500-47VA - 1500kg Capacity, VA Version
• Dautel DLB1750-45 - 1750kg Capacity
• Dautel DLB2000-45 - 2000kg Capacity
• Dautel DLB2000-46VC - 2000kg Capacity, VC Version
• Dautel DLB2000-47L - 2000kg Capacity, Long Platform
• Dautel DLB2000-47S - 2000kg Capacity, Short Platform
• Dautel DLB2500-45 - 2500kg Capacity
• Dautel DLB2500-47S - 2500kg Capacity, Short Platform
• Dautel DLB3000-47L - 3000kg Capacity, Long Platform

DS Series (Slider):
• Dautel DS1500-48VA - 1500kg Capacity, VA Version
• Dautel DS1500-48VB - 1500kg Capacity, VB Version
• Dautel DS2000-48VA - 2000kg Capacity, VA Version
• Dautel DS2000-48VB - 2000kg Capacity, VB Version

MBB PALFINGER:

Tail Lift Systems:
• MBB Palfinger ILF Series - Integrated Tail Lifts
• MBB Palfinger K Series - Cantilever Tail Lifts
• MBB Palfinger UK Series - Underbody Tail Lifts
• MBB Palfinger Hubfix Series - Fixed Tail Lifts

ANTEO:

Tail Lift Systems:
• Anteo Cantilever Tail Lifts
• Anteo Column Tail Lifts
• Anteo Retractable Tail Lifts

WULLHORST:

Tail Lift Systems:
• Wullhorst Commercial Truck Tail Lifts
• Wullhorst Hydraulic Liftgate Systems

BEHRENS EUROLIFT:

Tail Lift Systems:
• Behrens Eurolift Cantilever Tail Lifts
• Behrens Eurolift Retractable Tail Lifts

BAR CARGOLIFT:

Tail Lift Systems:
• Bar Cargolift BC Series Tail Lifts
• Bar Cargolift RetFalt Series

ADDITIONAL COMPATIBLE BRANDS:
• Sorensen - Commercial Tail Lifts
• Zepro - Tail Lift Systems
• Dhollandia - Tail Lift Platforms
• Ratcliff Palfinger - Tail Lifts
• Broc / Oil Sistem - Hydraulic Power Units

APPLICATION TYPES:
• Commercial truck tail lifts and liftgates
• Distribution and logistics vehicles
• Beverage delivery trucks
• Refrigerated transport vehicles
• Box trucks and curtainsiders
• Semi-trailers with tail lift systems
• General cargo and freight transport
• Hydraulic power unit pump motors
