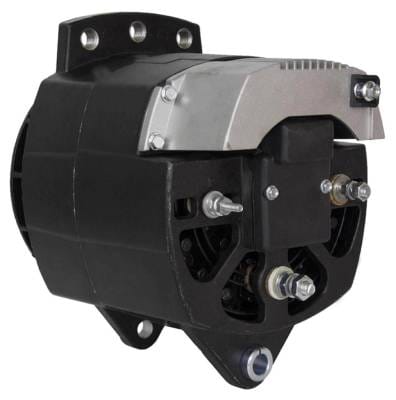

24V 100A Alternator Compatible With Sabre 26310 Valeo 2983014 Volvo Penta 02557832-9 Tmd120 Tmd122a

MOTOROLA / PRESTOLITE / LEECE-NEVILLE:
• 10-298 (10298)
• 8SC3014U
• 8SC3014US
• 8SC3133U (Leece-Neville current version)
• 110-298 (110298) - Prestolite
• 110-158 (110158) - Prestolite
• 110-183 (110183) - Prestolite
• 110-302 (110302) - Prestolite
• 110-316 (110316) - Prestolite

VOLVO PENTA:
• 02557832-9 (2557832)
• 849748
• 3803499

CARRIER TRANSICOLD:
• 281004010

CLARK:
• 460496500
• 896892

CUMMINS:
• 3279220
• 504065529

MACK / RENAULT:
• 5000789396

SABRE ENGINES:
• 26310

VALEO:
• 2983014

CATERPILLAR:
• 1501935

THERMO KING:
• 44-4021 (444021)

SPECIFICATIONS:
• Voltage: 24V
• Amperage: 100A
• Rotation: CW (Clockwise)
• Fan: External
• Regulator: Internal (8RL3024)
• Excitation: Ignition Excite
• Sense: Local Sense
• Rectifier: Internal
• Mount: J-180 Metric
• Mounting: 3 Holes, 1/2-13 NC
• Positive Stud: M8x1.25 THD
• Negative Stud: M6x1.25 THD
• Shaft: .8740-.8745in
• Housing: Raw Coating
• Trio: Yes
• Weight: 27.47 lbs / 12.49 kg
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
VOLVO PENTA MARINE DIESEL ENGINE APPLICATIONS:

D12 SERIES:
• D12C - 6Cyl, 740CI, 12.1L Diesel - 1999-2004
• D12D - 6Cyl, 740CI, 12.1L Diesel - 1999-2004

TAMD SERIES (Turbocharged Aftercooled Marine Diesel):
• TAMD63L,P - 6Cyl, 333CI, 5.5L Diesel - 1994-2005
• TAMD72,A,P,WJ - 6Cyl, 410CI, 6.7L Diesel - 1991-1997
• TAMD73P,WJ - 6Cyl, 411CI, 6.7L Diesel - 1997-1999
• TAMD74A,C,L,P - 6Cyl, 444CI, 7.3L Diesel - 1998-2005
• TAMD75P - 6Cyl, 444CI, 7.3L Diesel - 1998-2005
• TAMD102A,D - 6Cyl, 585CI, 9.6L Diesel - 1991-2000
• TAMD103A - 6Cyl, 585CI, 9.6L Diesel - 2000-2004
• TAMD120 - 6Cyl Diesel
• TAMD120A,B - 6Cyl Diesel - 1972-1983
• TAMD122,A,C,D,P - 6Cyl, 732CI, 12.0L Diesel - 1988-2002
• TAMD162,A,B,C - 6Cyl, 984CI, 16.1L Diesel - 1988-2001
• TAMD165A,C,P - 6Cyl, 984CI, 16.1L Diesel - 2002-2005

TMD SERIES (Turbocharged Marine Diesel):
• TMD100 - 6Cyl Diesel
• TMD100B,C - 6Cyl Diesel - 1965-1988
• TMD120 - 6Cyl Diesel
• TMD120A,B - 6Cyl Diesel - 1970-1984
• TMD122A - 6Cyl, 732CI, 12.0L Diesel - 1988-2000

OTHER APPLICATIONS:
• Poyaud Marine Inboard - Various Models Diesel
• Motorola Marine Alternator Applications

SPECIFICATIONS:
• 24V / 100A Output
• CW (Clockwise) Rotation
• J-180 Metric Mounting
• 3 Mounting Holes, 1/2-13 NC Bolts
• External Fan / Internal Regulator (8RL3024)
• Ignition Excite / Local Sense
• Positive Stud: M8x1.25 THD
• Negative Stud: M6x1.25 THD
• Shaft: .8740-.8745in
• Housing: Raw Coating
• Weight: 27.47 lbs / 12.49 kg
