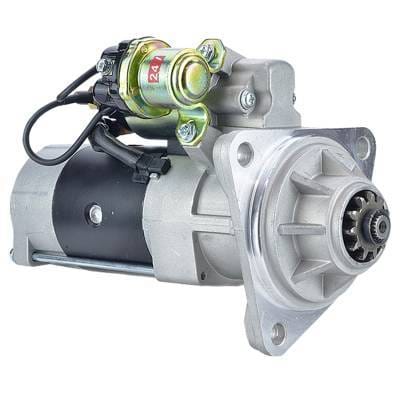

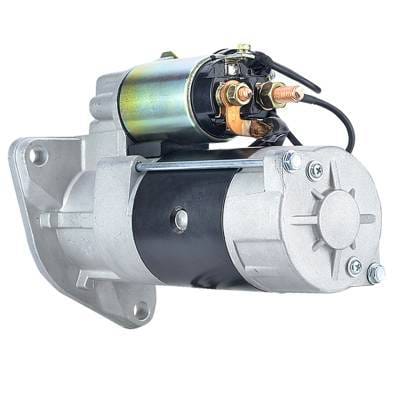

24 Volt Starter Compatible With Daewoo Doosan Wheel Loader Mega 200-V 250-V Db58 Engine

DELCO OEM PART NUMBERS:
• 8200777

DAEWOO OEM PART NUMBERS:
• 300516-0004IA / 3005160004IA

DOOSAN OEM PART NUMBERS:
• 65.26201-7076 / 65262017076
• 65.26201-7076A / 65262017076A
• 65.26201-7076B / 65262017076B
• 65.26201-7076C / 65262017076C
• 65.26201-7076D / 65262017076D

SPECIFICATIONS:
• Unit Type: Daewoo
• Starter Type: OSGR (Oil-Sealed Gear Reduction)
• Voltage: 24V
• Rotation: CW (Clockwise)
• Teeth: 11
• Power: 4.5 KW / 6.03 HP
• Gear OD: 1.579 in / 40.1mm

MOUNTING:
• Mounting Ear 1: 13mm Unthreaded
• Mounting Ear 2: 13mm Unthreaded
• Mounting Ear 3: 13mm Unthreaded
• 3-Ear Mount Configuration

PHYSICAL:
• Weight: 18.87 lbs / 8.58 kg

ENGINE FITMENT:
• Daewoo/Doosan DB58 Diesel Engine

⚠️ This starter fits Daewoo engines on Daewoo & Doosan equipment by part number only. Verify OEM part number from original unit.PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
DAEWOO / DOOSAN STARTER APPLICATIONS:

ENGINE FITMENT:
• Daewoo/Doosan DB58 Diesel Engine

CRAWLER EXCAVATORS:
• Solar 140LC-V
• Solar 175LC-V
• Solar 225LC-V
• Solar 255LC-V

WHEEL EXCAVATORS:
• Solar 140W-V
• Solar 160W-V
• Solar 180W-V
• Solar 210W-V
• DX140W Tier-II

WHEEL LOADERS:
• Mega 200-V
• Mega 250-V

FORKLIFTS:
• D355S-5

FITMENT NOTES:
• This starter fits Daewoo engines on Daewoo & Doosan equipment
• Match by OEM part number only
• 24 Volt OSGR Starter
• 11 Tooth CW Rotation
• 3-Ear Mounting with 13mm Unthreaded Holes

⚠️ Verify OEM part number from original unit before ordering.
