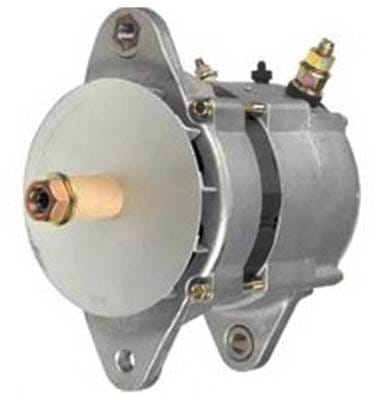

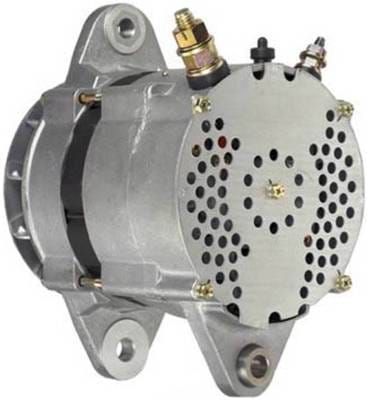

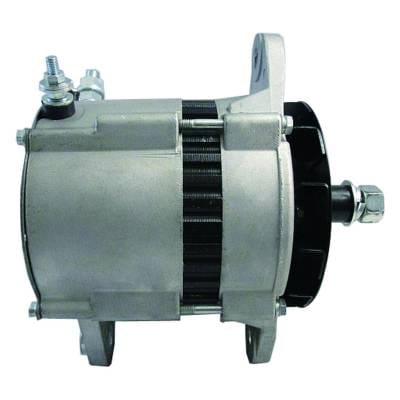

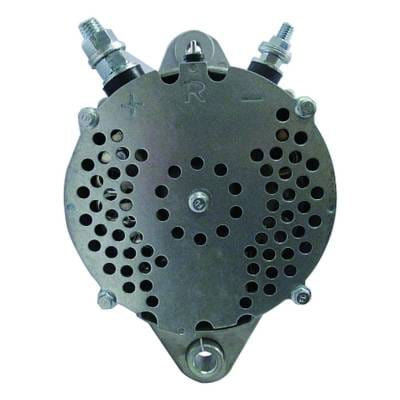

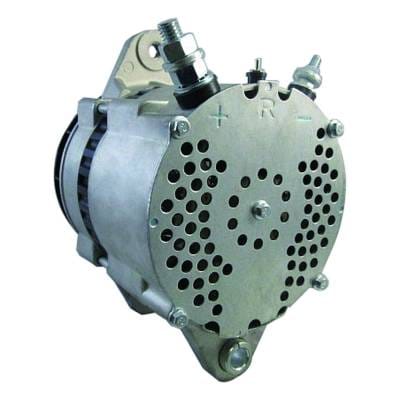

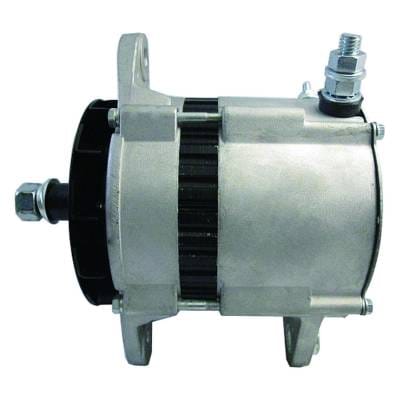

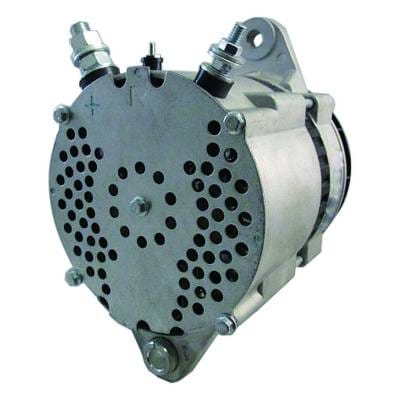

24 Volt 50A Alternator Compatible With Caterpillar Mining Truck 769D 771C 771D Grader 140H Denso

CATERPILLAR OEM PART NUMBERS:
• 6N9294 (6N-9294)
• 7T6172
• 100-5045 (1005045)
• 100-5047 (1005047)
• 5S9088 (5S-9088)
• 6T7223
• 7T6173
• 9G4574
• 0R3667 (0R-3667)
• 0R3669 (0R-3669)
• 0R5206 (0R-5206)
• 112-5041 (1125041)
• 169-3345 (1693345)
• 6L6024
• 3E7578

DENSO / NIPPONDENSO:
• 100211-0860 (1002110860)
• 100211-0890 (1002110890)
• 101211-6100 (1012116100)

ND REMAN:
• 9760218-086 (9760218086)
• 9760218-089 (9760218089)
• 9761219-610 (9761219610)

PRESTOLITE:
• 110-446 (110446)

SPECIFICATIONS:
• Voltage: 24V DC
• Amperage: 50A
• Type: Denso Brushless
• Fan: External (Pulley Not Included)
• Regulator: Internal (IR/EF)
• Polarity: Negative Ground
• B+ Terminal: 7/16-14
• Battery Terminal Position: 11:00
• Weight: 21 lbs / 9.55 kg
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
CATERPILLAR EXCAVATORS:
• 235D - 1988-1992 - CAT 3306 Engine
• 245 - 1985-1988 - CAT 3406 Engine
• 245B - 1989-1992 - CAT 3406 Engine
• 245D - 1989-1992 - CAT 3406 Engine

CATERPILLAR FORESTRY LOADER:
• FB227 - 1983-1993 - CAT 3208 Engine

CATERPILLAR GRADERS:
• 120G - 1985-1995 - CAT 3304 Engine
• 12G - 1985-1995 - CAT 3306 Engine
• 130G - 1985-1995 - CAT 3304 Engine
• 140G - 1985-1995 - CAT 3306 Engine
• 140H - 1994-2000 - CAT 3306 Engine
• 14G - 1985-1995 - CAT 3306 Engine
• 16G - 1985-1995 - CAT 3406 Engine

CATERPILLAR OFF-ROAD & MINING TRUCKS:
• 768C - 1985-1996 - CAT 3408 Engine
• 769C - 1985-1996 - CAT 3408 Engine
• 769D - 1995-1999 - CAT 3408 Engine
• 771C - 1992-1997 - CAT 3408 Engine
• 771D - 1997-2000 - CAT 3408 Engine

SPECIFICATIONS:
• 24V / 50A Brushless Output
• Denso Type - CW Rotation
• External Fan / Internal Regulator
• B+ Terminal: 7/16-14
• Negative Ground Polarity
• Weight: 21 lbs / 9.55 kg
