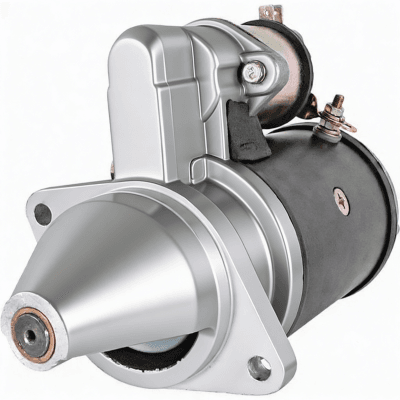

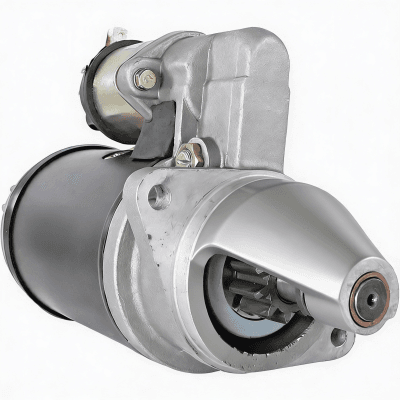

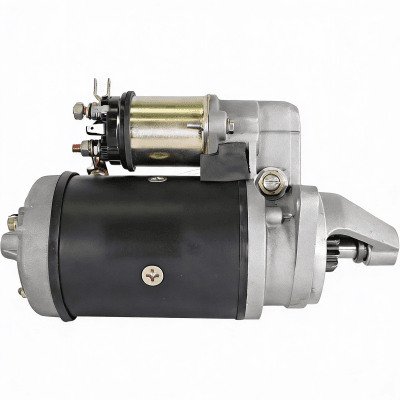

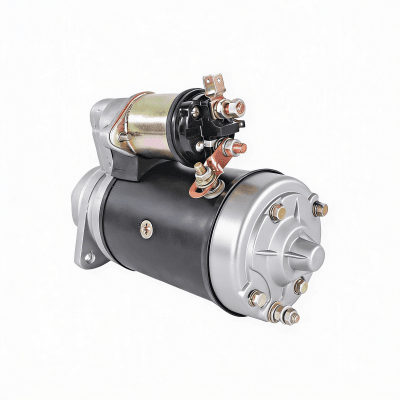

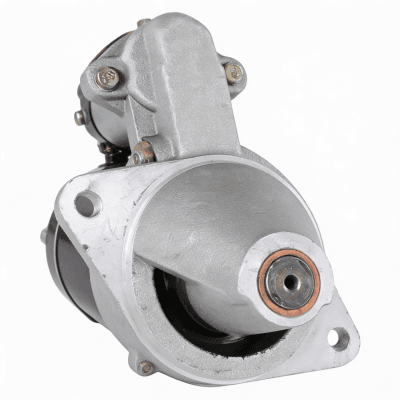

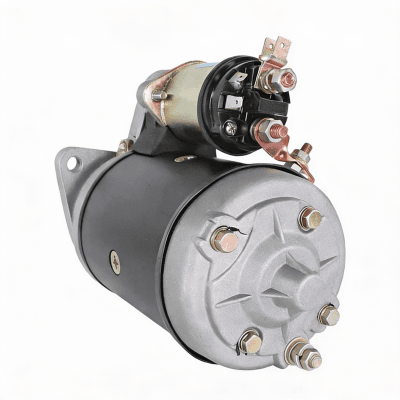

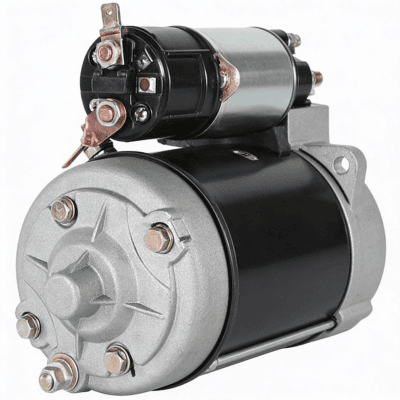

2.1Kw Starter Motor Compatible With Land Rover Adu3781 Leyland S122 Lucas 26371 26400 27431 12V

LUCAS OEM PART NUMBERS:
• 26371
• 26371A/D
• 26371E/F
• 26400
• 26400A
• 26400A/B
• 26400B
• 26400D
• 27431
• 27431A

CROSS-REFERENCE PART NUMBERS:
• Lucas Electrical Europe: LRS00261
• Land Rover: ADU3781
• Rover: ADU3781
• Leyland Auto: S122
• Case: E36646
• Delco: DRS3423
• Prestolite: 20500261
• Valeo: VS178, VS474

SPECIFICATIONS:
• Type: Starter Motor
• Unit Series: Lucas M45G
• Starter Type: DD (Direct Drive)
• Voltage: 12V
• Power: 2.1kW (2.81HP)
• Rotation: Clockwise (CW)
• Teeth: 10
• Gear OD: 1.441in (36.6mm)
• Length: 12.402in (315mm)
• Mounting Ear 1: 10.4mm Unthreaded
• Mounting Ear 2: 10.4mm Unthreaded
• Mounting Ear Center-to-Center: 5.004in (127.1mm)
• Registry OD: 3.528in (89.6mm)
• B+ Stud: M8-1.25
• S Terminal: Spade
• Weight: 30 lbs

FITS EQUIPMENT:
• Case International Maxi-Sneaker Trencher 1.8L Diesel (1976-2001)
• LDV Sherpa Van 1.8L Diesel (1974-1984)
• Leyland DAF 1.5L 4-Cylinder Diesel EnginesPRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
CASE INTERNATIONAL TRENCHERS:

MAXI-SNEAKER TRENCHER:
• Case International Maxi-Sneaker 1.8L Leyland Diesel - 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987
• Case International Maxi-Sneaker 1800cc Leyland Diesel - 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001

LDV / LEYLAND VEHICLES:

LDV SHERPA VAN:
• LDV Sherpa 1.8L Diesel Van - 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984
• Leyland Sherpa 1.8L B-Series Diesel - 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984
• Morris Sherpa 1.8L Diesel - 1978, 1979, 1980, 1981
• Freight Rover Sherpa 1.8L Diesel - 1981, 1982, 1983, 1984

LEYLAND DAF ENGINES:
• Leyland DAF 1.5L 4-Cylinder Diesel - 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982
• Leyland DAF 1500cc 4-Cyl Industrial Engine - All Years

INDUSTRIAL APPLICATIONS:

CONSTRUCTION EQUIPMENT:
• Trenchers
• Compact excavators
• Industrial diesel equipment

COMMERCIAL VEHICLES:
• Panel vans
• Delivery vans
• Light commercial vehicles
• Chassis cab applications
