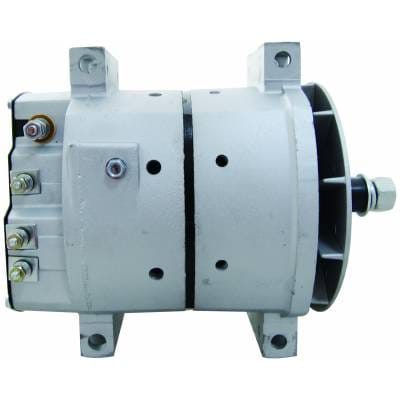

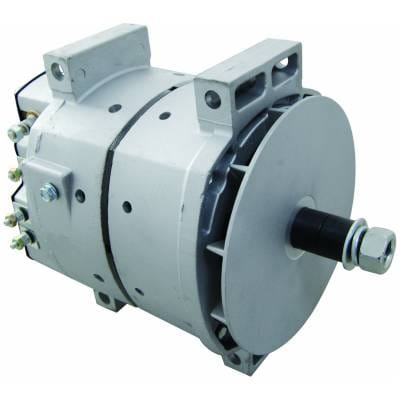

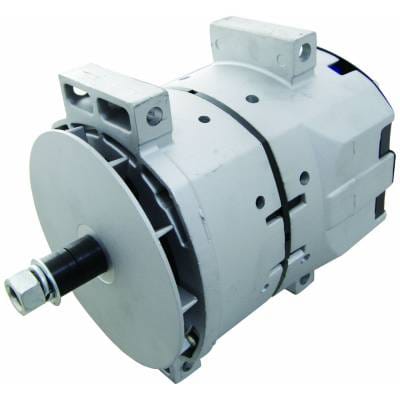

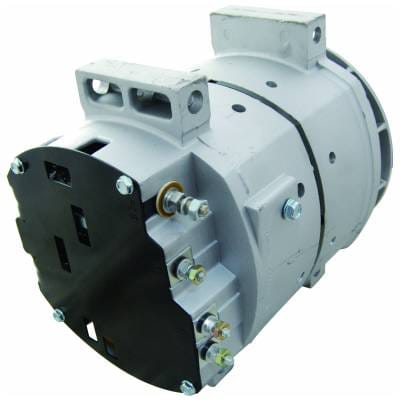

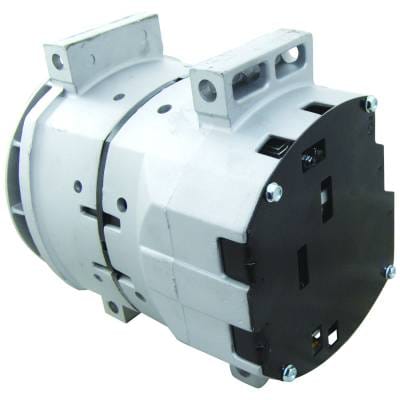

170 Amp Alternator Compatible With 1997-2007 Volvo Vnm Wa Wc Wg Wh Wi Wx Series Cummins Ism Sterling

OEM PART NUMBERS:
• Delco: 8600127 / 8600203 / 8700047 / 8600248 / 8600367 / 8700067
• Volvo/Mack: 21069746 / 21076610 / 21248989 / 85110757
• Denso: 101211-8390 / 1012118390 / 101211-8410 / 1012118410

SPECIFICATIONS:
• Unit Type: Delco 36SI Brushless
• Voltage: 12V
• Amperage: 170A
• Rotation: Bi-Directional
• Mount Type: Pad Mount
• Fan: External / Dual Internal Fan (DIF)
• Regulator: Internal
• B+ Terminal: 1/4-28
• Polarity: Negative Ground
• Pad Span Length: 4.97in / 126.24mm
• Mounting Ear Holes: 11mm / 12.7mm Unthreaded
• Mounting Ear Thickness: 3.15in / 80mm
• Remote Sense: 180 Ohm Resistor
• Weight: 27.7 lbs / 12.59 kg
• Condition: New

APPLICATION:
• Sterling A-Line A9500/AT9500 (1999-2007)
• Sterling Condor Cummins ISL/ISM/ISX (2001-2005)
• Sterling L-Line 7500/8000/8500/9500 (2001-2007)
• Sterling Silver Star Series (1999-2001)
• Volvo VHD/VNM/WA/WC/WG/WH/WI/WX Series (1997-2003)
• Western Star All Models (1999-2007)
• Engines: Cat C-11/C-13/C-15/C-16, Cummins ISL/ISM/ISX, DD 60 Series, Mercedes MBE4000

36SI Alternator - Volvo VNM WA WC WG WH WI WX Series
12V 170A alternator for Volvo VNM, VHD, and WA/WC/WG/WH/WI/WX series with Cummins ISM engines. Also fits Sterling A-Line and Silver Star trucks. Delco 36SI pad mount with bi-directional rotation and brushless design for extended life. Replaces 8700047, 8600248, Volvo 21076610, 21069746.PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
STERLING MEDIUM & HEAVY-DUTY TRUCKS:
• A-Line A9500/AT9500 Caterpillar C-11/C-13 (2004-2007)
• A-Line A9500/AT9500 Caterpillar C-15/C-16 (2001-2007)
• A-Line A9500/AT9500 Cummins ISM/ISX (2001-2003)
• A-Line A9500/AT9500 DD 60 Series (1999-2007)
• A-Line A9500/AT9500 Mercedes MBE4000 (2003-2007)
• Condor Cummins 8.9L ISL (2001-2005)
• Condor Cummins ISM/ISX (2001-2005)
• L-Line 7500/8000/8500/9500 Caterpillar C-11/C-13 (2005-2007)
• L-Line 7500/8000/8500/9500 Caterpillar C-15/C-16 (2001-2007)
• L-Line 7500/8000/8500/9500 DD 60 Series (2001-2007)
• L-Line 7500/8000/8500/9500 Mercedes MBE4000 (2003-2007)
• Silver Star Series DD 60 Series (1999-2001)

VOLVO MEDIUM & HEAVY-DUTY TRUCKS:
• VHD Series Cummins ISM (2001-2003)
• VNM Series Cummins ISM (1997-2003)
• WA/WC/WG/WH/WI/WX Series Cummins ISM (1997-2001)

WESTERN STAR MEDIUM & HEAVY-DUTY TRUCKS:
• All Models Caterpillar C-13/C-15 (2001-2007)
• All Models Cummins ISM/ISX (2001-2003)
• All Models DD 60 Series (1999-2003)
• All Models Mercedes MBE4000 (2002-2007)

NOTE: Verify OEM part number before ordering.
