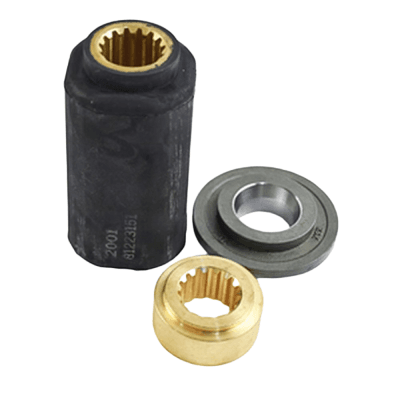

15 Tooth Spline Bronze Hub Kit Compatible With Suzuki Dt150 Dt175 Dt200 Dt225 Df150 Df200 Df250

PART NUMBERS:
• RBX-104B (Bronze Hub Kit)
• 17015304 (Solas)

SPECIFICATIONS:
• Product Type: Interchangeable Propeller Hub Kit
• Hub Material: Bronze Inner Splines
• Body Construction: All Rubber (No Plastic Parts)
• Splines: 15 Tooth
• Gearcase: 4-3/4 Inch (4.75")
• Deflection: 10 Degrees
• Engine Range: 150-300 HP
• Reusable: Yes (Even if Propeller Housing is Damaged)
• Condition: New

FITS SUZUKI OUTBOARD MODELS:
• DT 150-225 HP (2-Stroke) - 1986 and Newer - 15 Tooth Spline, 4-3/4" Gearcase
• DF 150-300 HP (4-Stroke) - 15 Tooth Spline, 4-3/4" Gearcase

FITS EVINRUDE / JOHNSON / BRP:
• 200 HP (4-Stroke) - 2004-2005 - 15 Tooth Spline, 4-3/4" Gearcase
• 225 HP (4-Stroke) - 2004-2005 - 15 Tooth Spline, 4-3/4" Gearcase

INTERCHANGES WITH:
• Mercury Flo-Torque Propellers
• Michigan Vortex Propellers
• RBX-104 (Aluminum Hub Version)PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
SUZUKI 2-STROKE OUTBOARD:

DT150 (150 HP):
• Suzuki DT150 150 HP 2-Stroke V6 - 15 Tooth Spline, 4-3/4" Gearcase - 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003

DT175 (175 HP):
• Suzuki DT175 175 HP 2-Stroke V6 - 15 Tooth Spline, 4-3/4" Gearcase - 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003

DT200 (200 HP):
• Suzuki DT200 200 HP 2-Stroke V6 - 15 Tooth Spline, 4-3/4" Gearcase - 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003

DT225 (225 HP):
• Suzuki DT225 225 HP 2-Stroke V6 - 15 Tooth Spline, 4-3/4" Gearcase - 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003

SUZUKI 4-STROKE OUTBOARD:

DF150 (150 HP):
• Suzuki DF150 150 HP 4-Stroke - 15 Tooth Spline, 4-3/4" Gearcase

DF175 (175 HP):
• Suzuki DF175 175 HP 4-Stroke - 15 Tooth Spline, 4-3/4" Gearcase

DF200 (200 HP):
• Suzuki DF200 200 HP 4-Stroke - 15 Tooth Spline, 4-3/4" Gearcase

DF225 (225 HP):
• Suzuki DF225 225 HP 4-Stroke - 15 Tooth Spline, 4-3/4" Gearcase

DF250 (250 HP):
• Suzuki DF250 250 HP 4-Stroke - 15 Tooth Spline, 4-3/4" Gearcase

DF300 (300 HP):
• Suzuki DF300 300 HP 4-Stroke - 15 Tooth Spline, 4-3/4" Gearcase

EVINRUDE / JOHNSON / BRP 4-STROKE:

200 HP (4-Stroke):
• Evinrude/Johnson 200 HP 4-Stroke - 15 Tooth Spline, 4-3/4" Gearcase - 2004, 2005

225 HP (4-Stroke):
• Evinrude/Johnson 225 HP 4-Stroke - 15 Tooth Spline, 4-3/4" Gearcase - 2004, 2005

NOTE:
• RBX-104B features bronze inner hub splines for superior corrosion resistance
• All models require 15 tooth spline with 4-3/4" gearcase
• Prop nut, tab washer, and cotter pin not included
• Verify part number and spline count before ordering to ensure fitment
