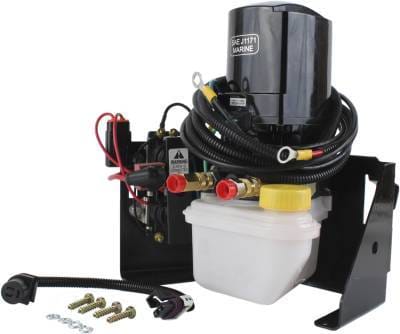

12V Tilt Trim Pump Assembly Compatible With Mercruiser Alpha One Gen Ii Bravo One Two Three 1983 And

OEM PART NUMBERS:
• Mercury Marine: 865380A25 (current part number)
• Mercury Marine: 865380A15 (superseded by 865380A25)
• Mercury Marine: 865380A05 (superseded)
• Mercury Marine: 865380A02 (superseded)
• Mercury Marine: 14336A28 (superseded)
• Mercury Marine: 14336A22 (superseded)
• Mercury Marine: 14336A17 (superseded)
• Mercury Marine: 14336A15 (superseded)
• Mercury Marine: 14336A9 (superseded)
• Mercury Marine: 14336A6 (superseded)
• Mercury Marine: 88183A12 (superseded)
• Mercury Marine: 88183A11 (superseded)
• Mercury Marine: 88183A6 (superseded)
• Mercury Marine: 96477A3 (superseded)

SPECIFICATIONS:
• Product Type: Complete Tilt Trim Pump Assembly
• Voltage: 12V DC
• Pump Style: Oildyne
• Hose Fittings: Quick Connect
• SAE J1171 Marine Ignition Protection Certified
• Weight: 20 lbs
• Condition: New

ASSEMBLY INCLUDES:
• Tilt Trim Motor
• Oildyne Hydraulic Pump
• Fluid Reservoir
• Steel Mounting Bracket
• Solenoids
• Wiring Harness with Connector
• Mounting Hardware

APPLICATION:
• MerCruiser Alpha One / Gen II (1983 and Later)
• MerCruiser Bravo One/Two/Three and variants
• MerCruiser Blackhawk / SportMaster
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
MERCRUISER STERNDRIVE - 1983 AND LATER:
• MerCruiser Alpha One (1983 and Later)
• MerCruiser Alpha One Gen II (1983 and Later)
• MerCruiser Bravo One / Bravo One X / Bravo One XR / Bravo One XZ
• MerCruiser Bravo Two / Bravo Two X
• MerCruiser Bravo Three / Bravo Three X
• MerCruiser Blackhawk
• MerCruiser SportMaster
• MerCruiser Integrated Transom

MERCRUISER ENGINES:
• MerCruiser 2.0L and all larger displacements with Alpha/Bravo drives
• MerCruiser 377 Bravo (2000-2004)
• MerCruiser 502 Bravo (1999-2006)
• MerCruiser 540 Bravo (1999-2001)
• MerCruiser 575 Bravo (2000-2005)

ASSEMBLY INCLUDES:
• Tilt Trim Motor (SAE J1171 Certified)
• Oildyne Style Hydraulic Pump
• Fluid Reservoir
• Steel Mounting Bracket
• Solenoids
• Wiring Harness with Plug-In Connector
• Mounting Hardware (Screws and Washers)

FITMENT NOTES:
• Fits MerCruiser sterndrives from 1983 and later
• Oildyne style pump with quick connect hose fittings
• Replaces older style trim pumps
• Does not include hoses
• Verify OEM part number from your original unit before ordering
