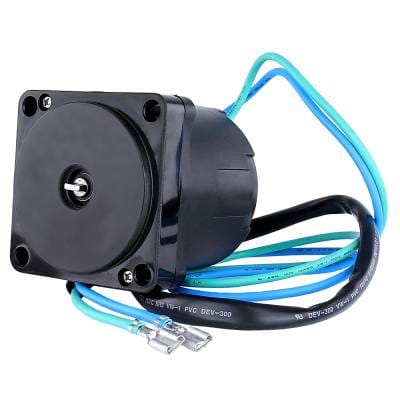

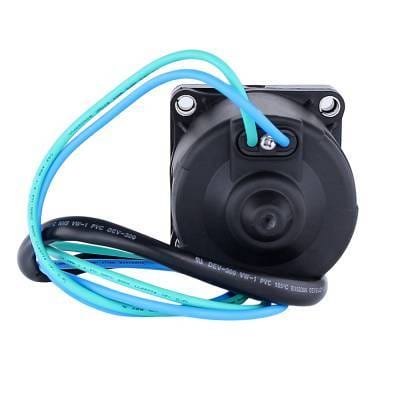

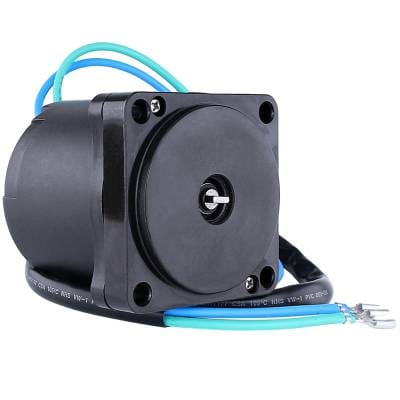

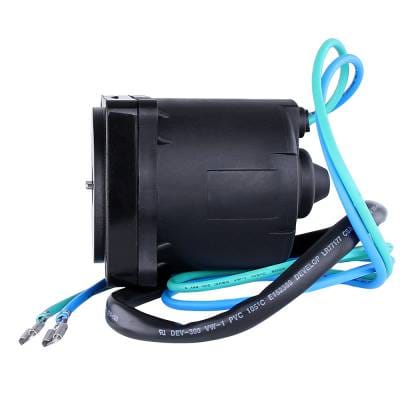

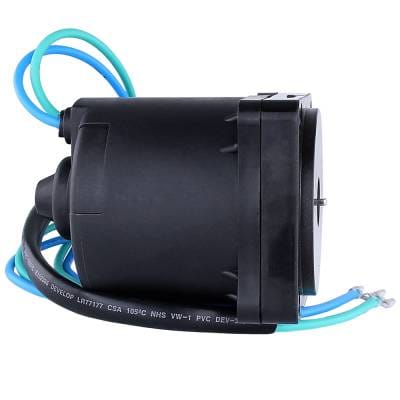

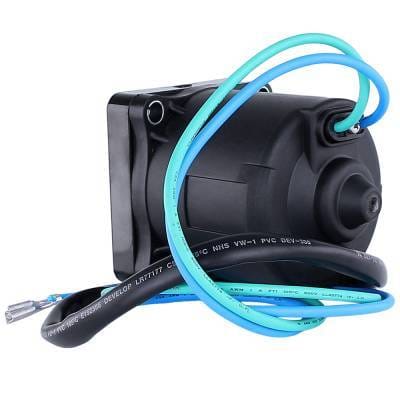

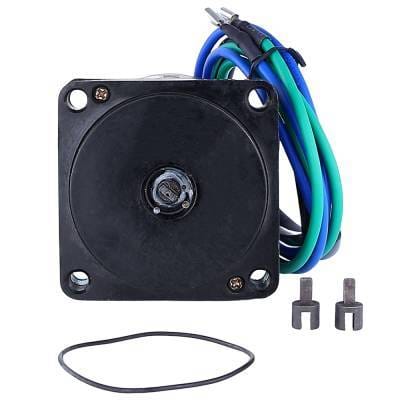

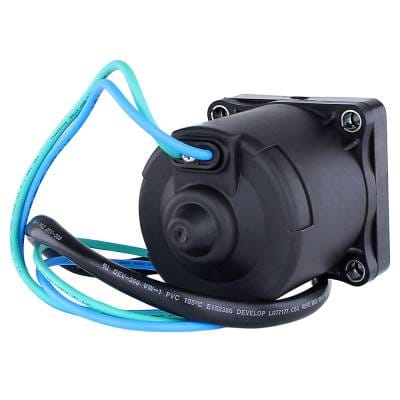

12V Tilt Trim Motor Compatible With Omc Evinrude Johnson 115Hp 150Hp 175Hp 200Hp 225Hp Outboard Omc

OEM PART NUMBERS:
• OMC: 434495, 434496, 438529, 438531, 5005374, 5005376
• Sierra Marine: 18-6780

SPECIFICATIONS:
• Voltage: 12V DC
• Rotation: Reversible (Bi-Directional)
• Wire Configuration: 2-Wire with Female Spade Terminals
• Field Housing OD: 76mm / 2.992"
• Overall Length: 103mm / 4.055"
• Shaft OD: 8mm / 0.315"
• Shaft: 2.6mm Drive Tang
• Mounting: 4 Holes (7mm Unthreaded)
• Includes Shaft Adapter for Hollow Shaft Applications
• Weight: 3.09 lbs / 1.40 kg
• Condition: New

APPLICATION:
• Evinrude 50-225 HP Outboard (1991-Up)
• Johnson 50-225 HP Outboard (1991-Up)
• OMC 50-225 HP Outboard (1991-Up)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
EVINRUDE OUTBOARD:
• All Models 50 HP 3-Cylinder (1995-Up)
• All Models 60 HP V4 (1995-Up)
• All Models 60 HP (1991-Up)
• All Models 70 HP (1991-Up)
• All Models 90 HP (1991-Up)
• All Models 115 HP (1991-Up)
• All Models 120 HP (1991-1994)
• All Models 130 HP (1991-Up)
• All Models 140 HP (1991-1994)
• All Models 150 HP (1991-Up)
• All Models 175 HP (1991-Up)
• All Models 200 HP (1991-Up)
• All Models 225 HP (1991-Up)

JOHNSON OUTBOARD:
• All Models 50 HP 3-Cylinder (1995-Up)
• All Models 60 HP V4 (1995-Up)
• All Models 60 HP (1991-Up)
• All Models 70 HP (1991-Up)
• All Models 90 HP (1991-Up)
• All Models 115 HP (1991-Up)
• All Models 120 HP (1991-1994)
• All Models 130 HP (1991-Up)
• All Models 140 HP (1991-1994)
• All Models 150 HP (1991-Up)
• All Models 175 HP (1991-Up)
• All Models 200 HP (1991-Up)
• All Models 225 HP (1991-Up)

NOTE: 2-wire configuration. Verify OEM part number from your original unit before ordering to ensure proper fitment.
