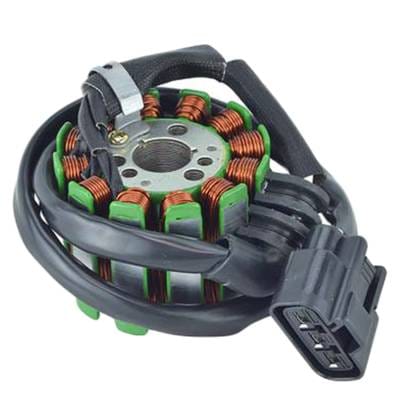

12V Stator Compatible With Yamaha Yzf-R1 998Cc 2004-2008 Fz1 Fzs1 1000 2006-2015 Fz8 Fazer 779Cc

OEM PART NUMBERS:
• Yamaha: 5VY-81410-00-00 / 5VY814100000 (original)
• Yamaha: 2D1-81410-00-00 / 2D1814100000
• Yamaha: 2D1-81410-01-00 / 2D1814100100
• Yamaha: 2D1-81410-10-00 / 2D1814101000 (current)
• Yamaha: 2D1-81410-00-01 / 2D1814100001 (variant)

SPECIFICATIONS:
• Type: Stator
• Voltage: 12V
• Lam Stack ID: 0.748" / 19mm
• Lam Stack OD: 2.709" / 68.8mm
• Lam Stack Thickness: 2.02" / 51.3mm
• Weight: 2.03 lbs / 0.92 kg
• Condition: New

YAMAHA SPORT MOTORCYCLE APPLICATIONS:
• YZF-R1 998cc Inline-4 DOHC 16V Liquid-Cooled Supersport (2004-2008)
• FZ1 / FZ1-N Fazer 998cc Inline-4 DOHC 20V Liquid-Cooled (2006-2015)
• FZS1 998cc (2015)
• FZ8 / FZ8-N Fazer 779cc Inline-4 DOHC 16V Liquid-Cooled (2011-2013)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
YAMAHA YZF-R1 (2004-2008):
• YZF-R1 998cc Inline-4 DOHC 16-Valve Liquid-Cooled (2004-2005)
• YZF-R1 998cc Inline-4 DOHC 16-Valve Liquid-Cooled w/YCC-T & YCC-I (2006-2008)
• Bore: 77.0mm / Stroke: 53.6mm / Compression: 12.7:1
• 171HP (2004-2005) / 180HP (2006-2008)
• Fuel Injected / 6-Speed Transmission

YAMAHA FZ1 / FZ1-N FAZER (2006-2015):
• FZ1 998cc Inline-4 DOHC 20-Valve (5-Valve/Cyl) Liquid-Cooled (2006-2015)
• FZ1-N Fazer 998cc Inline-4 DOHC 20-Valve Liquid-Cooled (2006-2015)
• FZS1 998cc (2015 — FZ1 rebadged)
• Bore: 77.0mm / Stroke: 53.6mm / ~150HP
• Detuned YZF-R1 engine platform
• Fuel Injected / 6-Speed Transmission

YAMAHA FZ8 / FZ8-N FAZER (2011-2013):
• FZ8 779cc Inline-4 DOHC 16-Valve Liquid-Cooled (2011-2013)
• FZ8-N Fazer 779cc Inline-4 DOHC 16-Valve Liquid-Cooled (2011-2013)
• Bore: 68.0mm / Stroke: 53.6mm / ~106HP
• Fuel Injected / 6-Speed Transmission
