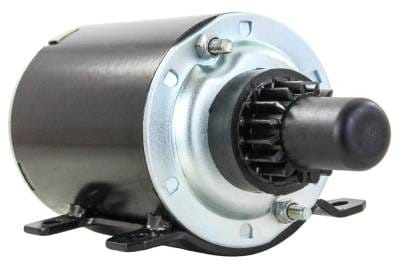

12V Starter Motor Compatible With Tecumseh Air Cooled Engines Hm70-100 Ovm120 Ovxl120 Tvm170-220

OEM PART NUMBERS:
• Tecumseh: 33202 / 33605 / 35763 / 35763A / 35876 / 36463 / 36680 / 36880
• John Deere: AM30931
• Johnson Electric: 5717340 / SM57173

SPECIFICATIONS:
• Type: PMDD (Permanent Magnet Direct Drive)
• Voltage: 12V
• Rotation: CCW (Counter-Clockwise)
• Teeth: 16
• Gear/Pinion OD: 32.6mm / 1.283in
• Mounting Holes: 4x 7.0mm Unthreaded
• Field Case Length: 93.7mm / 3.689in
• Shaft Diameter: 10.1mm / 0.398in
• Weight: 5.105 lbs / 2.32 kg
• Condition: New

APPLICATION:
• Tecumseh HM 70-100, HMSK90 Air Cooled
• Tecumseh OVM 120, OVXL 120/125 Air Cooled
• Tecumseh TVM 170-220, TVXL 170-220 Air Cooled
• Tecumseh OHM90-120, OHSK90-130, OH318/358, OHV125/OHV13
• Tecumseh VM100, H80
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
TECUMSEH HM SERIES:
• HM 70/80/90/100 Air Cooled
• HM80-100, HMSK90

TECUMSEH OVM / OVXL SERIES:
• OVM 120 Air Cooled
• OVXL 120 Air Cooled
• OVXL 125 (Spec: 203006C, 203032C, 203036B, 203040B, 203040C, 203042B, 203043B, 203046C, 203039B)

TECUMSEH TVM / TVXL SERIES:
• TVM 170/195/220 Air Cooled
• TVXL 170-220 Air Cooled

TECUMSEH OHM / OHSK / OH / OHV SERIES:
• OHM90, OHM100-120
• OHSK90-130
• OH318, OH358
• OHV125, OHV13 (Spec: 203208A, 203209A)

TECUMSEH OTHER:
• VM100, H80

NOTE: Verify OEM part number before ordering to ensure proper fitment.
