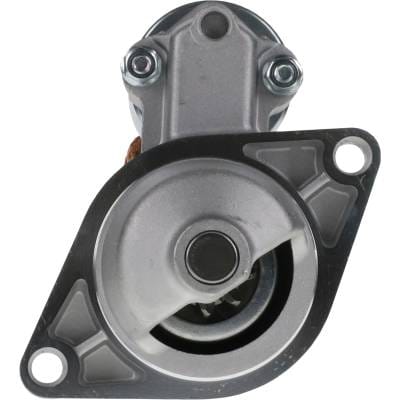

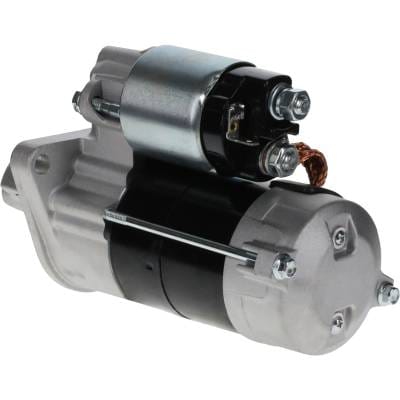

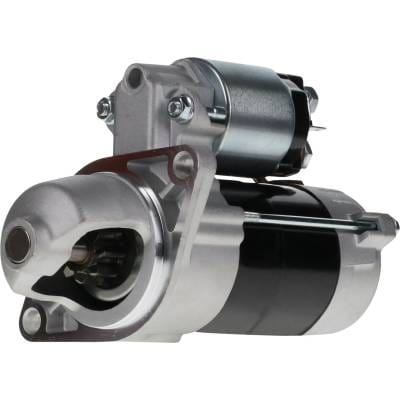

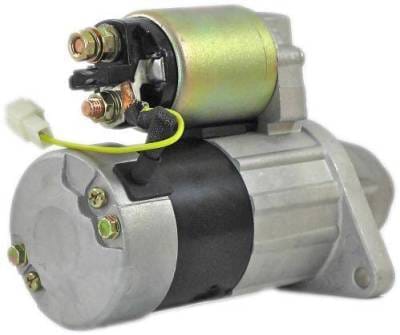

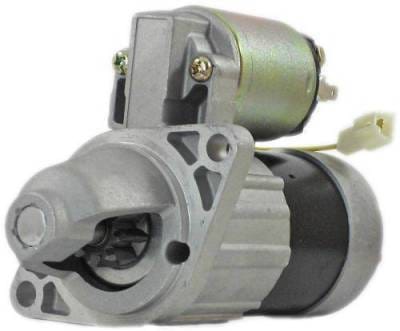

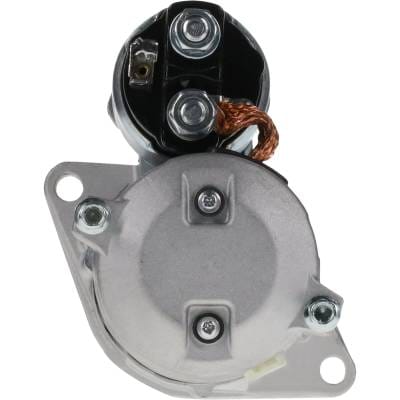

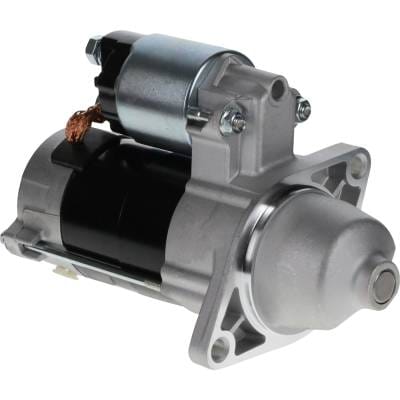

12V Starter Motor Compatible With Kubota Zd18 Zd21 G2160 Tg1860 D722 D782 Diesel 18Hp 21Hp

OEM PART NUMBERS:

KUBOTA:
• 1G023-63010
• 1G023-63011
• 1G023-63012
• 67980-31150
• 67980-31151
• 67980-31152
• K3511-81410
• K3511-81411
• 6A320-59212

NIPPONDENSO / DENSO:
• 228000-7480
• 228000-7481
• 228000-5910
• 228000-5911
• 228000-7090
• 228000-7091
• 9722809-591
• 9722809-748

ATLANTIC QUALITY PARTS:
• 1700-0156
• 1900-0112

SPECIFICATIONS:
• Voltage: 12V
• Type: PMGR (Permanent Magnet Gear Reduction)
• Power: 1.0 kW / 1.34 HP
• Rotation: CW (Clockwise)
• Teeth: 9
• Gear OD: 29mm / 1.142"
• Length: 7.953" / 202mm
• Mounting: 10.0mm ID Unthreaded (2 ears)
• Weight: 7.66 lbs / 3.48 kg

NOTE: Also available as OEM Bosch 18417OEMPRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
STARTER MOTOR - KUBOTA DIESEL EQUIPMENT APPLICATIONS:

KUBOTA ZERO TURN MOWERS:
• ZD18 - Kubota D722 18HP Diesel - Denso System
• ZD18F - Kubota D722 18HP Diesel
• ZD21 - Kubota D782 21HP Diesel - Denso System
• ZD21F - Kubota D782 21HP Diesel
• ZD28 - Diesel
• ZD221 - Kubota RCK54
• ZD321 / ZD321N
• ZD323 - Kubota 23HP
• ZD326
• GZD15, GZD21

KUBOTA GARDEN TRACTORS:
• G2160 - Kubota D782 21HP Diesel - Denso System
• G2160-R48S - Kubota D782 21HP Diesel
• G2160 (AU), G2160 (DS)
• G18, G18HD, G21HD, G21LD
• GR2100 / GR2100EC2 - 21HP Diesel
• GR2110
• GR2120 / GR2120 (B) / GR2120AU

KUBOTA LAWN TRACTORS:
• TG1860 - Kubota D722E-GX 18HP Diesel (Later Models)
• TG1860AU

KUBOTA FRONT MOWERS:
• F2260 / F2260-R - Kubota D1005-EFM 22HP Diesel
• F2560 / F2560-R / F2560-E - Kubota D1105-EFM 25HP Diesel
• F3060 / F3060-R - Kubota V1305-FM 30HP Diesel

KUBOTA SUB-COMPACT TRACTORS:
• BX1500D - Kubota RCK48-15B, RCK54-15B

DIESEL ENGINES:
• D722 - 18HP 3-Cylinder
• D782 - 21HP 3-Cylinder
• D722E-GX - 18HP
• D1005-EFM - 22HP
• D1105-EFM - 25HP
• V1305-FM - 30HP
