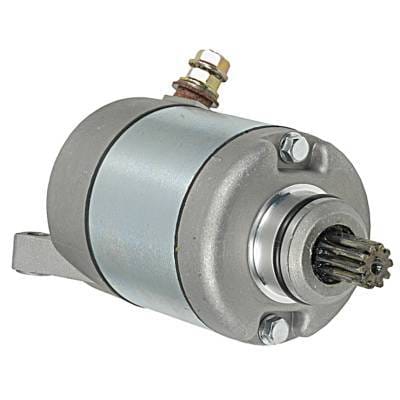

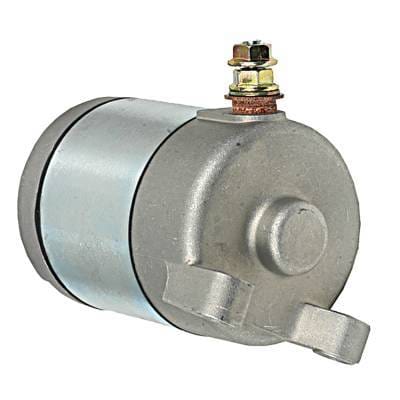

12V Starter Motor Compatible With Honda Trx450er Electric Start Sport Atv 449Cc Unicam Sohc 4-Stroke

OEM PART NUMBERS:
• Honda: 31200-HP1-601 / 31200HP1601
• Mitsuba: SM14268 / SM-14268

SPECIFICATIONS:
• Type: PMDD (Permanent Magnet Direct Drive) / Unit Type: Mitsuba
• Voltage: 12V / Rotation: CW (Clockwise) / Teeth: 10
• Gear OD: 12.4mm / 0.488in
• Mounting: Ear 1 - 6mm Unthreaded / Ear 2 - 7mm Unthreaded
• Weight: 2.06 lbs (0.93 kg) / Condition: New

HONDA TRX450ER APPLICATION:
• TRX450ER Electric Start 449cc Unicam SOHC Liquid-Cooled (2006-2009, 2012-2014)
• No 2010-2011 models produced
• Fits Electric Start (ER) model only — NOT kick-start TRX450RPRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
HONDA ATV — TRX450ER (ELECTRIC START):
• TRX450ER Electric Start 449cc Unicam SOHC 4-Valve Liquid-Cooled Single-Cylinder 4-Stroke (2006)
• TRX450ER Electric Start 449cc Unicam SOHC 4-Valve Liquid-Cooled Single-Cylinder 4-Stroke (2007)
• TRX450ER Electric Start 449cc Unicam SOHC 4-Valve Liquid-Cooled Single-Cylinder 4-Stroke (2008)
• TRX450ER Electric Start 449cc Unicam SOHC 4-Valve Liquid-Cooled Single-Cylinder 4-Stroke (2009)
• TRX450ER Electric Start 449cc Unicam SOHC 4-Valve Liquid-Cooled Single-Cylinder 4-Stroke (2012)
• TRX450ER Electric Start 449cc Unicam SOHC 4-Valve Liquid-Cooled Single-Cylinder 4-Stroke (2013)
• TRX450ER Electric Start 449cc Unicam SOHC 4-Valve Liquid-Cooled Single-Cylinder 4-Stroke (2014)

NOTE:
• No 2010-2011 models produced — Honda did not manufacture TRX450ER in those years
• This starter fits TRX450ER (Electric Start) ONLY — does NOT fit TRX450R (kick-start only model)
• "ER" designation = Electric Start + Reverse
