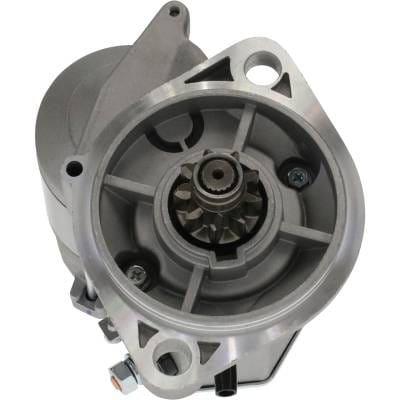

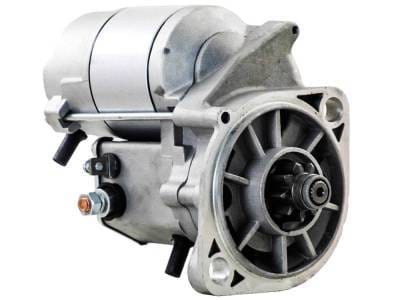

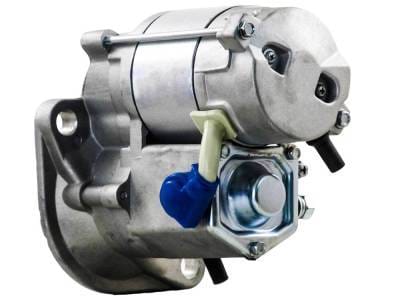

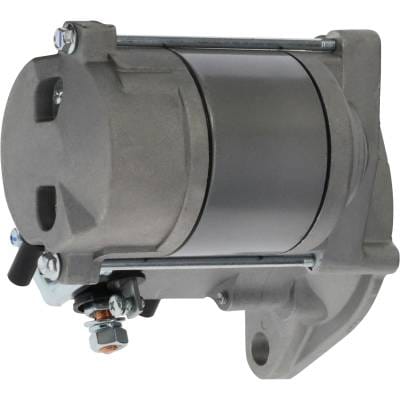

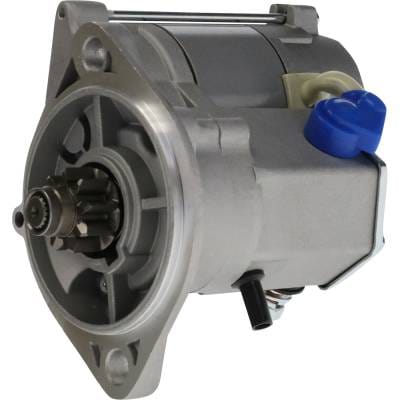

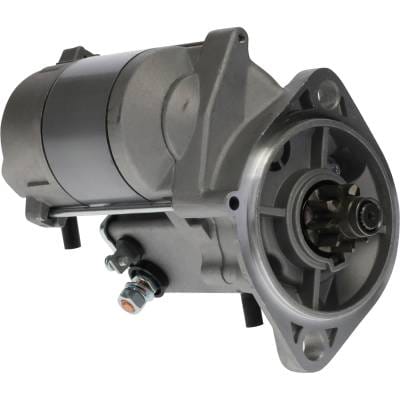

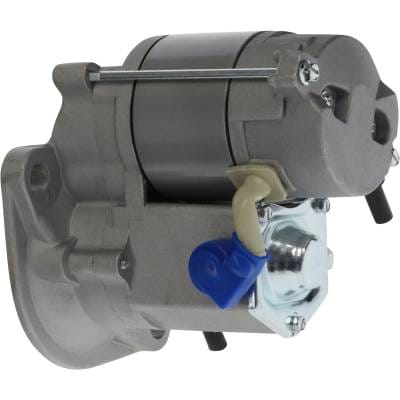

12V Starter Motor Compatible With Fd10 Fd14 Fd15 Fd18 Lift Truck Isuzu 4Fe1 Engine Clockwise Denso

OEM PART NUMBERS:
• Isuzu: 8941702050, 8941702051, 8970489660, 8970489662, 897048-9661, 897048-966-3
• Denso: 128000-1100, 228000-1130, 228000-1131, 228000-1132, 228000-1133

SPECIFICATIONS:
• Voltage: 12V
• Power: 1.4kW / 1.88HP
• Type: OSGR
• Unit Type: Denso
• Rotation: CW (Clockwise)
• Tooth Count: 9
• Gear OD: 31.9mm / 1.256"
• Mounting Ear 1: 13.5mm ID Unthreaded
• Mounting Ear 2: 13.5mm ID Unthreaded
• Battery Studs: M8-1.25 Threaded
• Motor Studs: M8-1.25 Threaded
• Weight: 10.4 lbs / 4.73 kg
• Condition: New

APPLICATION:
• FD10 / FD14 / FD15 / FD18 Lift Trucks — Isuzu 4FE1
• FD9 / FD20L-10 / FD25L-10 Lift Trucks — Isuzu 4FE1
• 12V 1.4kW OSGR, 9-tooth, CW rotation
• Dual 13.5mm unthreaded mounting ears

12V Starter Motor — FD10/FD14/FD15/FD18 Lift Trucks
12 volt 1.4kW starter motor for FD10, FD14, FD15, and FD18 lift trucks with Isuzu 4FE1 engine. Denso OSGR design with 9-tooth drive pinion, clockwise rotation. Dual 13.5mm unthreaded mounting ears with M8-1.25 battery and motor studs. 31.9mm gear OD. Direct replacement for Denso 128000-1100, 228000-1130 and Isuzu 8941702050, 8941702051, 8970489660.PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
KOMATSU LIFT TRUCKS:
• FD9 Isuzu 4FE1 Engine
• FD10 Isuzu 4FE1 Engine
• FD14 Isuzu 4FE1 Engine
• FD15 Isuzu 4FE1 Engine
• FD18 Isuzu 4FE1 Engine
• FD20L-10 Isuzu 4FE1 Engine
• FD25L-10 Isuzu 4FE1 Engine

TCM LIFT TRUCKS:
• FD9Z / FD10Z / FD14Z / FD15Z Isuzu 4FE1 Engine
• FD18Z / FD20Z / FD23Z / FD25Z Isuzu 4FE1 Engine

ISUZU INDUSTRIAL ENGINES:
• 3AB1 Engine — Agricultural and Industrial Applications
• 4FE1 Engine — Forklift and Material Handling

NOTE: Verify OEM part number from your original unit before ordering to ensure proper fitment.
