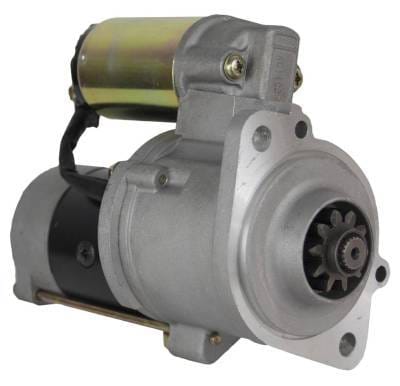

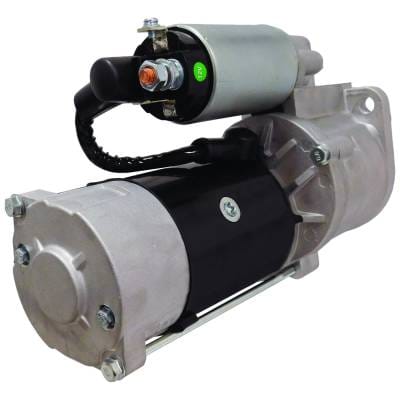

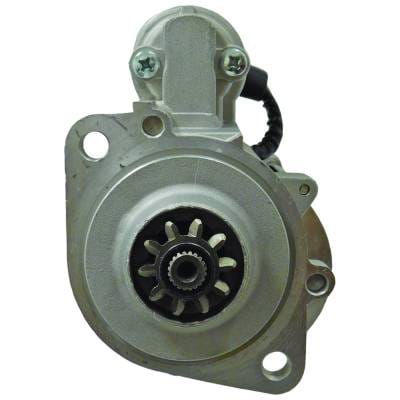

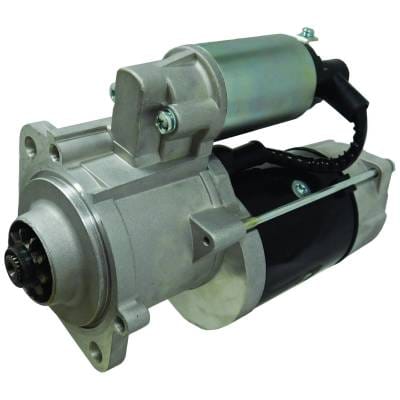

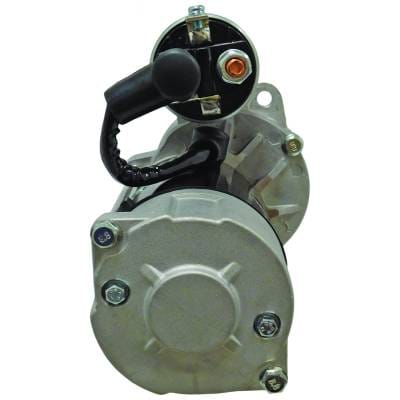

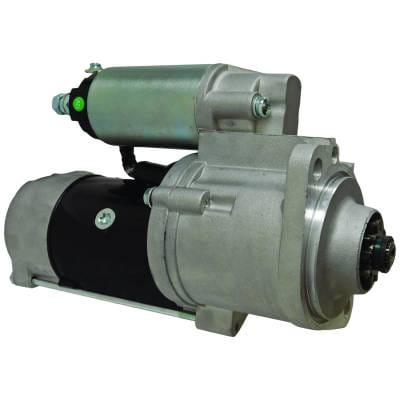

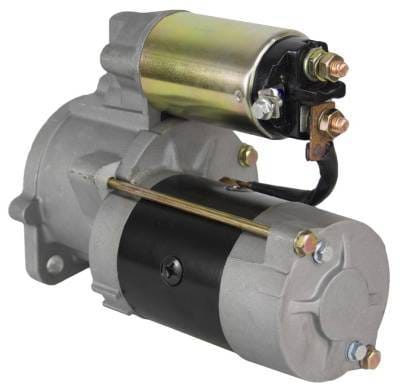

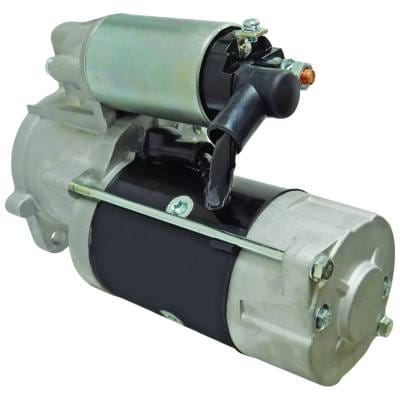

12V Starter Motor Compatible With Fd-20 Fd-20B-D Fd-20B-Ds Fd-20D Fd-25 Fd-25B-D Fd-25D Fd-35A

OEM PART NUMBERS:
• Mitsubishi: M3T67671 / M003T67671 / M3T67671ZC / M3T67672
• Mitsubishi: M2T62271 / M2T62272 / M002T62271 / M002T62272
• Mitsubishi: M2T74371 / M2T74372 / M002T74371 / M002T4371
• Mitsubishi: M2TS0071 / M2TS0071A / M002TS0071 / M002TS0072 / M2T63471
• Mitsubishi Industrial: 32A66-00100 / 32A66-00101 / 32A66-00300 / 32A66-00301
• Mitsubishi Industrial: 32A66-00600 / 32A66-01100 / 32A66-00400
• Caterpillar: 103-9827 / 1039827 / CA1039827
• Clark: 920670
• Pel Job: PJ7416581 / PJ7418059
• Volvo: VOE9007418059
• Bosch: 0986042420

SPECIFICATIONS:
• Voltage: 12V
• Type: OSGR
• Power: 2.2-3 kW
• Rotation: CW (Clockwise)
• Tooth Count: 10
• Gear OD: 38.4-40mm
• Mounting Ears: Unthreaded
• Condition: New

APPLICATION:
• Caterpillar Loaders 906/908/236B-287B/904B/904H (S4S-DT / S4Q2-T)
• Caterpillar Excavators 304C CR / 305C CR (S4Q2)
• Caterpillar Forklifts DP 18K-35K (S4Q2 / S4S)
• Mitsubishi Industrial Lift Trucks FD-20/25/35A (S4E / S4S)
• Mitsubishi Forklifts FD10-FD35A (S4Q2 / S4S)
• Mitsubishi Combines VG080/VG60/VR90/VY50/VY60
• Mitsubishi Tractors GX50/MKM45-MKM75
• Hyundai Excavators R75-7 / R95W-3
• Jungheinrich Forklifts DFG 316-435
• Pel Job EB706 / ED750 (S4S-61ES)
• Volvo EC70/EC70V/EW70/EW70V (S4S)
• Terex TC48/TC60, Terex-Schaeff HR18/HR20 (S4Q2-61KL)
• Sole Marine G-20M/G-20T/G-35M/G-35T/Mini 62/74
• Ranger Forklifts G30/G35/G40 (S4S)
• New Holland / O&K RH 1.48 (S4Q2-Y162KL)
• Landtrac 530 DTC / Clark Forklifts
• Zeppelin ZR 45 (S4Q2-61KL)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
PEL JOB MINI / COMPACT EXCAVATORS:
• EB706 / EB706 C / EB706 CV / EB706 P / EB706 PV S4S-61ES

PEL JOB DUMPERS:
• ED750 S4S-61ES

RANGER FORKLIFTS:
• G 30/2 H / G 30/4x4 H / G 35/2 H / G 35/4 H S4S
• G 40/2 HK / G 40/4 HK S4S

SOLE MARINE ENGINES:
• G-20M-15 / G-20T-15 S4Q
• G-35M-15 / G-35T-15 S4S
• Mini 62 S4Q / Mini 74 S4S

TEREX MINI / COMPACT EXCAVATORS:
• TC48 / TC60 S4Q2-61KL
• Terex-Schaeff HR18 / HR20 S4Q2-61KL

VOLVO EXCAVATORS:
• EW70 / EW70V S4S (Baumaschine)
• EC70 / EC70V S4S

CATERPILLAR LOADERS:
• 906 / 908 / 236B / 246B / 248B / 262B / 267B / 268B / 277B / 287B S4S-DT
• 904B / 904H S4Q2-T

CATERPILLAR MINI / COMPACT EXCAVATORS:
• 304C CR / 304CCR S4Q2
• 305C CR / 305CCR S4Q2-T

CATERPILLAR FORKLIFTS:
• DP 18 K S4Q2 / DP 20 / 20 K / 25 / 25 K / 30 / 30 K / 35 / 35 K S4S

EUROCOMACH:
• ES800 / ES800 TR S4S

HYUNDAI EXCAVATORS:
• R75-7 S4S / R95W-3 S4S-DT

JUNGHEINRICH FORKLIFTS:
• DFG 316 / 320 S4Q2
• DFG 425 S4S / DFG 430 / 435 S4S3.3

MITSUBISHI COMBINE HARVESTERS:
• VG080 S4S-DT / VG60 S4Q2-T11C / VR90 S4S-DT
• VY50 S4Q2-13C / VY60 S4Q2-T11C

MITSUBISHI TRACTORS:
• GX50 S4Q2 / MKM45 S4Q2 / MKM55 S4S / MKM65 S4S-D / MKM75 S4S-DT

MITSUBISHI FORKLIFTS:
• FD 15 K/N / FD 18 K/N / FD 20 CN/K/N/T S4Q2 / S4S
• FD 25 K/N/T / FD 30 K/N/T S4S
• FD10 / FD14 / FD15 / FD18 S4Q2 (Various Engine Variants)
• FD23 / FD30 / FD35A S4S

MITSUBISHI INDUSTRIAL LIFT TRUCKS:
• FD-20 / FD-20B-D / FD-20B-DS / FD-20D S4E / S4S
• FD-25 / FD-25B-D / FD-25B-DS / FD-25D / FD-25DS / FD-25T S4E / S4S
• FD-35A / FD-35A-D / FD-35AB-D / FD-35AT S4E / S4S

NEW HOLLAND / O&K EXCAVATORS:
• New Holland RH 1.48 S4Q2-Y162KL
• O&K RH1.48 S4Q2-Y162KL

LANDTRAC TRACTORS:
• 530 DTC (Mitsubishi Engine)

ZEPPELIN:
• ZR 45 S4Q2-61KL

CLARK FORKLIFTS:
• Various Models S4E / S4S

NOTE: Verify OEM part number before ordering.
