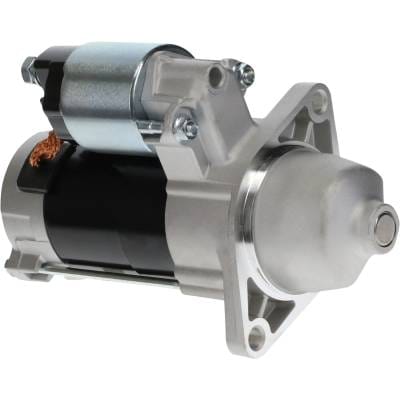

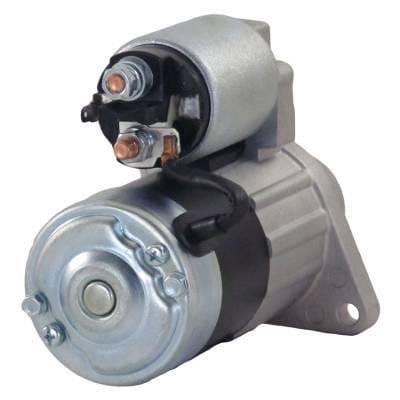

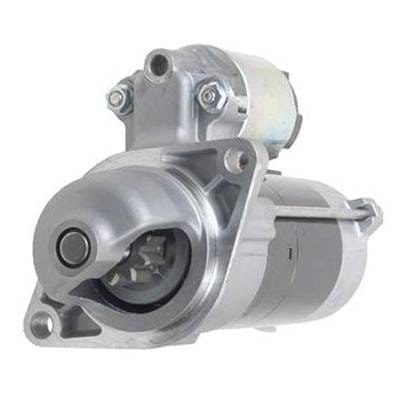

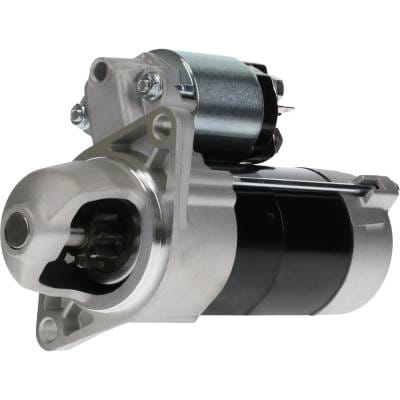

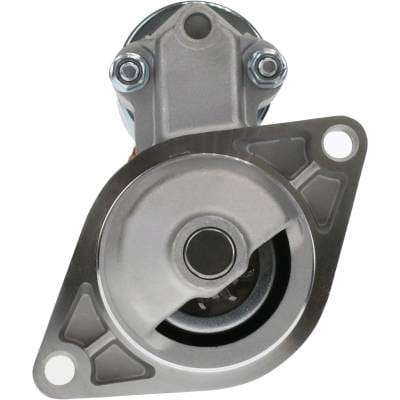

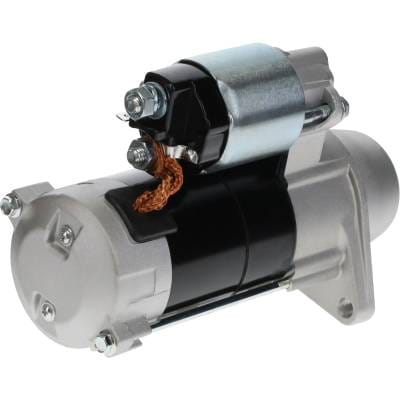

12V Starter Motor Compatible With F2000 F2100 G1800 G1900 Tg1860g T1760 Mower D662 D722 D950 Diesel

KUBOTA OEM PART NUMBERS:
• 15231-63012 / 1523163012
• 15231-63013 / 1523163013
• 15231-63014 / 1523163014
• 15231-63015 / 1523163015
• 15231-63016 / 1523163016
• 15271-63C13 / 1527163C13
• 16097-61361 / 1609761361
• 19293-63011 / 1929363011
• E7199-63010 / E719963010
• 15213-63013 / 1521363013
• 15231-03012 / 1523103012
• 70000-65424 / 7000065424
• 70000-73500 / 7000073500
• 77700-02584 / 7770002584

DENSO / NIPPONDENSO PART NUMBERS:
• 028000-7460 / 0280007460
• 028000-7461 / 0280007461
• 028000-7462 / 0280007462
• 028000-7470 / 0280007470
• 028000-7471 / 0280007471
• 028000-7472 / 0280007472
• 028000-9570 / 0280009570
• 9702809-746 / 9702809746
• 9702809-747 / 9702809747

BOBCAT PART NUMBERS:
• 3974246
• 3974246B

SPECIFICATIONS:
• Type: PMGR
• Voltage: 12 Volts
• Power: 1.2 KW
• Rotation: Clockwise (CW)
• Teeth: 9
• Pinion OD: 28.7mm / 1.13"
• Mounting Hole 1: 10.0mm Unthreaded
• Mounting Hole 2: 10.0mm Unthreaded
• Weight: 6.6 lbs / 3 kg
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
KUBOTA COMPACT TRACTORS:

B1550 SERIES (D850-5B Engine 17HP):
• B1550D - 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996
• B1550DT - 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996
• B1550DTEX - 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996
• B1550HSD - 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997
• B1550HSDT - 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997
• B1550HSE - 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996

B1750 SERIES (D950-5B Engine 20HP):
• B1750DT, B1750E, B1750HSD, B1750HSDT, B1750HSE - 1988-1996

B5100 SERIES (Z500-B Engine 12HP):
• B5100DT - 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995
• B5100E - 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986

B6000 SERIES (ZL600 Engine 14.5HP):
• B6000DT - 1973, 1974, 1975, 1976, 1977
• B6000DTC - 1975, 1976, 1977, 1978
• B6000E - 1978, 1979, 1980, 1981, 1982, 1983, 1984

B6100 SERIES (D650-B Engine 14HP):
• B6100D, B6100DT, B6100E - 1978, 1979, 1980, 1981, 1982, 1983, 1984
• B6100HSD, B6100HSE, B6100HST, B6100HSTE, B6100T - 1981, 1982, 1983, 1984

B6200 SERIES (D850-5B Engine 15HP):
• B6200DT, B6200E, B6200HSD, B6200HSDT, B6200HSE, B6200HST, B6200T - 1983-1994

B7100 SERIES (D750-B Engine 16HP):
• B7100DT, B7100E - 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984
• B7100HSD, B7100HSE, B7100HST, B7100HSTE - 1980, 1981, 1982, 1983, 1984

B7200/B8200 SERIES (D950 Engine 17-19HP):
• B7200DT, B7200E, B7200EGP, B7200HSD, B7200HSDT, B7200HSE - 1983-1990
• B8200DT, B8200E, B8200HSD, B8200HSE, B8200HST - 1981-1990

OTHER TRACTORS:
• B4200DT (Z600-A 12.5HP) - 1987-1996
• B5200DT, B5200E (D750 13HP) - 1983-1996
• B20, B20TL (D950AT 20HP)
• KC5 Carrier (ZH600B) - 1981

KUBOTA MOWERS:
• F2000 (D950-FM 20HP) - 1986-1994
• F2100, F2100E (D950-FM 21HP) - 1989-1995
• G1800, G1800S (D662 16HP) - 1989-1995
• G1900 (D722 18HP) - 1989-1995
• G6200H (D640 16HP) - 1986-1990
• T1760, T1760A, T1760B (WG510V 17HP Gas)
• TG1860G (WG590V 18HP Gas)

JACOBSEN:
• T-422D (D950 engine)

ONAN:
• 2L600 Engine - 1979+
• Marine 2L600

THOMAS EQUIPMENT:
• T83S Skid Steer (D850B) - 1996
