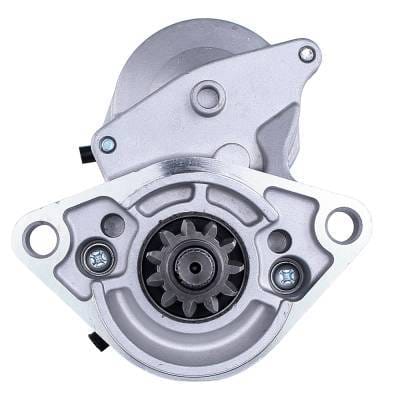

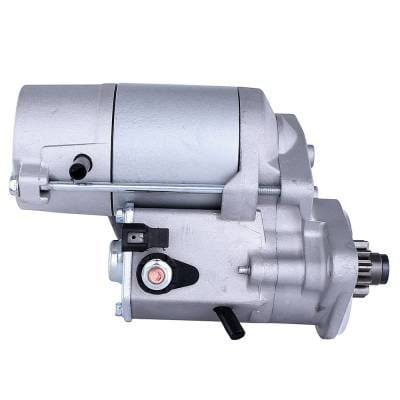

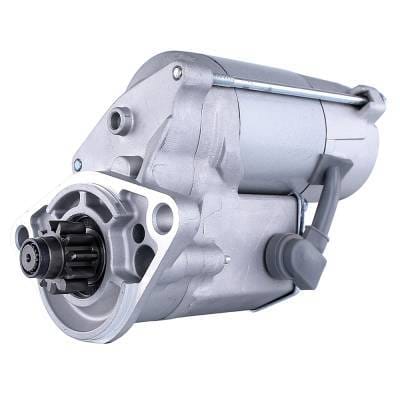

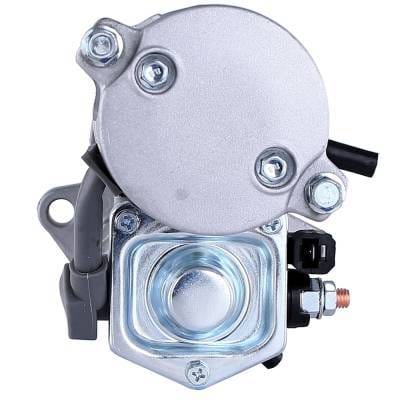

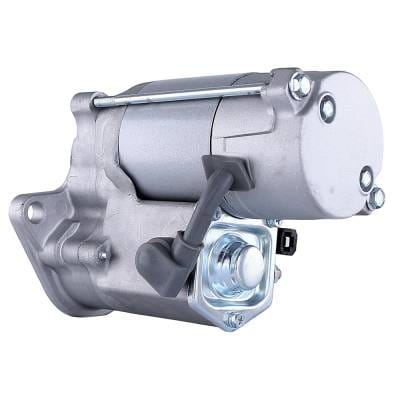

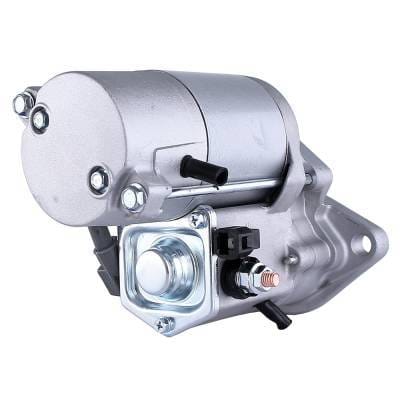

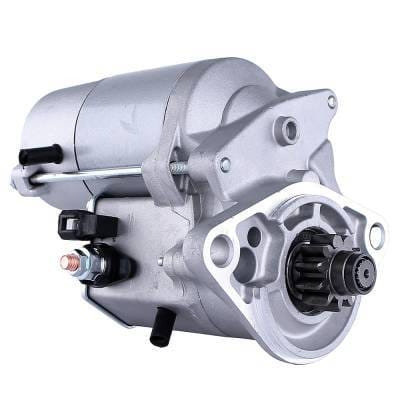

12V Starter Motor Compatible With D35 D40 D45 Dx34 Dx35 Dx40 Dx45 Dx48 Dx55 Dx60 Compact Tractor

OEM PART NUMBERS:
• SBA185086530 - Ford/New Holland OEM
• SBA185086520 - Ford/New Holland OEM
• SBA185086530GV - New Holland
• SBA185086530R - New Holland Reman
• SBA185086750 - New Holland
• 185086530 - Ishikawajima
• 185086520 - Ishikawajima
• 228000-5121 - Denso
• 228000-5122 - Denso
• 228000-5120 - Denso
• 228000-5123 - Denso
• 228000-2970 - Denso
• 428000-0180 - Denso
• 9722809-512 - Denso

SPECIFICATIONS:
• Voltage: 12V
• Output: 2.0KW
• Type: OSGR (Offset Gear Reduction)
• Rotation: Clockwise (CW)
• Teeth: 11
• Pinion OD: 34.3mm / 1.350in
• Mounting Hole 1: 11.7mm ID Unthreaded
• Mounting Hole 2: 11.7mm ID Unthreaded
• Weight: 11.945 lbs / 5.43 kg

FITS NEW HOLLAND SKID STEER LOADERS:
• L140 N843 1.5L 32HP, L150 N843H 1.5L 38HP, L160 N844 2.0L 46HP
• L170 N844T 2.0L 52HP Turbo, L175 N844T 2.0L 60HP Turbo
• L213, L215, L465, L565
• LS140, LS150, LS160, LS170
• LX465, LX485, LX565, LX665
• C175 Track Loader

FITS CASE SKID STEER LOADERS:
• Case 410, 420, 420CT
• Case SR130, SR150

FITS CASE IH D/DX SERIES COMPACT TRACTORS:
• D35 1.7L, D40 2.0L, D45 2.2L
• DX34 1.7L, DX35 1.7L, DX40 2.0L, DX45 2.2L, DX48 2.2L, DX55 2.2L, DX60 2.2L

FITS CASE IH FARMALL SERIES:
• Farmall 35, 40, 45, 50, 55, 60
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
NEW HOLLAND SKID STEER LOADERS - L SERIES:

L140:
• New Holland L140 N843 1.5L 32HP Diesel Skid Steer - 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015

L150:
• New Holland L150 N843H 1.5L 38HP Diesel Skid Steer - 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015

L160:
• New Holland L160 N844 2.0L 46HP Diesel Skid Steer - 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015

L170:
• New Holland L170 N844T 2.0L 52HP Turbo Diesel Skid Steer - 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015

L175:
• New Holland L175 N844T 2.0L 60HP Turbo Diesel Skid Steer - 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015

L213:
• New Holland L213 Skid Steer Loader Diesel - 2011, 2012, 2013

L215:
• New Holland L215 Skid Steer Loader Diesel - 2011, 2012, 2013

L465:
• New Holland L465 N843 Diesel Skid Steer - 1994, 1995, 1996, 1997, 1998, 1999

L565:
• New Holland L565 N844 Diesel Skid Steer - 1994, 1995, 1996, 1997, 1998, 1999

NEW HOLLAND SKID STEER LOADERS - LS SERIES:

LS140:
• New Holland LS140 N843 Diesel Skid Steer - 2000, 2001, 2002, 2003, 2004, 2005, 2006

LS150:
• New Holland LS150 N843H Diesel Skid Steer - 2000, 2001, 2002, 2003, 2004, 2005

LS160:
• New Holland LS160 N844 Diesel Skid Steer - 2000, 2001, 2002, 2003, 2004, 2005

LS170:
• New Holland LS170 N844T Diesel Skid Steer - 2000, 2001, 2002, 2003, 2004, 2005

NEW HOLLAND SKID STEER LOADERS - LX SERIES:

LX465:
• New Holland LX465 N843 Diesel Skid Steer (Engine S/N 46640-later) - 1994, 1995, 1996, 1997, 1998, 1999

LX485:
• New Holland LX485 N843 Diesel Skid Steer (Engine S/N 46640-later) - 1994, 1995, 1996, 1997, 1998, 1999

LX565:
• New Holland LX565 N844 Diesel Skid Steer (Engine S/N 57422-later) - 1994, 1995, 1996, 1997, 1998, 1999

LX665:
• New Holland LX665 N844 Diesel Skid Steer (Engine S/N 57422-later) - 1994, 1995, 1996, 1997, 1998, 1999

NEW HOLLAND TRACK LOADER:

C175:
• New Holland C175 2.2L 4-Cyl 60HP Diesel Track Loader - 2007, 2008, 2009, 2010, 2011, 2012

CASE SKID STEER LOADERS:

Case 410:
• Case 410 422T/M3 Diesel Skid Steer - 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012

Case 420:
• Case 420 422T/M2 Diesel Skid Steer - 2005, 2006, 2007, 2008

Case 420CT:
• Case 420CT 422T/M2 Diesel Track Loader - 2006, 2007, 2008

Case SR130:
• Case SR130 ISM-N844T/M3 Skid Steer - 2011, 2012, 2013

Case SR150:
• Case SR150 ISM-N844T/M3 Skid Steer - 2011, 2012, 2013

CASE IH COMPACT TRACTORS - D SERIES:

D35:
• Case IH D35 Shibaura 1.7L 35HP Diesel - 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012

D40:
• Case IH D40 Shibaura 2.0L 35HP Diesel - 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012

D45:
• Case IH D45 Shibaura 2.2L 45HP Diesel - 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012

CASE IH COMPACT TRACTORS - DX SERIES:

DX34:
• Case IH DX34 Shibaura 1.7L 35HP Diesel - 2006, 2007, 2008, 2009, 2010, 2011, 2012

DX35:
• Case IH DX35 Shibaura 1.7L 35HP Diesel - 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012

DX40:
• Case IH DX40 Shibaura 2.0L 35HP Diesel - 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012

DX45:
• Case IH DX45 Shibaura 2.2L 45HP Diesel - 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012

DX48:
• Case IH DX48 Shibaura 2.2L 48HP Diesel - 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012

DX55:
• Case IH DX55 Shibaura 2.2L 55HP Diesel - 2007, 2008, 2009, 2010, 2011, 2012

DX60:
• Case IH DX60 Shibaura 2.2L 60HP Diesel - 2007, 2008, 2009, 2010, 2011, 2012

CASE IH FARMALL SERIES:

Farmall 35:
• Case IH Farmall 35 3-101 Shibaura Diesel - 2008, 2009, 2010, 2011

Farmall 40:
• Case IH Farmall 40 4-122 Shibaura Diesel - 2008, 2009, 2010, 2011

Farmall 45:
• Case IH Farmall 45 4-135 Shibaura Diesel - 2008, 2009, 2010, 2011

Farmall 50:
• Case IH Farmall 50 4-135 Shibaura Diesel - 2008, 2009, 2010, 2011

Farmall 55:
• Case IH Farmall 55 4-135 Shibaura Diesel - 2008, 2009, 2010, 2011

Farmall 60:
• Case IH Farmall 60 4-135 Shibaura Diesel - 2008, 2009, 2010, 2011
