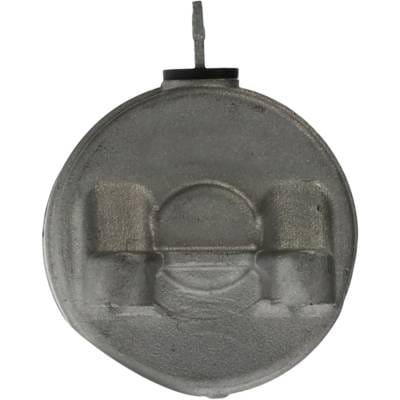

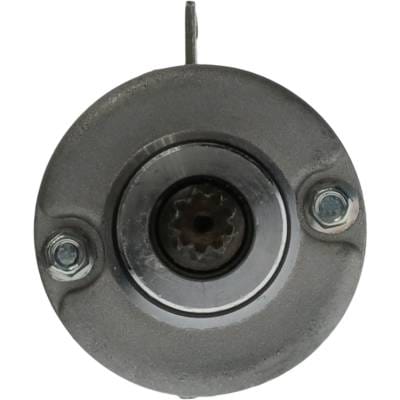

12V Starter Motor Compatible With 2006-2009 Suzuki Lt-R450 Lt-R450z Quadracer 450Cc Atv Clockwise

OEM PART NUMBERS:
• Denso: 428000-4220 / 4280004220
• Suzuki: 31100-45G00 / 3110045G00

SPECIFICATIONS:
• Voltage: 12V
• Starter Type: PMDD (Permanent Magnet Direct Drive)
• Power: 0.3kW
• Rotation: CW (Clockwise)
• Tooth Count: 9
• Gear OD: 11.8mm / 0.465in
• Mounting Ear 1: 6.4mm ID Unthreaded
• Mounting Ear 2: 6.4mm ID Unthreaded
• Mounting Hole Spacing: 33mm
• Drive Length: 34mm
• Starter Diameter: 60mm
• Total Length: 170mm
• Weight: 2.24 lbs / 1.02 kg
• Condition: New

APPLICATION:
• Suzuki LT-R450/LT-R450Z QuadRacer 450cc ATV (2006-2009)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
SUZUKI ATV - LT-R450 QUADRACER:
• LT-R450 QuadRacer 450cc (2006-2009)
• LT-R450Z QuadRacer 450cc (2006-2009)

FITMENT NOTES:
• 12V PMDD starter, Denso design
• 0.3kW, CW rotation, 9-tooth spline drive
• Gear OD: 11.8mm / 0.465in
• Dual 6.4mm ID unthreaded mounting ears
• Mounting hole spacing: 33mm
• Weight: 2.24 lbs / 1.02 kg

NOTE: Verify OEM part number before ordering.
