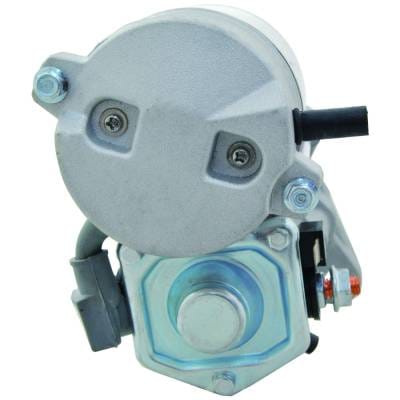

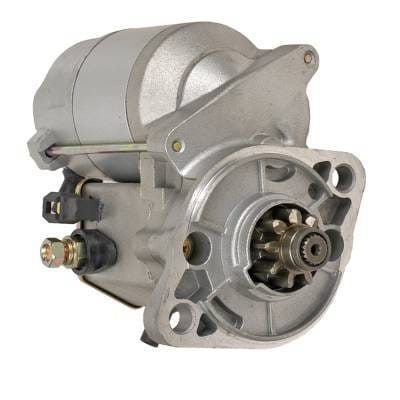

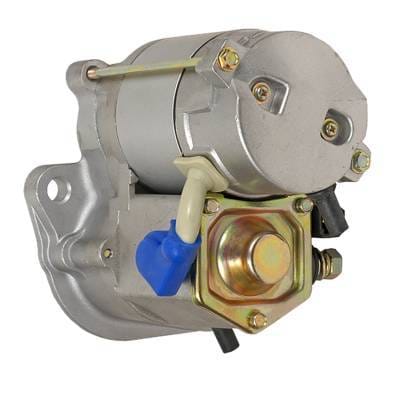

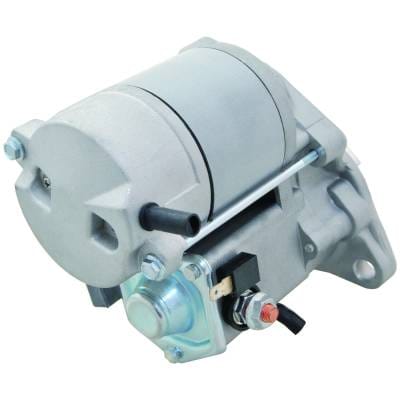

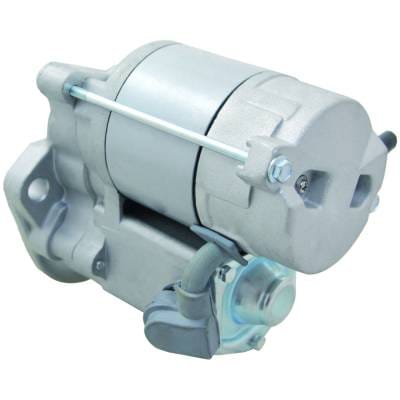

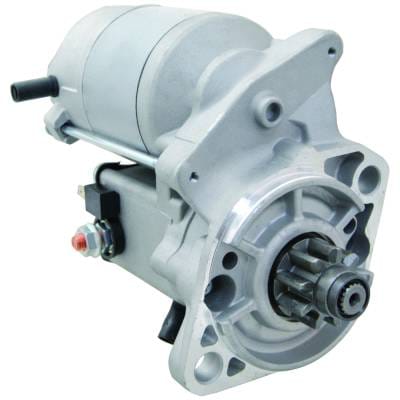

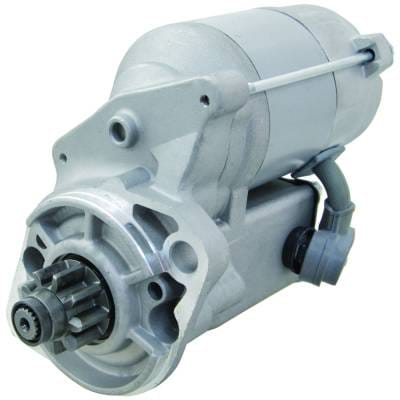

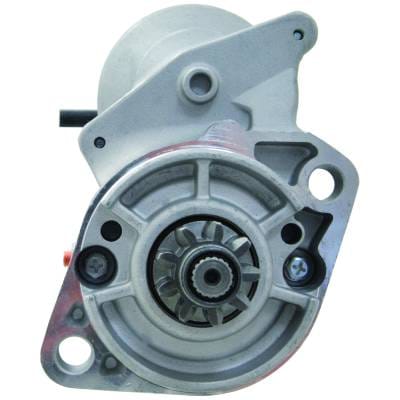

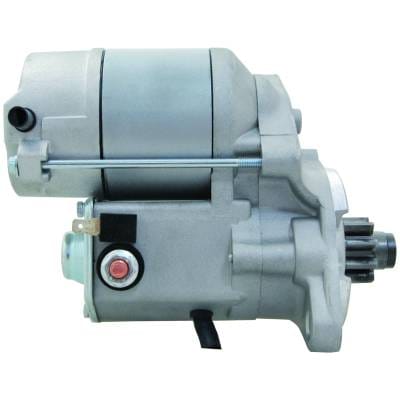

12V Starter Motor Compatible With 2003-2012 L3130dt L3130f L3130gst L3130hst Compact Tractor

OEM PART NUMBERS:
• Denso: 128000-8461
• Denso (no dash): 1280008461
• Denso Reman: 9712809-846
• Denso Reman (no dash): 9712809846
• Kubota: 34070-16083
• Kubota: 34070-16801
• Kubota: 34070-16803
• Kubota (no dash): 3407016083, 3407016801, 3407016803

SPECIFICATIONS:
• Voltage: 12V
• Power: 1.2 KW / 1.61 HP
• Starter Type: Denso OSGR
• Rotation: Clockwise (CW)
• Teeth: 9
• Gear OD: 33.7mm / 1.327in
• Mounting: Two 11mm Unthreaded Holes
• Weight: 8.45 lbs / 3.84 kg

FITS KUBOTA COMPACT TRACTORS:
• L3130DT/F/GST/HST - D1503MAE-GST 32HP (2003-2012)
• L3240F/GST/HST/HSTC - D1703-M-E2 34HP (2007-2008)
• L3300DT/DTGST/F/GST - D1703-A 35HP (1994-1998)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
KUBOTA COMPACT TRACTORS:

L3130:
• L3130DT-F - Kubota D1503MAE-GST 32HP Diesel - 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012
• L3130DT-R - Kubota D1503MAE-GST 32HP Diesel - 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012
• L3130F-F - Kubota D1503MAE-GST 32HP Diesel - 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012
• L3130F-R - Kubota D1503MAE-GST 32HP Diesel - 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012
• L3130GST-F - Kubota D1503MAE-GST 32HP Diesel - 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012
• L3130GST-R - Kubota D1503MAE-GST 32HP Diesel - 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012
• L3130HST-C - Kubota D1503MAE-GST 32HP Diesel - 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012
• L3130HST-F - Kubota D1503MAE-GST 32HP Diesel - 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012
• L3130HST-R - Kubota D1503MAE-GST 32HP Diesel - 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012

L3240:
• L3240F - Kubota D1703-M-E2 34HP Diesel - 2007, 2008
• L3240GST - Kubota D1703-M-E2 34HP Diesel - 2007, 2008
• L3240HST - Kubota D1703-M-E2 34HP Diesel - 2007, 2008
• L3240HSTC - Kubota D1703-M-E2 34HP Diesel - 2007, 2008

L3300:
• L3300DT - Kubota D1703-A 35HP Diesel - 1994, 1995, 1996, 1997, 1998
• L3300DTGST - Kubota D1703-A 35HP Diesel - 1994, 1995, 1996, 1997, 1998
• L3300F - Kubota D1703-A 35HP Diesel - 1994, 1995, 1996, 1997, 1998
• L3300GST - Kubota D1703-A 35HP Diesel - 1994, 1995, 1996, 1997, 1998
