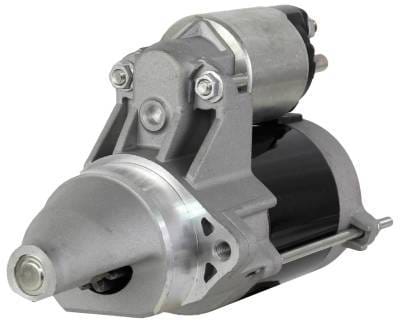

12V Starter Motor Compatible With 2002-2004 Ski-Doo Legend 380 500 550F Fan Grand Touring 380 500

OEM PART NUMBERS:
• 515-175-795 (Bombardier / BRP - Current)
• 515-175-141 (Bombardier / BRP / Sea-Doo - Superseded by 515-175-795)
• 228000-8290 (Denso)
• 228000-8291 (Denso)
• 228000-829 (Denso - Base number)
• 428000-1000 (Denso / Nippondenso)
• 428000-100 (Denso - Truncated variant)
• 46-4265 (Other OEM)

SPECIFICATIONS:
• Voltage: 12V
• Power: 0.6 KW
• Rotation: Clockwise (CW)
• Tooth Count: 9
• Starter Type: PMDD (Permanent Magnet Direct Drive)
• Unit Type: Denso
• Weight: 8 lbs
• Condition: New Aftermarket

FITS SKI-DOO SNOWMOBILES:
• Grand Touring 380 Fan 377cc, 500 Fan 503cc, 550 Fan 553cc - 2002-2003
• Legend 380 Fan 377cc, 500 Fan 494cc, 550F 553cc - 2002-2004
• MX Z 380 Fan 377cc, 500 Fan 494cc, 550 Fan 553cc - 2002-2006
• Scandic 550 SUV, Super Wide Track 550, Wide Track 550 - 2004-2007
• Summit 550 Fan 553cc - 2003

FITS LYNX SNOWMOBILES:
• Ranger FCE - 2003
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
LYNX:

RANGER FCE:
• Lynx Ranger FCE Snowmobile - 2003

SKI-DOO GRAND TOURING:

GRAND TOURING 380 FAN:
• Ski-Doo Grand Touring 380 Fan 377cc - 2002, 2003

GRAND TOURING 500 FAN:
• Ski-Doo Grand Touring 500 Fan 503cc - 2002

GRAND TOURING 550 FAN:
• Ski-Doo Grand Touring 550 Fan 553cc - 2003

SKI-DOO LEGEND:

LEGEND 380 FAN:
• Ski-Doo Legend 380 Fan 377cc - 2002, 2003, 2004

LEGEND 500 FAN:
• Ski-Doo Legend 500 Fan 494cc - 2002, 2003

LEGEND 550F:
• Ski-Doo Legend 550F 553cc - 2003, 2004

SKI-DOO MX Z:

MX Z 380 FAN:
• Ski-Doo MX Z 380 Fan 377cc - 2002, 2003, 2004, 2005, 2006

MX Z 500 FAN:
• Ski-Doo MX Z 500 Fan 494cc - 2002

MX Z 550 FAN:
• Ski-Doo MX Z 550 Fan 553cc - 2003

SKI-DOO SCANDIC:

SCANDIC 550 SUV:
• Ski-Doo Scandic 550 SUV 553cc - 2004, 2005, 2006, 2007

SCANDIC SUPER WIDE TRACK 550:
• Ski-Doo Scandic Super Wide Track 550 553cc - 2004, 2005, 2006, 2007

SCANDIC WIDE TRACK 550:
• Ski-Doo Scandic Wide Track 550 550cc - 2004, 2005, 2006, 2007

SKI-DOO SUMMIT:

SUMMIT 550 FAN:
• Ski-Doo Summit 550 Fan 553cc - 2003
