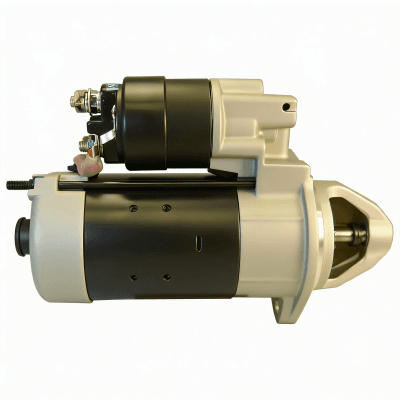

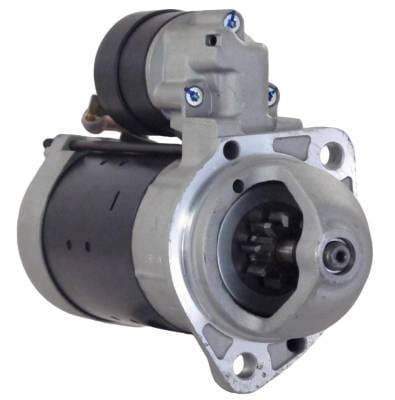

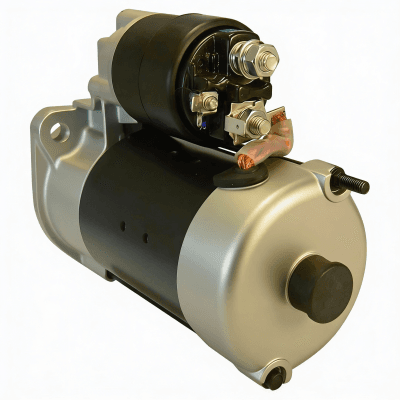

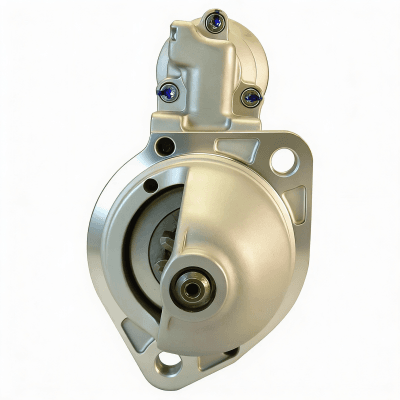

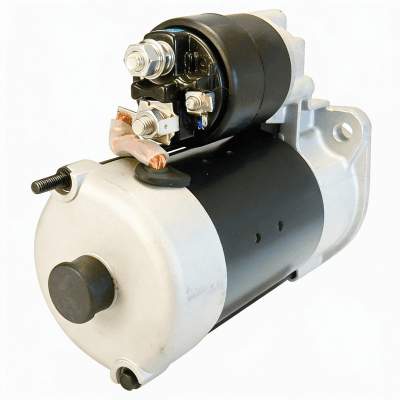

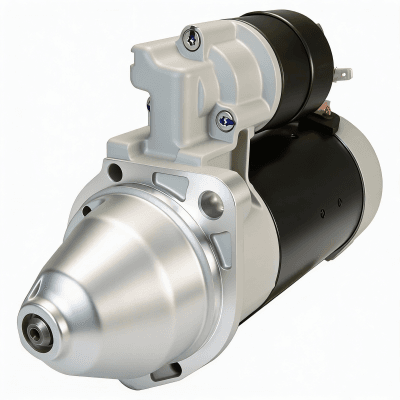

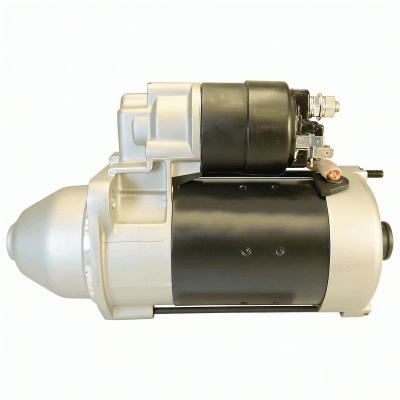

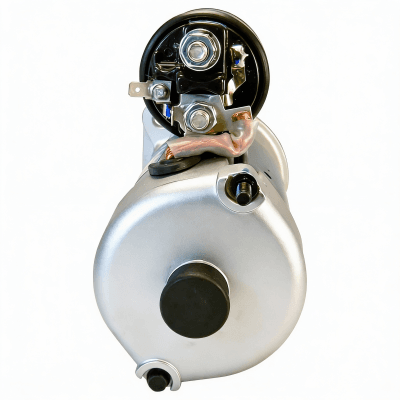

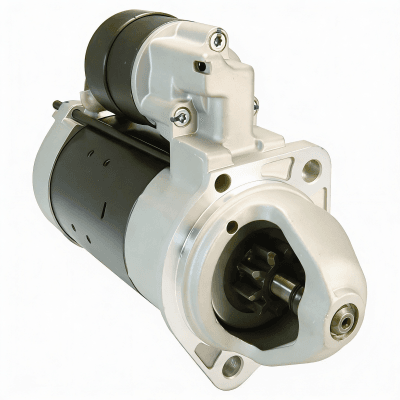

12V Starter Motor Compatible With 1997-2006 Bw124dh-3 Bw124pdh-3 Roller Compactor F3l1011 Diesel

BOSCH OEM PART NUMBERS:
• 0001223016 / 0-001-223-016 - Original Bosch starter
• 0001223021 / 0-001-223-021 - Alternate Bosch starter
• 0001109369 / 0-001-109-369 - Bosch cross-reference
• 0986019820 / 0-986-019-820 - Bosch Reman Europe
• SR9984X - Bosch Reman USA

DEUTZ / KHD OEM PART NUMBERS:
• 01181751 / 118-1751
• 01182124 / 118-2124
• 01182382 / 118-2382
• 01182384 / 118-2384
• 01183365 / 1183365
• 01183404 / 1183404
• 01183599 / 1183599
• 04300006 / 4300006
• 04300007 / 4300007

JLG OEM PART NUMBER:
• 7020479

HAMM OEM PART NUMBER:
• 1214209

VOGELE OEM PART NUMBER:
• 2033874

BOMAG OEM PART NUMBERS:
• 05718064
• 05714657R

ATLAS COPCO OEM PART NUMBERS:
• 2913146100
• 2913179000

SPECIFICATIONS:
• Voltage: 12V
• Power: 2.3 KW / 3.08 HP
• Type: PLGR (Planetary Gear Reduction)
• Rotation: Clockwise (CW)
• Teeth: 9
• Gear OD: 33.7mm / 1.327 in
• Mounting: 2-Bolt Flange, 11.0mm ID Unthreaded (Both Ears)
• Weight: 14.55 lbs / 6.61 kg
• Dry Clutch Type

FITS DEUTZ 1011 SERIES ENGINES:
• F2L1011 - 2-Cylinder Air-Cooled Diesel
• F3L1011 / F3L1011F - 3-Cylinder Air-Cooled Diesel
• F4L1011 / F4L1011F - 4-Cylinder Air-Cooled Diesel
• F4M1011F - 4-Cylinder Air-Cooled Diesel
• BF4L1011 - 4-Cylinder Turbocharged Air-Cooled Diesel
• BF4M1011F - 4-Cylinder Turbocharged Air-Cooled Diesel

FITS CONSTRUCTION ROLLER COMPACTORS:
• Bomag BW124DH-3, BW124PDH-3 Single Drum Compactors
• Hamm 3307, 3307P, 3205, 3205P Vibratory Rollers
• Hamm HW90/10, HW90/12, HW90 B/10, HW90 B/12 Three-Wheel Rollers
• Stone WP6400, WP6400B Wolfpac Asphalt Rollers
• Wirtgen Cold Milling Machines with Deutz Engine
• Vogele Asphalt Pavers with Deutz Engine
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
BOMAG COMPACTORS:

BW124DH-3:
• BW124DH-3 Single Drum Roller Compactor, Deutz F3L1011 3-Cylinder Air-Cooled Diesel - 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006

BW124PDH-3:
• BW124PDH-3 Padfoot Drum Roller Compactor, Deutz F3L1011 3-Cylinder Air-Cooled Diesel - 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006

HAMM ROLLERS:

3307:
• 3307 Vibratory Smooth Drum Roller, Deutz BF4M1011F 4-Cylinder Turbocharged Air-Cooled Diesel - 2001, 2002, 2003, 2004, 2005, 2006

3307P:
• 3307P Vibratory Padfoot Drum Roller, Deutz BF4M1011F 4-Cylinder Turbocharged Air-Cooled Diesel - 2001, 2002, 2003, 2004, 2005, 2006

3205:
• 3205 Vibratory Smooth Drum Roller, Deutz F4M1011F 4-Cylinder Air-Cooled Diesel, 42 KW / 64 HP, 54 in Drum Width - 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015

3205P:
• 3205P Vibratory Padfoot Drum Roller, Deutz F4M1011F 4-Cylinder Air-Cooled Diesel - 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015

HW90:
• HW90/10 Three-Wheel Static Roller, Deutz BF4L1011 4-Cylinder Turbocharged Diesel, 51.5 KW - 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004
• HW90/12 Three-Wheel Static Roller, Deutz BF4L1011 4-Cylinder Turbocharged Diesel, 51.5 KW - 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004
• HW90 B/10 Three-Wheel Static Roller, Deutz Diesel - 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015
• HW90 B/12 Three-Wheel Static Roller, Deutz Diesel - 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012

STONE ROLLERS:

WP6400 (WOLFPAC 6400):
• WP6400 Vibratory Asphalt Roller, Deutz F2L1011 2-Cylinder Air-Cooled Diesel, 30 HP - 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006

WP6400B (WOLFPAC 6400B):
• WP6400B Vibratory Asphalt Roller, Deutz F2L1011 2-Cylinder Air-Cooled Diesel, 30 HP - 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006

ADDITIONAL APPLICATIONS WITH DEUTZ ENGINE:

WIRTGEN:
• Wirtgen Cold Milling Machine with Deutz Diesel Engine

VOGELE:
• Vogele Asphalt Paver with Deutz Diesel Engine

DEUTZ ENGINE COMPATIBILITY:
• F2L1011 - 2-Cylinder Air-Cooled Diesel
• F3L1011 - 3-Cylinder Air-Cooled Diesel, 91mm x 105mm Bore x Stroke
• F3L1011F - 3-Cylinder Air-Cooled Diesel, 2.05L (125 cu in)
• F4L1011 - 4-Cylinder Air-Cooled Diesel
• F4L1011F - 4-Cylinder Air-Cooled Diesel, 2.7L (166.7 cu in)
• F4M1011F - 4-Cylinder Air-Cooled Diesel
• BF4L1011 - 4-Cylinder Turbocharged Air-Cooled Diesel
• BF4M1011F - 4-Cylinder Turbocharged Air-Cooled Diesel
