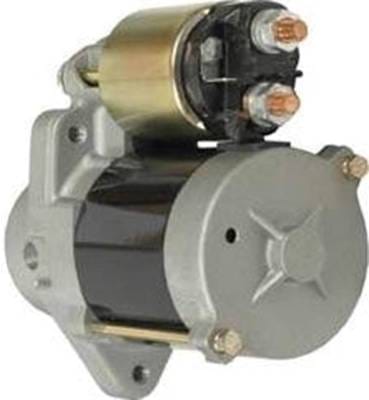

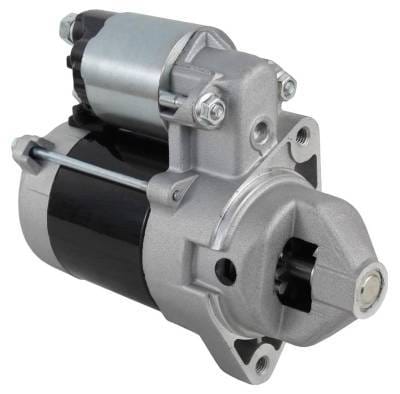

12V Starter Motor Compatible With 1987-2003 John Deere 170 175 240 245 Gt242 Lx172 Lx176 Kawasaki

OEM PART NUMBERS:
• Denso: 128000-4020 / 1280004020
• John Deere: AM104559
• Kawasaki: 21163-2073 / 211632073
• Kawasaki: 21163-2073A / 211632073A
• Kubota: 12498-63010 / 1249863010

SPECIFICATIONS:
• Voltage: 12V
• Type: DD (Direct Drive)
• Rotation: CCW (Counterclockwise)
• Tooth Count: 9
• Gear OD: 29mm / 1.142in
• Power: 0.7kW
• Mounting Ear 1: M8-1.25 ID Threaded
• Mounting Ear 2: M8-1.25 ID Threaded
• Registry Diameter: 70mm
• Mounting Hole C to C: 100mm
• Weight: 7.5 lbs / 3.41 kg
• Condition: New

APPLICATION:
• John Deere 170/175/240/245 Kawasaki 14HP (1987-1994)
• John Deere GT242/LX172/LX176 Kawasaki 14HP (1991-1996)
• John Deere F510/GS25/GS30/GS45/HD45 (1990-2003)
• Kawasaki FC400V / FC401V / FC420V Engines
• Kubota T1460/T1460A/T1460B GH410V 12.5HP Gas (1995-2006)
• Kubota T1560/T1560A/T1560B GH420V 14HP Gas

12V Denso DD Starter — John Deere / Kubota Lawn Tractors with Kawasaki Engines
New 12V Denso DD starter for John Deere lawn tractors and mowers with Kawasaki engines and Kubota T1460/T1560 lawn tractors with GH410V/GH420V gas engines. 9-tooth CCW rotation, 0.7kW, 29mm gear OD with dual M8-1.25 threaded mounting ears. Direct OEM replacement for Denso 128000-4020, John Deere AM104559, Kawasaki 21163-2073, 21163-2073A, and Kubota 12498-63010.PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
JOHN DEERE LAWN TRACTORS:
• 170 Kawasaki 14HP (1989-1990)
• 175 Kawasaki 14HP (1987-1990)
• 240 Kawasaki 14HP (1988-1992)
• 245 Kawasaki 14HP 423cc (1993-1994)
• GT242 Kawasaki 14HP 423cc Gear (1993-1996)
• LX172 Kawasaki 14HP Gear (1991-1996)
• LX176 Kawasaki 14HP Hydro (1991-1996)

JOHN DEERE COMMERCIAL MOWERS:
• F510 Front Mower Kawasaki 14HP (1990-1998)
• GS25 Walk-Behind Kawasaki 12.5HP (1997-2001)
• GS30 Walk-Behind Kawasaki 13HP 398cc (1997-2003)
• GS45 Walk-Behind Kawasaki 14HP 423cc (1995-2003)
• HD45 Walk-Behind Kawasaki 14HP 423cc (2000-2003)

KAWASAKI SMALL ENGINES:
• FC400V
• FC401V
• FC420V

KUBOTA LAWN TRACTORS:
• T1460-40 / T1460A-40 / T1460B-40 GH410V 12.5HP Gas (1995-2006)
• T1560-40 / T1560-44 GH420V 14HP Gas
• T1560A-40 / T1560A-44 GH420V 14HP Gas
• T1560B-40 / T1560B-44 GH420V 14HP Gas

NOTE: Verify OEM part number from your original unit before ordering to ensure proper fitment.
