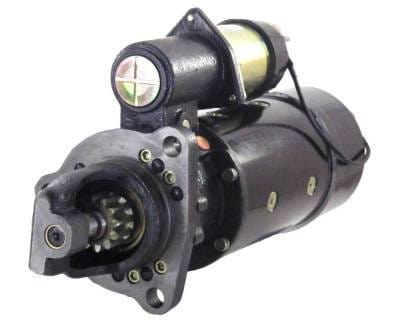

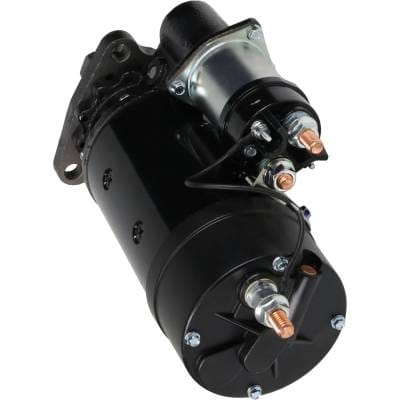

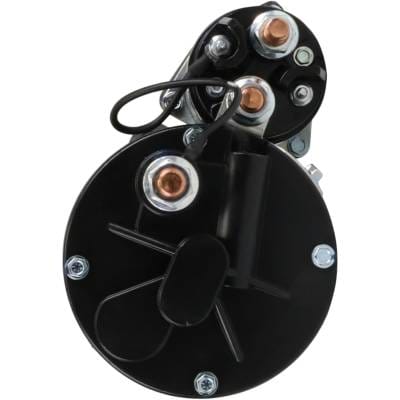

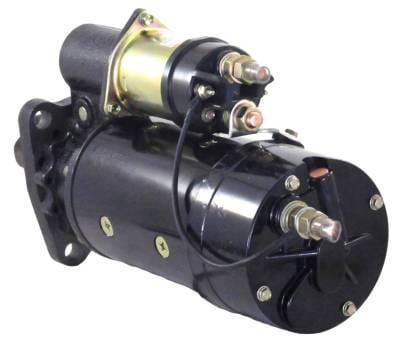

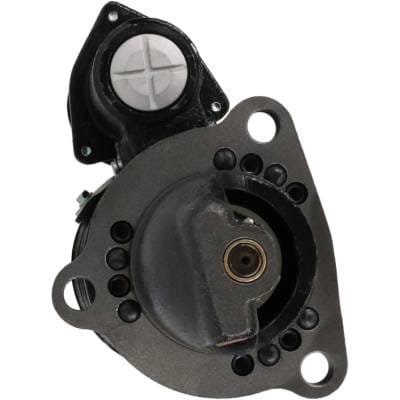

12V Starter Motor Compatible With 1986-1990 Am36 Am40 V160b V180b V200b V225b V250b V300b Lift Truck

OEM PART NUMBERS:
• Case: 20-2386T91 (202386T91)
• Caterpillar: 0R2189
• Caterpillar: 6V3948 (6V-3948)
• Caterpillar: 6V4215 (6V-4215)
• Caterpillar: 8C3596
• Cummins: 157579
• Cummins: 185617
• Cummins: 3604323RX
• Delco: 10461021, 10461032, 10461034, 10461050, 10461051, 10461414
• Delco: 10478931, 10479003, 10479117
• Delco: 1990353, 1990356, 1990362, 1990369, 1990370, 1990374, 1990379
• Delco: 1990385, 1990387, 1990394, 1990399, 1990401, 1990403, 1990404
• Delco: 1990405, 1990407, 1990419, 1990425, 1990429, 1990441

SPECIFICATIONS:
• Voltage: 12V
• Power: 7.8 KW
• Type: DD (Direct Drive)
• Series: Delco 42MT
• Rotation: Clockwise (CW)
• Teeth: 12
• Gear OD: 46.5mm / 1.831 in
• DE Housing: 371-12088
• Mounting: 3 Holes, 0.660" ID Unthreaded
• Weight: 60.75 lbs / 27.61 kg

FITS CATERPILLAR ENGINES:
• 3208 Industrial Engine (1985-1995)

FITS CATERPILLAR LIFT TRUCKS:
• AH40 Lift Truck Cat 3208 (1986-1993)
• AH46 Lift Truck Cat 3208 (1986-1990)
• AH52 Lift Truck Cat 3208 (1986-1990)
• AH60 Lift Truck Cat 3208 (1986-1990)
• AM36 Lift Truck Cat 3208 (1986-1990)
• AM40 Lift Truck Cat 3208 (1986-1990)
• V160, V160B Lift Truck Cat 3208 (1986-1990)
• V180, V180B Lift Truck Cat 3208 (1986-1990)
• V200, V200B Lift Truck Cat 3208 (1986-1990)
• V225, V225B Lift Truck Cat 3208 (1986-1990)
• V250, V250B Lift Truck Cat 3208 (1986-1990)
• V300, V300B Lift Truck Cat 3208 (1986-1990)
• V330B Lift Truck Cat 3208 (1986-1990)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
CATERPILLAR ENGINES:

3208 INDUSTRIAL ENGINE:
• Caterpillar 3208 Industrial Engine All - 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995

CATERPILLAR LIFT TRUCKS:

AH40 LIFT TRUCK:
• Caterpillar AH40 Lift Truck Cat 3208 - 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993

AH46 LIFT TRUCK:
• Caterpillar AH46 Lift Truck Cat 3208 - 1986, 1987, 1988, 1989, 1990

AH52 LIFT TRUCK:
• Caterpillar AH52 Lift Truck Cat 3208 - 1986, 1987, 1988, 1989, 1990

AH60 LIFT TRUCK:
• Caterpillar AH60 Lift Truck Cat 3208 - 1986, 1987, 1988, 1989, 1990

AM36 LIFT TRUCK:
• Caterpillar AM36 Lift Truck Cat 3208 - 1986, 1987, 1988, 1989, 1990

AM40 LIFT TRUCK:
• Caterpillar AM40 Lift Truck Cat 3208 - 1986, 1987, 1988, 1989, 1990

V160 LIFT TRUCK:
• Caterpillar V160 Lift Truck Cat 3208 - 1986, 1987, 1988, 1989, 1990

V160B LIFT TRUCK:
• Caterpillar V160B Lift Truck Cat 3208 - 1986, 1987, 1988, 1989, 1990

V180 LIFT TRUCK:
• Caterpillar V180 Lift Truck Cat 3208 - 1986, 1987, 1988, 1989, 1990

V180B LIFT TRUCK:
• Caterpillar V180B Lift Truck Cat 3208 - 1986, 1987, 1988, 1989, 1990

V200 LIFT TRUCK:
• Caterpillar V200 Lift Truck Cat 3208 - 1986, 1987, 1988, 1989, 1990

V200B LIFT TRUCK:
• Caterpillar V200B Lift Truck Cat 3208 - 1986, 1987, 1988, 1989, 1990

V225 LIFT TRUCK:
• Caterpillar V225 Lift Truck Cat 3208 - 1986, 1987, 1988, 1989, 1990

V225B LIFT TRUCK:
• Caterpillar V225B Lift Truck Cat 3208 - 1986, 1987, 1988, 1989, 1990

V250 LIFT TRUCK:
• Caterpillar V250 Lift Truck Cat 3208 - 1986, 1987, 1988, 1989, 1990

V250B LIFT TRUCK:
• Caterpillar V250B Lift Truck Cat 3208 - 1986, 1987, 1988, 1989, 1990

V300 LIFT TRUCK:
• Caterpillar V300 Lift Truck Cat 3208 - 1986, 1987, 1988, 1989, 1990

V300B LIFT TRUCK:
• Caterpillar V300B Lift Truck Cat 3208 - 1986, 1987, 1988, 1989, 1990

V330B LIFT TRUCK:
• Caterpillar V330B Lift Truck Cat 3208 - 1986, 1987, 1988, 1989, 1990
