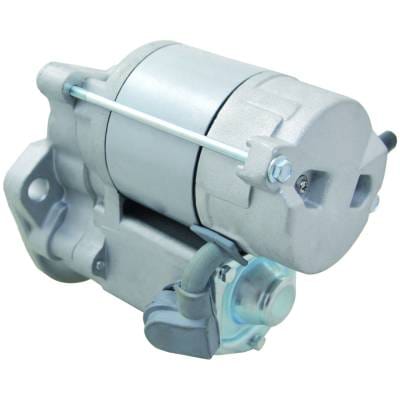

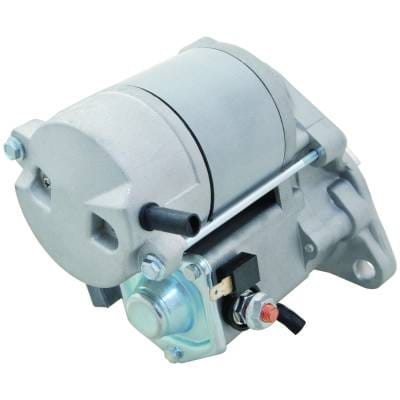

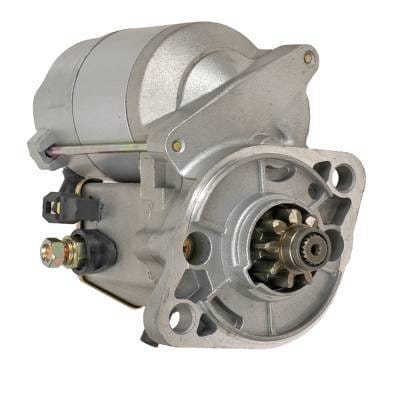

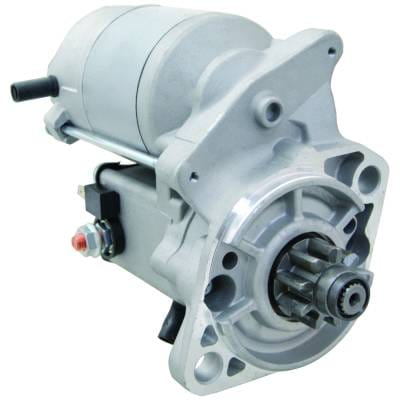

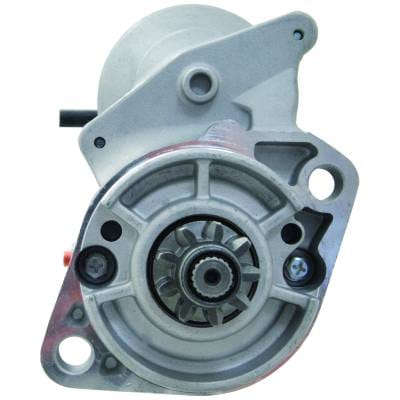

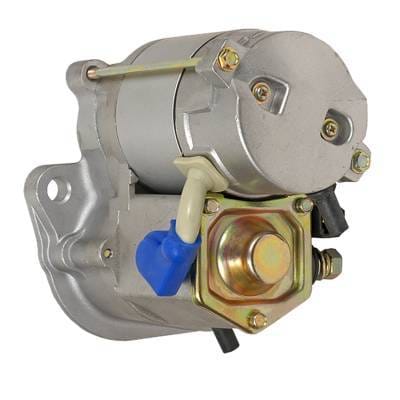

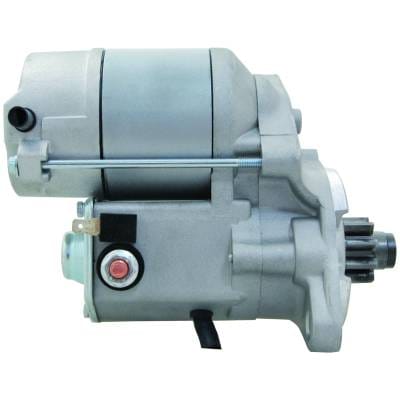

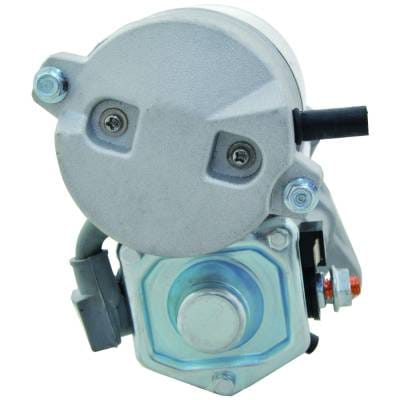

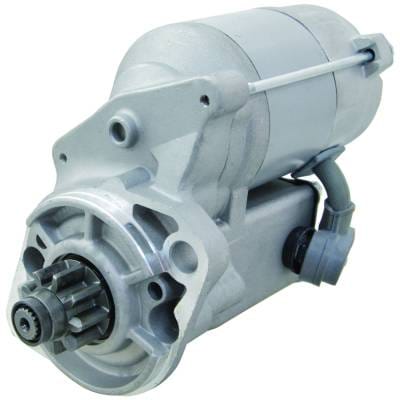

12V Starter Motor Compatible With 1985-1996 L2250 L2500 L2550 L2650 Compact Tractor Diesel D1302

OEM PART NUMBERS:
• Denso: 128000-8460
• Denso (no dash): 1280008460
• Kubota: 34070-16081
• Kubota: 34070-16800
• Kubota: 34070-16802
• Kubota (no dash): 3407016081, 3407016800, 3407016802

SPECIFICATIONS:
• Voltage: 12V
• Power: 1.2 KW / 1.61 HP
• Starter Type: Denso OSGR
• Rotation: Clockwise (CW)
• Teeth: 9
• Gear OD: 33.7mm / 1.327in
• Mounting: Two 11mm Unthreaded Holes
• Weight: 8.45 lbs / 3.84 kg

FITS KUBOTA GENERATORS:
• KJS130D - D1703 Diesel
• KJS130DX - D1703E Diesel

FITS KUBOTA COMPACT TRACTORS:
• L2250DT/F - D1302DI 26.5HP (1985-1990)
• L2500DT/F - D1403AE 27HP (1997-2009)
• L2550DT/DTGST/F/GST - D1402DIA 29.5HP (1985-1990)
• L2650DT/F/GST - D1402DIAE 29HP (1990-1996)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
KUBOTA GENERATOR SETS:

KJS130D:
• KJS130D Generator Set - Kubota D1703 Diesel - All Years

KJS130DX:
• KJS130DX Generator Set - Kubota D1703E Diesel - All Years

KUBOTA COMPACT TRACTORS:

L2250:
• L2250DT - Kubota D1302DI 26.5HP Diesel - 1985, 1986, 1987, 1988, 1989, 1990
• L2250F - Kubota D1302DI 26.5HP Diesel - 1985, 1986, 1987, 1988, 1989, 1990

L2500:
• L2500DT - Kubota D1403AE 27HP Diesel - 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009
• L2500DT - E-TVCS Kubota Diesel - 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006
• L2500F - Kubota D1403AE 27HP Diesel - 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009
• L2500F - E-TVCS Kubota Diesel - 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006

L2550:
• L2550DT - Kubota D1402DIA 29.5HP Diesel - 1985, 1986, 1987, 1988, 1989, 1990
• L2550DTGST - Kubota D1402DIA 29.5HP Diesel - 1985, 1986, 1987
• L2550F - Kubota D1402DIA 29.5HP Diesel - 1985, 1986, 1987, 1988, 1989, 1990
• L2550GST - Kubota D1402DIA 29.5HP Diesel - 1986, 1987, 1988, 1989, 1990

L2650:
• L2650DT - Kubota D1402DIAE 29HP Diesel - 1990, 1991, 1992, 1993, 1994, 1995, 1996
• L2650F - Kubota D1402DIAE 29HP Diesel - 1991, 1992, 1993
• L2650GST - Kubota D1402DIAE 29HP Diesel - 1991, 1992, 1993
