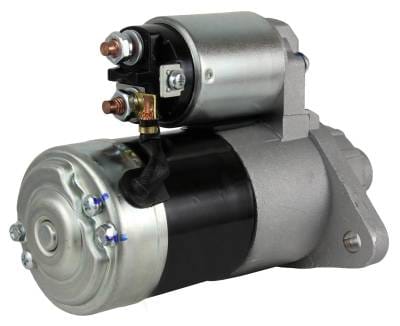

12V Starter Compatible With Yanmar Marine 1Gm 1Gm10 2Gm 2Gm20 2Gmf Diesel Sailboat Engine Hitachi

OEM PART NUMBERS:
• Yanmar: 128170-77010 / 12817077010
• Yanmar: 128170-77010D / 12817077010D
• Hitachi: S114-303 / S114303
• Hitachi: S114-303A / S114303A
• Bosch: SR5052N
• Quicksilver/Mercury Marine: 8M6007438

SPECIFICATIONS:
• Type: DD (Direct Drive) / Hitachi System
• Voltage: 12V / Power: 1.2kW
• Rotation: Clockwise (CW) / Teeth: 9
• Pinion/Gear OD: 29.1mm (1.146")
• Mounting Ears: 10.7mm ID Unthreaded (x2)
• Weight: 7.9 lbs (3.59 kg)
• Condition: New

YANMAR MARINE DIESEL APPLICATIONS:
• 1GM / 1GM10 / 1GM10C / GMF — 1-Cyl (1980-On)
• 2GM / 2GM20 / 2GMF / 20GM — 2-Cyl (1980-2005)
• 3GM / 3GM30 / 3GMD / 3GMF / 30GM — 3-Cyl (1980-2005)
• KM2A/C/P and KM3A/P/V Marine Gear ApplicationsPRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
YANMAR 1GM SERIES — 1-CYLINDER MARINE DIESEL:
• 1GM 1-Cyl 0.318L (318cc) 6.5HP 4-Stroke Diesel — 75mm x 72mm (1980-1984)
• 1GM10 1-Cyl 0.331L (331cc) 9HP 4-Stroke Diesel — 75mm x 75mm (1985-On)
• 1GM10C 1-Cyl Compact Marine Diesel (1982-1984)
• 10GM (Alternate Designation for 1GM10)
• GMF Freshwater-Cooled Variant

YANMAR 2GM SERIES — 2-CYLINDER MARINE DIESEL:
• 2GM 2-Cyl 0.570L (570cc) 13HP 4-Stroke Diesel — 72mm x 70mm (1980-1984)
• 2GM20 2-Cyl 0.636L (636cc) 18HP 4-Stroke Diesel — 75mm x 72mm (1983-2005)
• 2GMF 2-Cyl Freshwater-Cooled 13HP Diesel (1980-1984)
• 20GM (Alternate Designation for 2GM20)

YANMAR 3GM SERIES — 3-CYLINDER MARINE DIESEL:
• 3GM 3-Cyl 0.854L (854cc) 20HP 4-Stroke Diesel — 72mm x 70mm (1980-1984)
• 3GM30 3-Cyl 0.954L (954cc) 24HP 4-Stroke Diesel — 75mm x 72mm (1983-2005)
• 3GMD 3-Cyl 20HP w/KM3-A Marine Gear — 72mm x 70mm (1980-1984)
• 3GMF 3-Cyl Freshwater-Cooled 20HP Diesel (1980-1984)
• 30GM (Alternate Designation for 3GM30)

YANMAR MARINE GEARS (Equipped with Above Engines):
• KM2A / KM2C / KM2P (2-Cylinder Applications)
• KM3A / KM3P / KM3V (3-Cylinder Applications)

ENGINE DETAILS:
• Type: 4-Stroke Swirl Pre-Combustion Chamber Diesel
• Cooling: Direct Seawater or Freshwater w/Heat Exchanger (F models)
• Starting: 12V Electric Starter Motor
• All Models Hitachi Ignition/Starter System
