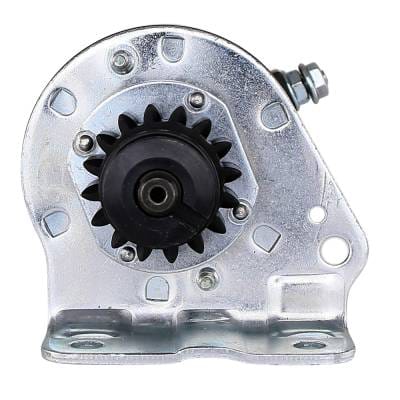

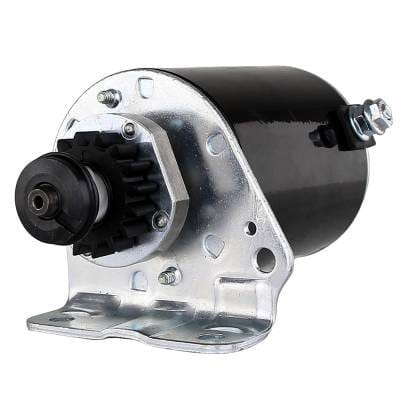

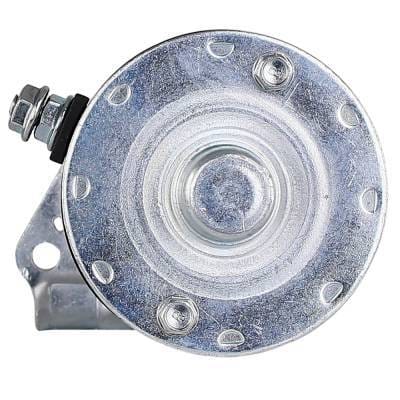

12V Starter Compatible With Scotts L2048 L2548 S2046 John Deere Sabre 1438Gs 1538Gs Z235 La130 La140

OEM PART NUMBERS:
• Briggs & Stratton: 497595 / 693054 / 394805 / 390838 / 391423 / 392749 / 491766 / 497594 / 435303
• John Deere: LG497595 / AM122337 / AM37352 / AM39137 / MIA12048 / MIU13772 / SE501880

SPECIFICATIONS:
• Voltage: 12V
• Type: PMDD (Permanent Magnet Direct Drive)
• Rotation: CCW (Counterclockwise)
• Teeth: 16
• Gear OD: 40.6mm / 1.598 Inch
• Field Case Length: 3.75 Inch / 95.3mm
• Mounting: 3x Unthreaded Ears (8.1-8.3mm ID)
• Power: 0.7kW
• Weight: 5.14 lbs / 2.34 kg
• Flywheel: Plastic or Aluminum Ring Gears ONLY

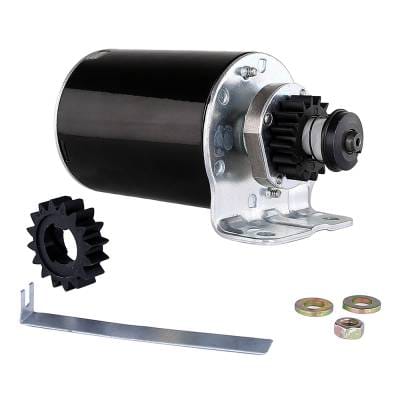

• Includes: Extra 16-Tooth Plastic Gear
• Condition: New

APPLICATION:
• John Deere Sabre: 1338G / 1438GS-HS / 1538GS-HS / 1542GS-HS / 1546G / 1646HS
• John Deere 100 Series: D125-D170 / 125 / 135 / 145 / 155C / 190C / 92H / 107H
• John Deere L/LA/X Series: L111 / L118 / LA120-LA175 / X130R-X165 / Z235
• John Deere Riding: 65 / 66 / 68 / 100 / 108 / 111 / 111H / 112L / GX85 / SX85 / R70-S92
• Cub Cadet: 70-383 / 805-1225 / 1300 / 1405 / RZT22 / RZT50
• Scotts: L2048 / L2548 / S2046
• Toro: 12-32XL through 16-44HXL / LT11 / LX466
• For plastic or aluminum flywheel ring gears ONLY

12V PMDD Starter Motor — Briggs & Stratton 7-22HP Engines
Direct OEM replacement 12V PMDD starter motor for Briggs & Stratton air-cooled 7-22HP engines with plastic or aluminum flywheel ring gears. 16-tooth CCW rotation with 3.75-inch field case. Fits a wide range of John Deere Sabre lawn tractors, 100 Series (D125 through D170), LA Series (LA120 through LA175), L Series, X Series, riding mowers (65 through 112L), Cub Cadet lawn tractors (70 through 1225, RZT22, RZT50, 1300, 1405), Scotts (L2048, L2548, S2046), and Toro riding mowers. Ships with extra 16-tooth plastic gear included. Direct replacement for Briggs & Stratton 497595, 693054, John Deere LG497595, AM122337, AM37352, AM39137, MIA12048, MIU13772, SE501880.PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
JOHN DEERE SABRE LAWN TRACTORS:
• 1338G / 1438GS / 1438HS / 1538GS / 1538HS / 1542GS / 1542HS / 1546G / 1646HS

JOHN DEERE 100 SERIES TRACTORS:
• D125 / D130 / D140 / D150 / D160 / D170
• 125 / 135 / 145 / 155C / 190C
• 92H / 107H

JOHN DEERE L / LA SERIES LAWN TRACTORS:
• L111 / L118
• LA120 / LA130 / LA135 / LA140 / LA145 / LA150 / LA155 / LA165 / LA175
• S2046

JOHN DEERE X-SERIES / Z-SERIES:
• X130R / X135R / X140 / X155R / X165
• Z235

JOHN DEERE RIDING MOWERS:
• 65 / 66 / 68 / 100 / 108 / 111 / 111H / 112L
• GX85 / SX85 / R70 / R72 / R92 / S80 / S82 / S92

JOHN DEERE TILLERS:
• 820 / 820A Rear Tine Tillers

CUB CADET LAWN TRACTORS:
• 70 (1972-1976) / 80 / 81 (1977-1978) / 111 (1978-1979)
• 182 / 282 / 283 (1980-1984) / 382 / 383 (1980-1984)
• 805 (1985-1986) / 1015 / 1020 (1988-1991) / 1105 / 1110 (1985-1986)
• 1225 (1992-1993) / 1300 / 1405
• RZT22 / RZT50

SCOTTS LAWN TRACTORS:
• L2048 V-Twin OHV 20HP (2002-2008)
• L2548 V-Twin OHV 25HP
• S2046

TORO RIDING MOWERS:
• 12-32XL / 13-32XLE / 13-38XL / 14-38HXL / 15-44HXL / 16-44HXL
• LT11 / LX466

IMPORTANT: For use with plastic or aluminum flywheel ring gears ONLY — will NOT fit steel ring gears. Verify OEM part number from your original unit before ordering.
