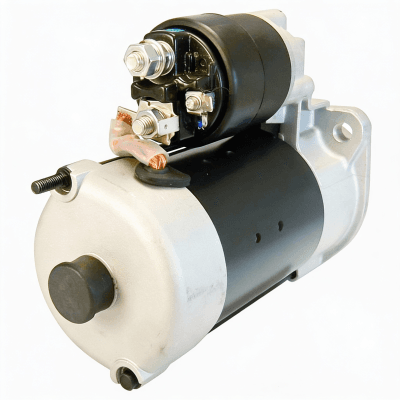

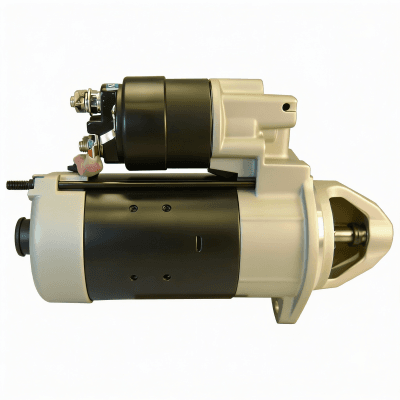

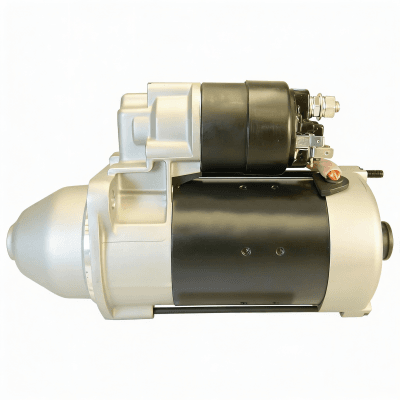

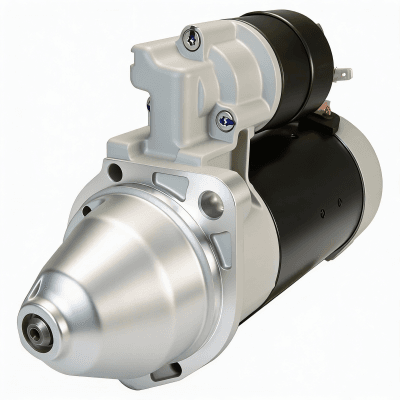

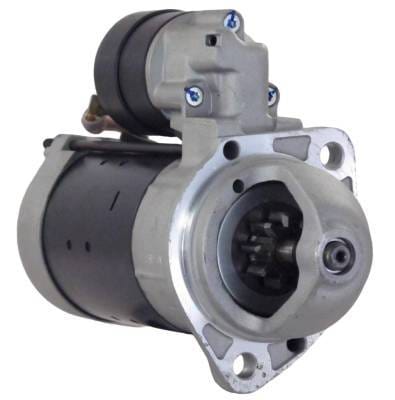

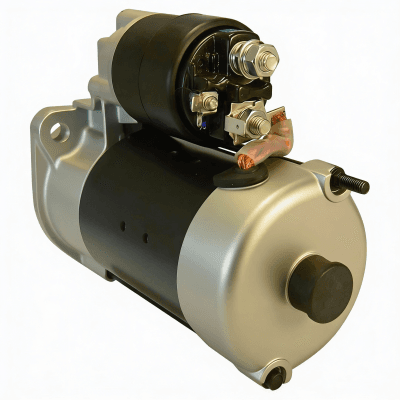

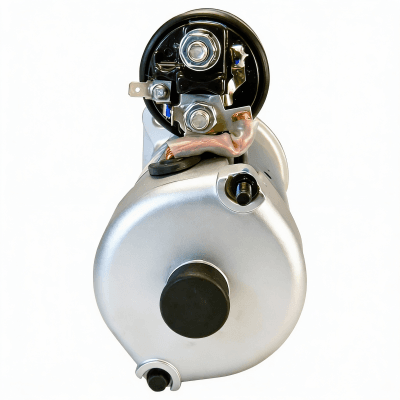

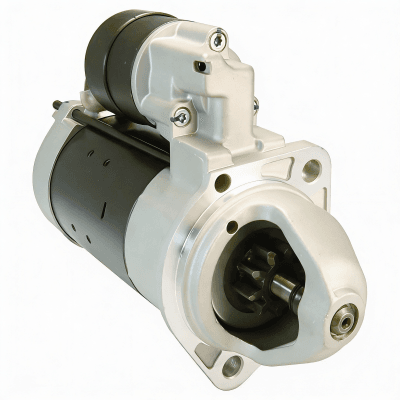

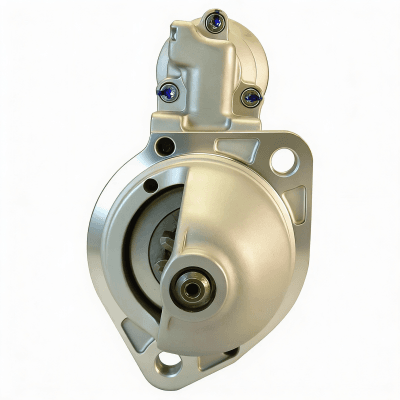

12V Starter Compatible With Genie Gth-3007 Gth-5519 Gth-5390 Gth-4390 Gth-3390 Gth-3384 Agri-625

GENIE OEM PART NUMBERS:
• 139709 - Current Genie part number
• 139709GT - Genie genuine part number
• 70376 - Previous/alternate Genie part number
• 70376GT - Genie genuine alternate
• 1223016 - Genie cross-reference number
• 1223016GT - Genie genuine cross-reference

BOSCH OEM PART NUMBERS:
• 0001223016 - Bosch original starter
• 0001223021 - Bosch alternate number
• 0001109369 - Bosch cross-reference
• 0986019820 - Bosch reman Europe number

DEUTZ / KHD OEM PART NUMBERS:
• 01181751 / 118-1751 - KHD original
• 01182384 / 118-2384 - Deutz original
• 01182124 / 118-2124 - KHD cross-reference
• 01182382 / 118-2382 - KHD cross-reference
• 01183404 / 1183404 - KHD alternate
• 01183599 / 1183599 - KHD alternate
• 04300006 / 4300006 - Deutz part number
• 04300007 / 4300007 - Deutz alternate

SPECIFICATIONS:
• Type: Starter Motor
• Unit Type: PLGR (Planetary Gear Reduction)
• Voltage: 12V
• Power: 2.3 KW / 3.08 HP
• Rotation: Clockwise (CW)
• Teeth: 9
• Gear OD: 33.7mm / 1.327in
• Mounting Ear 1: 11.0mm ID Unthreaded
• Mounting Ear 2: 11.0mm ID Unthreaded
• Weight: 14.55 lbs / 6.61 kg
• Notes: Dry Clutch Type

FITS DEUTZ 1011 SERIES ENGINES:
• F2L1011 / F2L1011F - 2-Cylinder Air-Cooled Diesel
• F3L1011 / F3L1011F - 3-Cylinder Air-Cooled Diesel, 2.05L
• F4L1011 / F4L1011F - 4-Cylinder Air-Cooled Diesel, 2.7L
• BF4L1011 / BF4M1011F - 4-Cylinder Turbocharged Diesel

FITS GENIE EQUIPMENT:
• Telescopic Boom Lifts: S-40, S-45, S-60, S-60X, S-60HD, S-60 TRAX, S-65, S-65 TRAX, S-80, S-80 XC, S-85, S-85 XC, S-100, S-100HD, S-105, S-120, S-120HD, S-125, S-3200, S-3800, SX-105 XC, SX-125 XC, SX-135 XC, SX-150, SX-180
• Articulating Boom Lifts: Z-45 XC, Z-45/22 IC, Z-45/25 IC, Z-45/25J IC, Z-51/30J, Z-60/34, Z-62/40, Z-80/60, Z-135/70, ZX-135/70
• Scissor Lifts: GS-3384, GS-3384 RT, GS-3390, GS-3390 RT, GS-4390, GS-4390 RT, GS-5390, GS-5390 RT
• Telehandlers: GTH-2506, GTH-2506 AU.2, GTH-3007, GTH-3007 AU.2, GTH-3007 FMS, GTH-3384, GTH-3390, GTH-4390, GTH-5390, GTH-5390 SPECIAL, GTH-5519, AGRI-625, AGRI-730PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
GENIE TELESCOPIC BOOM LIFTS:

S-40 / S-45:
• Genie S-40 Telescopic Boom Lift - Deutz F3L1011F 3-Cylinder Diesel, 2.05L (125 cu in)
• Genie S-45 Telescopic Boom Lift - Deutz F3L1011F 3-Cylinder Diesel, 2.05L (125 cu in)

S-60 / S-65:
• Genie S-60 Telescopic Boom Lift - Deutz F4L1011F 4-Cylinder Diesel, 2.7L (166.7 cu in)
• Genie S-60X Telescopic Boom Lift - Deutz F4L1011F 4-Cylinder Diesel
• Genie S-60HD Telescopic Boom Lift - Deutz F4L1011F 4-Cylinder Diesel
• Genie S-60 TRAX Telescopic Boom Lift - Deutz F4L1011F 4-Cylinder Diesel
• Genie S-65 Telescopic Boom Lift - Deutz F4L1011F 4-Cylinder Diesel, 2.7L (166.7 cu in)
• Genie S-65 TRAX Telescopic Boom Lift - Deutz F4L1011F 4-Cylinder Diesel

S-80 / S-85:
• Genie S-80 Telescopic Boom Lift - Deutz BF4M1011F 4-Cylinder Turbo Diesel
• Genie S-80 XC Telescopic Boom Lift - Deutz BF4M1011F Turbo Diesel
• Genie S-85 Telescopic Boom Lift - Deutz BF4M1011F 4-Cylinder Turbo Diesel
• Genie S-85 XC Telescopic Boom Lift - Deutz BF4M1011F Turbo Diesel

S-100 / S-105 / S-120 / S-125:
• Genie S-100 Telescopic Boom Lift - Deutz Diesel
• Genie S-100HD Telescopic Boom Lift - Deutz Diesel
• Genie S-105 Telescopic Boom Lift - Deutz Diesel
• Genie S-120 Telescopic Boom Lift - Deutz Diesel
• Genie S-120HD Telescopic Boom Lift - Deutz Diesel
• Genie S-125 Telescopic Boom Lift - Deutz Diesel

S-3200 / S-3800:
• Genie S-3200 Telescopic Boom Lift - Deutz Diesel
• Genie S-3800 Telescopic Boom Lift - Deutz Diesel

SX SERIES:
• Genie SX-105 XC Telescopic Boom Lift - Deutz Diesel
• Genie SX-125 XC Telescopic Boom Lift - Deutz Diesel
• Genie SX-135 XC Telescopic Boom Lift - Deutz Diesel
• Genie SX-150 Telescopic Boom Lift - Deutz Diesel
• Genie SX-180 Telescopic Boom Lift - Deutz Diesel

GENIE ARTICULATING BOOM LIFTS:

Z-45 SERIES:
• Genie Z-45 XC Articulating Boom Lift - Deutz Diesel
• Genie Z-45/22 IC Articulating Boom Lift - Deutz F4L1011F Diesel
• Genie Z-45/25 IC Articulating Boom Lift - Deutz F4L1011F Diesel
• Genie Z-45/25J IC Articulating Boom Lift - Deutz F4L1011F Diesel

Z-51 / Z-60 / Z-62 / Z-80:
• Genie Z-51/30J Articulating Boom Lift - Deutz Diesel
• Genie Z-60/34 Articulating Boom Lift - Deutz F4L1011F Diesel
• Genie Z-62/40 Articulating Boom Lift - Deutz Diesel
• Genie Z-80/60 Articulating Boom Lift - Deutz Diesel

Z-135 SERIES:
• Genie Z-135/70 Articulating Boom Lift - Deutz Diesel
• Genie ZX-135/70 Articulating Boom Lift - Deutz Diesel

GENIE SCISSOR LIFTS:

GS ROUGH TERRAIN SERIES:
• Genie GS-3384 RT Scissor Lift - Deutz Diesel
• Genie GS-3390 RT Scissor Lift - Deutz Diesel
• Genie GS-4390 RT Scissor Lift - Deutz Diesel
• Genie GS-5390 RT Scissor Lift - Deutz Diesel

GENIE TELEHANDLERS:

GTH SERIES:
• Genie GTH-2506 Telehandler - Deutz Diesel
• Genie GTH-2506 AU.2 Telehandler - Deutz Diesel
• Genie GTH-3007 Telehandler - Deutz Diesel
• Genie GTH-3007 AU.2 Telehandler - Deutz Diesel
• Genie GTH-3007 FMS Telehandler - Deutz Diesel
• Genie GTH-3384 Telehandler - Deutz Diesel
• Genie GTH-3390 Telehandler - Deutz Diesel
• Genie GTH-4390 Telehandler - Deutz Diesel
• Genie GTH-5390 Telehandler - Deutz Diesel
• Genie GTH-5390 SPECIAL Telehandler - Deutz Diesel
• Genie GTH-5519 Telehandler - Deutz Diesel

AGRI SERIES:
• Genie AGRI-625 Telehandler - Deutz Diesel
• Genie AGRI-730 Telehandler - Deutz Diesel

DEUTZ ENGINE COMPATIBILITY:
• Deutz F3L1011F - 3-Cylinder Air-Cooled Diesel, 2.05L (125 cu in), 91 x 105mm Bore x Stroke
• Deutz F4L1011F - 4-Cylinder Air-Cooled Diesel, 2.7L (166.7 cu in), 91 x 105mm Bore x Stroke
• Deutz BF4M1011F - 4-Cylinder Turbocharged Air-Cooled Diesel
