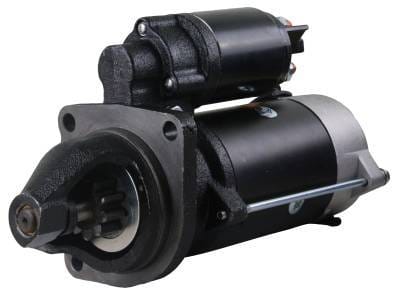

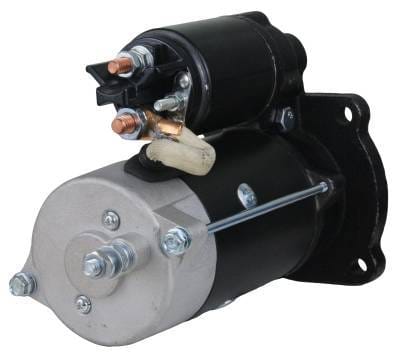

12V Starter Compatible With Cat Backhoe 416 426 426B 428 436 438 Perkins 4.236 4-Cyl 3.86L 236Ci

OEM PART NUMBERS:
• Bosch: 0-001-369-002 / 0001369002
• Bosch: 0-001-369-006 / 0001369006
• Bosch: 0-001-369-106 / 0001369106
• Caterpillar: 6T8832 / 3T8832 / 7X1361 / 0R9995 / 7E1361
• Iskra: IS0807

SPECIFICATIONS:
• Type: DD (Direct Drive) Starter Motor
• Unit Design: Bosch
• Voltage: 12V
• Power: 3.1 kW
• Rotation: Clockwise (CW)
• Teeth: 10
• Gear OD: 39.8mm / 1.567in
• Mounting: Three 10.8mm ID Unthreaded Ears
• Mounting Ear C-C 1: 4.98in / 126.5mm
• Mounting Ear C-C 2: 3.543in / 90mm
• Weight: 29.975 lbs / 13.62 kg
• Condition: New

CATERPILLAR BACKHOE LOADER APPLICATIONS:
• Cat 416 w/Perkins 4.236 4-Cyl 3.86L Diesel 62HP (1985-1993)
• Cat 426 w/Perkins 4.236 4-Cyl 3.86L Diesel 62HP (1986-1992)
• Cat 426B w/Perkins 4.236 4-Cyl 3.86L Diesel 62HP (1991-1996)
• Cat 428 w/Perkins 4.236 4-Cyl 3.86L Diesel 62HP (1986-1992)
• Cat 436 w/Perkins 4.236 4-Cyl 3.86L Diesel 62HP (1986-1992)
• Cat 438 w/Perkins 4.236 4-Cyl 3.86L Diesel 62HP (1988-1992)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
CATERPILLAR BACKHOE LOADER APPLICATIONS:
• Cat 416 Backhoe Loader w/Perkins 4.236 4-Cyl 3.86L DI NA Diesel 62HP Bosch System (1985-1993)
• Cat 426 Backhoe Loader w/Perkins 4.236 4-Cyl 3.86L DI NA Diesel 62HP Bosch System (1986-1992)
• Cat 426B Backhoe Loader w/Perkins 4.236 4-Cyl 3.86L DI NA Diesel 62HP Bosch System (1991-1996)
• Cat 428 Backhoe Loader w/Perkins 4.236 4-Cyl 3.86L DI NA Diesel 62HP Bosch System (1986-1992)
• Cat 436 Backhoe Loader w/Perkins 4.236 4-Cyl 3.86L DI NA Diesel 62HP Bosch System (1986-1992)
• Cat 438 Backhoe Loader w/Perkins 4.236 4-Cyl 3.86L DI NA Diesel 62HP Bosch System (1988-1992)

Perkins 4.236 Engine Specifications:
• Configuration: 4-Cylinder Inline
• Displacement: 236 cu in / 3.86 Liters
• Aspiration: Naturally Aspirated
• Fuel System: Direct Injection Diesel
• Power: 62HP (46.2kW) @ 2400 RPM
• Torque: 267 Nm (197 lb-ft) @ 1350 RPM
• Bore x Stroke: 98.4mm x 127.0mm (3.875in x 5.0in)
• Compression Ratio: 15.5:1
• Firing Order: 1-3-4-2

STARTER SPECIFICATIONS:
• Type: DD (Direct Drive)
• Unit Design: Bosch
• Voltage: 12V
• Power: 3.1 kW
• Rotation: Clockwise (CW)
• Tooth Count: 10
• Gear OD: 39.8mm / 1.567in
• Mounting: Three 10.8mm ID Unthreaded Ears
• Mounting Ear C-C 1: 4.98in / 126.5mm
• Mounting Ear C-C 2: 3.543in / 90mm
• Weight: 29.975 lbs / 13.62 kg
• Condition: New
