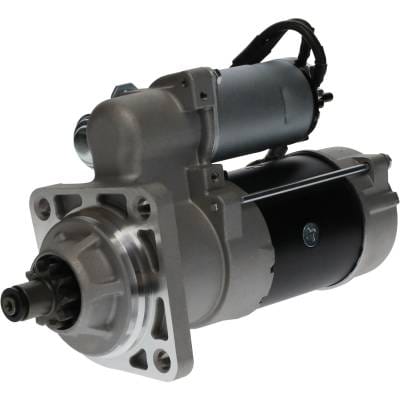

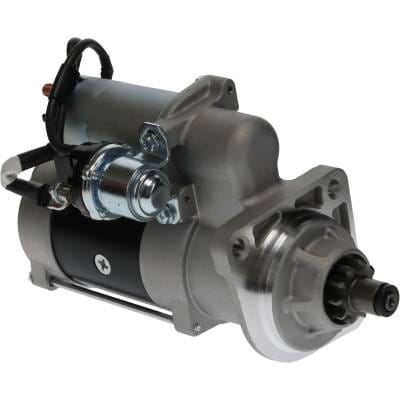

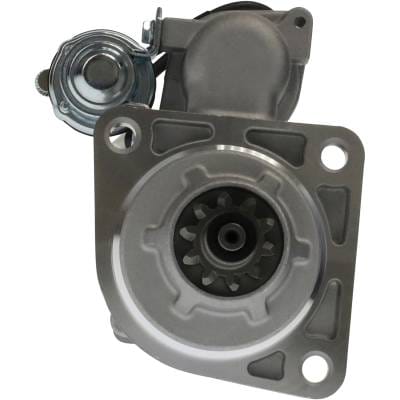

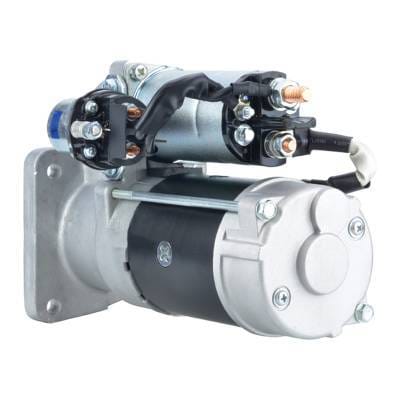

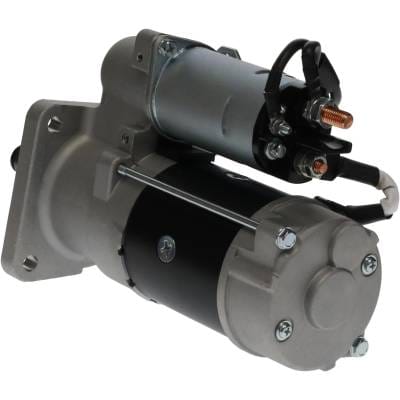

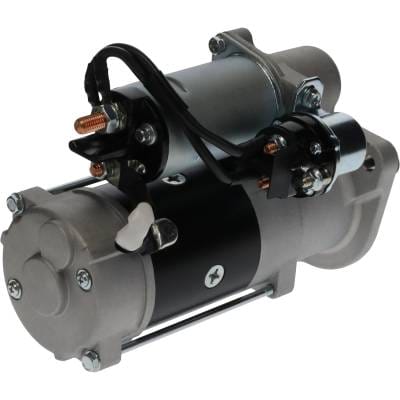

12V Starter Compatible With 2008-2017 Freightliner Mt45 Mt55 B2 S2 Chassis Cummins Isb 6.7L Diesel

OEM PART NUMBERS:
• Delco: 8200571, 8200196, 8300064, 8200796
• Cummins: 4996706
• Denso: 428000-7090, 438000-3110
• Freightliner: 2132-8200571 / 21328200571
SPECIFICATIONS:
• Family: Delco 29MT, Type 500
• Voltage: 12V
• Type: PLGR (Planetary Gear Reduction)
• Rotation: CW (Clockwise)
• Tooth Count: 10
• Gear OD: 40mm / 1.575in
• Power: 2.9kW / 3.89HP
• Length: 306mm / 12.047in
• Solenoid Position: 315 Degrees
• Mounting: SAE 1, 3 Ears, 11.0mm Unthreaded
• Mounting Ear Center to Center: 89mm / 3.504in
• Registry OD: 89mm / 3.504in
• Wet Clutch Seal: Yes
• Includes Control Relay
• Weight: 19.12 lbs / 8.69 kg
• Condition: New
APPLICATION:
• Freightliner 108SD/114SD/M2 100/M2 106/M2 112/MT45/MT55 w/ Cummins ISB 6.7L (2007-2018)
• Freightliner B2/S2/S2RV/MB-65/MBC/XBA-XCS Chassis w/ Cummins ISB 6.7L (2008-2017)
• Blue Bird / Thomas Built / Van Hool Bus w/ Cummins ISB 6.7L (2007-2015)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
FREIGHTLINER TRUCKS:
• 108SD Cummins ISB 6.7L Diesel (2012-2016)
• 114SD Cummins ISB 6.7L Diesel (2012-2015)
• Business Class M2 100 Cummins ISB 6.7L Diesel (2007-2015)
• M2 106 Cummins ISB 6.7L Diesel (2007-2016)
• M2 106 Cummins B6.7 6.7L Diesel (2017-2018)
• M2 112 Cummins B6.7 6.7L Diesel (2017-2018)
• MT45/MT55 Cummins ISB 6.7L Diesel (2008-2017)
FREIGHTLINER CHASSIS / BUS:
• B2 Chassis Cummins ISB 6.7L Diesel (2008-2016)
• MB-65 Cummins ISB 6.7L Diesel (2015-2016)
• MBC Cummins ISB 6.7L Diesel (2015-2016)
• S2/S2RV Cummins ISB 6.7L Diesel (2015-2016)
• S2RV Cummins B6.7 7.0L Diesel (2017)
• XBA/XBP/XBR/XBS Cummins ISB 6.7L Diesel (2015-2016)
• XCL/XCM/XCR/XCS Cummins ISB 6.7L Diesel (2013-2016)
BLUE BIRD BUS:
• All Models Cummins ISB 6.7L Diesel (2007-2015)
THOMAS BUILT BUS:
• All Models Cummins ISB 6.7L Diesel (2007-2015)
VAN HOOL BUS:
• T2100/T2140/T2145 Cummins ISB 6.7L Diesel (2009-2013)
NOTE: Verify OEM part number before ordering.
