12V Starter Compatible With 1983-1997 Hino Fd16 Fe16 Ff17 Sg19 H06c 6.5L H07c 6.8L Diesel Cw Hino

OEM PART NUMBERS:
• Hino: 28100-1670 / 281001670
• Hino: 28100-1670A / 281001670A
• Hino: 28100-1671A / 281001671A
• Hino: 28100-1672A / 281001672A

SPECIFICATIONS:
• Voltage: 12V • Starter Type: DD (Direct Drive) • Rotation: CW (Clockwise) • Tooth Count: 10 • Power: 4kW / 5.36HP • Gear OD: 39.9mm / 1.571in • Mounting: 3x 11.2mm ID Unthreaded • Housing: Rotatable DE Housing • Weight: 38.6 lbs / 17.55 kg • Condition: New

APPLICATION:
• Hino FC/FD/FE/FF/FG/GC/LP/SF/SG Series Trucks (1983-1997)
• Engines: H06C 6.5L, H07C 6.8L, W06D 6.0L, W06E 6.0L Diesel

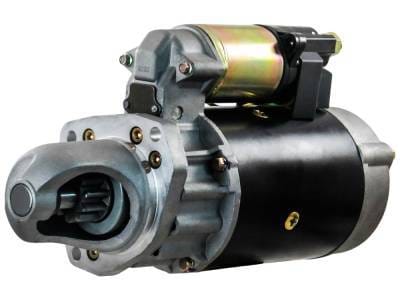

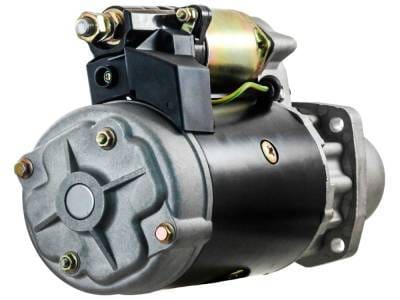

12V Starter Motor — Hino Truck H06C H07C W06D W06E Diesel
Direct replacement DD starter motor for Hino medium-duty trucks. 12-volt, 10-tooth, 4kW clockwise rotation with rotatable DE housing and three 11.2mm unthreaded mounting ears. Replaces Hino 28100-1670, 28100-1670A, 28100-1671A, and 28100-1672A.PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
HINO FC SERIES:
• FC W06D 6.0L Diesel (1984-1988)

HINO FD SERIES:
• FD16 H06C 6.5L / H07C 6.8L Diesel (1983-1989)
• FD17 H06C 6.5L / H07C 6.8L Diesel (1985-1989)
• FD20 H06C 6.5L Diesel (1992)
• FD2218 H06C 6.5L Diesel (1993-1997)

HINO FE SERIES:
• FE W06E 6.0L Diesel (1985-1988)
• FE16/FE17/FE19 H06C 6.5L / H07C 6.8L Diesel (1983-1989)
• FE20 H06C 6.5L Diesel (1992)
• FE2618/FE3020 H06C 6.5L Diesel (1993-1997)

HINO FF SERIES:
• FF17/FF19 H06C 6.5L / H07C 6.8L Diesel (1983-1987)
• FF20 H06C 6.5L Diesel (1992)
• FF23 H06C 6.5L Diesel (1987-1989)
• FF3018 H06C 6.5L Diesel (1993-1997)

HINO FG/GC/LP SERIES:
• FG19 H06C 6.5L Diesel (1984-1985)
• GC20 H06C 6.5L Diesel (1992)
• LP H06C 6.5L Diesel (1993-1997)

HINO SF/SG SERIES:
• SF17 H06C 6.5L / H07C 6.8L Diesel (1988)
• SG19 H06C 6.5L / H07C 6.8L Diesel (1988)
• SG20 H06C 6.5L Diesel (1992)
• SG23/SG231 H06C 6.5L Diesel (1987-1988)
• SG3320/SG3323 H06C 6.5L Diesel (1993-1997)
• SG5523 H06C 6.5L Diesel (1995-1997)

NOTE: Verify OEM part number from your original unit before ordering to ensure proper fitment.
