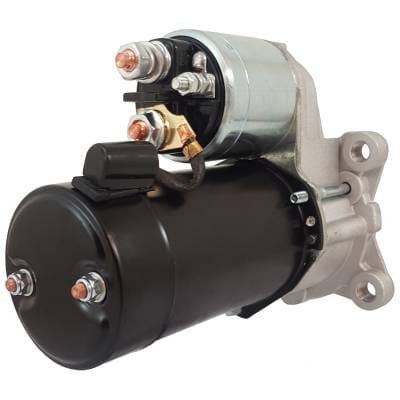

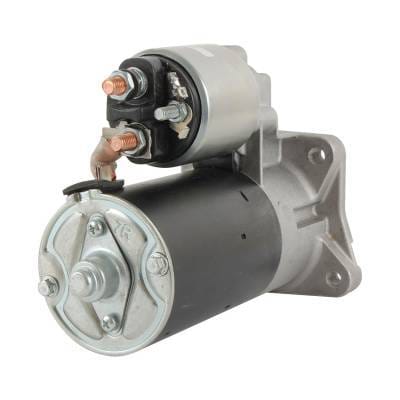

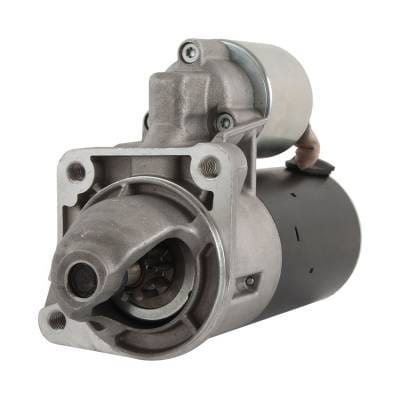

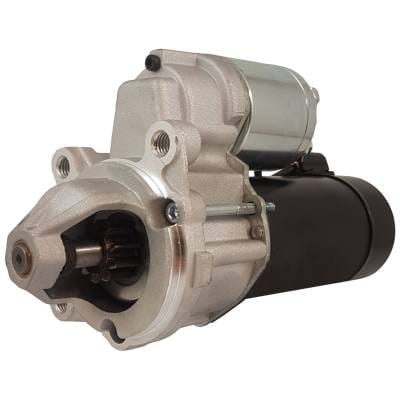

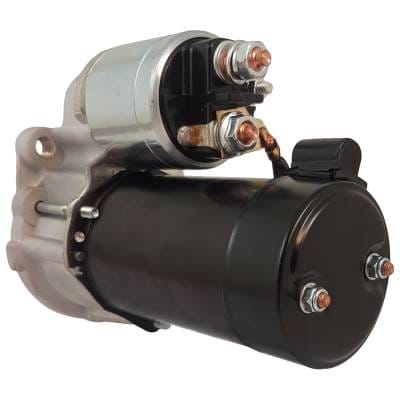

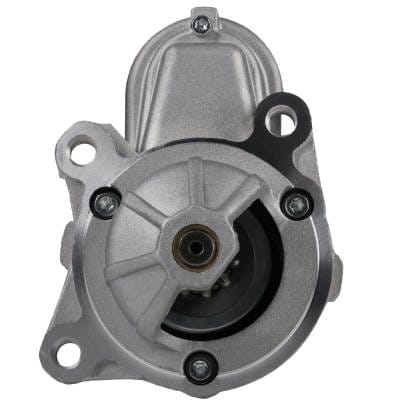

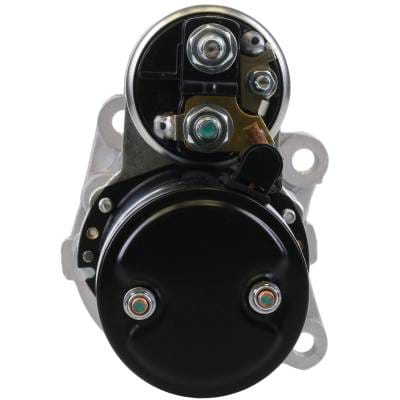

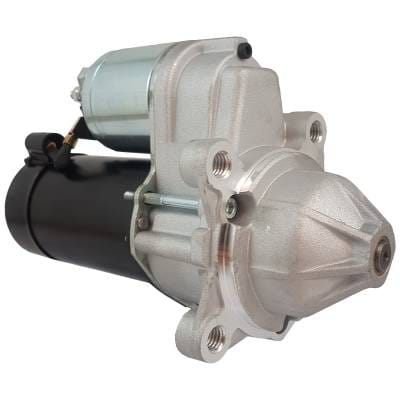

12V Starter Compatible With 1980-1990 European Escort Iii Iv 1.1L 1.3L 1.6L Cw Bosch 0001211512 Ford

OEM PART NUMBERS:
• Bosch: 0001107014 / 0001107027 / 0001107028
• Bosch: 0001211227 / 0001211232 / 0001211512
• Bosch: 9000333115 / 9000333116
• Ford: 83FB-11000-AA / 84FB-11000-BA / 84FX-11000-BA
• Ford: 92AB-11000-GA / 92AB-11000-GB / 92AB-11000-JA
• Ford: 91AB-11000-LB / 1BYU-11000-AA / D8RZ-11002-A / SAE714
• Hella: 8EA725976001 / 8EA726045001
• Letrika: 11.130.963 / IS0483 / AZE1210
• Delco: DRS0390 / DRS3565
• Mahle: IS0483 / MS179
• Motorcraft: SAE-714
• Delphi: SX3143
• Lucas: LRS00324 / LRS00732
• Valeo: 432653 / 433287 / 458234 / 558315 / VS101 / VS261 / VS263
• JLG: 7019668

SPECIFICATIONS:
• Voltage: 12V
• Power: 1.1kW
• Rotation: CW (Clockwise)
• Tooth Count: 10
• Gear OD: 1.035in / 26.3mm
• Mounting: Three M10-1.5 Threaded Ears
• Ear Center-to-Center 1: 4.035in / 102.5mm
• Ear Center-to-Center 2: 2.626in / 66.7mm
• Ear Center-to-Center 3: 2.569in / 65.25mm
• Registry OD: 2.992in / 76mm
• Terminal: M8 B+ and Motor Studs, M5 S Stud
• Length: 6.929in / 176mm
• Weight: 7.69 lbs / 3.5 kg
• Condition: New

APPLICATION:
• European Ford Escort III 1.3L/1.6L (1980-1985)
• European Ford Escort III Convertible 1.6L (1984-1985)
• European Ford Escort III Estate 1.3L/1.6L (1980-1985)
• European Ford Escort IV 1.1L (1986-1990)
• European applications only

12V Starter - European Ford Escort III IV 1.1L 1.3L 1.6L
OEM replacement starter motor for European Ford Escort III 1980-1985 and Escort IV 1986-1990 with 1.1L through 1.6L gas engines. Bosch-type construction with detailed mounting specifications for precise fitment. Replaces Bosch 0001211512/9000333115, Ford 92AB-11000-GB, Hella 8EA725976001, and Letrika AZE1210.PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
EUROPEAN FORD ESCORT III (GAA):
• Escort III 1.3L 51kW Engine JPA (1980-1985)
• Escort III 1.6L 58kW Engine LP1/LPA (1980-1985)
• Escort III 1.6L XR3i 77kW Engine LR1/LRA (1983-1985)

EUROPEAN FORD ESCORT III CONVERTIBLE (ALD):
• Escort III Convertible 1.6L 58kW Engine LP1/LPA (1984-1985)
• Escort III Convertible 1.6L 77kW Engine LR1/LRA (1984-1985)

EUROPEAN FORD ESCORT III ESTATE (AWA):
• Escort III Estate 1.3L 51kW Engine JPA (1981-1985)
• Escort III Estate 1.6L 58kW Engine LP1/LPA (1980-1985)

EUROPEAN FORD ESCORT IV (GAF/AWF/ABFT):
• Escort IV 1.1L 37kW Engine GSG (1986-1990)

NOTE: European applications only. Verify OEM part number before ordering.
