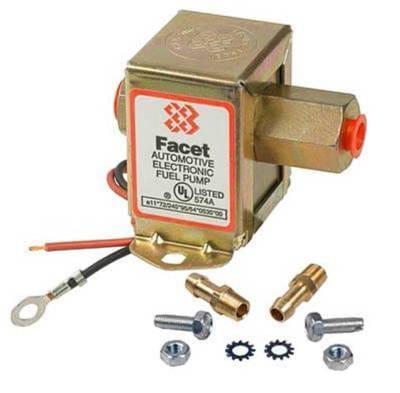

12V Solid State Electric Fuel Pump Kit Compatible With Case 175305C1 John Deere Ah65307 Ford

FACET / PUROLATOR OEM PART NUMBERS:
• 40106 - Cube Solid State Fuel Pump
• 40106N - Pump Only (No Kit)
• 40100 - Base Pump Number
• 40100N - Base Pump (No Kit)
• 480616 - Alternate Facet Number
• SS502 - Facet Specification Code
• FEP12SV - Installation Kit Number
• FEP12S - Kit Variant
• PRO12SM - Pro Series Kit
• PRO12SV - Pro Series Kit Variant
• FEP06SV - Related Kit Number

CASE / CASE NEW HOLLAND / NAVISTAR:
• 175305C1
• 153879C1
• S226800

FORD:
• XN655395

JOHN DEERE:
• AH65307

FEDERAL MOGUL:
• P55469

CRUSADER MARINE:
• 80784

TELEFLEX:
• 908112

TENNANT:
• 54230

HYDRA-MAC:
• 4100-037

PIERCE:
• EP13
• EP12E

ORBITRADE MARINE:
• AB268500

WHITE FARM EQUIPMENT:
• 31-1818310

WINCO GENERATORS:
• 92766-000

TYMCO:
• 4203

STANDARD MOTOR:
• EFP13S

KEM:
• EFP-16W

SPECIFICATIONS:
• Type: Cube Solid State Electronic Fuel Pump
• Voltage: 12V DC
• Flow Rate: 32 GPH (120 Liters/Hour)
• Max Shutoff Pressure: 7 PSI (0.48 Bar)
• Min Shutoff Pressure: 4 PSI (0.27 Bar)
• Fitting Type: 1/8-27 NPTF Internally Threaded
• Min Dry Lift: 12in (30.48cm)
• Max Fuel Lift: 36in From Tank Bottom
• Negative Lead: 0.25in Ring Terminal
• Operating Temp: -40°F to +180°F
• MTBF: 6000 Hours Average Run Time
• Check Valve: No
• Positive Shutoff Valve: No
• Quiet Valve: No
• Construction: All Steel Case, Corrosion Plated
• Salt Spray Resistance: Over 100 Hours
• Weight: 1.27 lbs (0.58 kg)
• HP Rating: Up to 150 HP
• Polarity: Ground Positive or Negative (Reverse Polarity Protection)

KIT INCLUDES:
• 40106N Solid State Fuel Pump
• (2) Straight 5/16in Fittings
• (2) Nuts
• (2) Screws
• (2) WashersPRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
UNIVERSAL FUEL PUMP - COMPATIBLE WITH ALL CARBURETOR-EQUIPPED ENGINES:

AUTOMOTIVE:
• All Carburetor-Equipped Cars - Domestic and Import
• All Carburetor-Equipped Vans
• All Carburetor-Equipped Light Trucks
• All Carburetor-Equipped SUVs

AGRICULTURAL EQUIPMENT:
• Case / Case IH - Tractors, Combines, Harvesters (Part 175305C1, S226800)
• John Deere - Tractors, Combines, Harvesters (Part AH65307)
• White Farm Equipment - Tractors, Implements (Part 31-1818310)
• Navistar / International Harvester - Tractors, Equipment (Part 153879C1, 175305C1)

MARINE:
• Crusader Marine Engines (Part 80784)
• All Carbureted Inboard Marine Engines
• All Carbureted Outboard Marine Engines
• Orbitrade Marine Applications (Part AB268500)
• Teleflex Marine Systems (Part 908112)

INDUSTRIAL AND CONSTRUCTION:
• Hydra-Mac Skid Steer Loaders (Part 4100-037)
• Tennant Floor Scrubbers and Sweepers (Part 54230)
• Tymco Street Sweepers (Part 4203)
• All Stationary Industrial Engines
• Construction Equipment with Carbureted Engines
• Utility Equipment

GENERATORS AND POWER EQUIPMENT:
• Winco Generators (Part 92766-000)
• All Carbureted Generator Sets (Gen-Sets)
• Stationary Power Plants
• Emergency Backup Generators

FUEL SYSTEM APPLICATIONS:
• Fuel Priming Systems
• Fuel Transfer Applications
• Auxiliary Fuel Systems
• Replacement for Mechanical Fuel Pumps
• Electric Fuel Pump Conversion Kits

FUEL COMPATIBILITY:
• Leaded and Unleaded Gasoline
• Diesel Fuel
• Biodiesel
• E85 Ethanol Blend
• Blended Fuels
• Pure Alcohol
• Fuel Additives

NOTE: Suitable for engines up to approximately 150 horsepower. Can be combined in series or parallel to achieve higher pressure or flow requirements.
