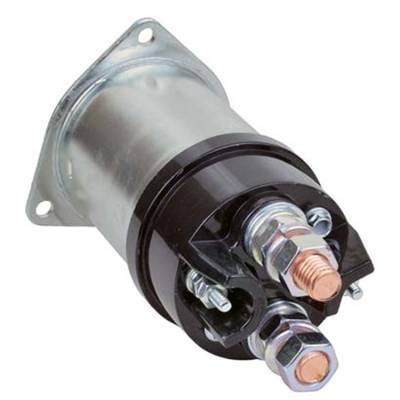

12V Solenoid Switch Compatible With International 3000 3900 Bus 7100 7700 Severe Service Ihc Dt-466

OEM PART NUMBERS:
• Delco: 1115645
• Prestolite: MS2506
• Ford: E6HZ-11002-C, E6HT11001CA, F6HZ-11002-FA, F6HZ11002BA, F6HZ11002HA

FITS STARTER PART NUMBERS:
• Delco: 10461126, 10461132, 10461133, 10461151, 10461162, 10478978, 10478983, 10478992, 10479104, 10479105, 10479162, 1990362, 1990363, 1990365, 1990484, 1990486-1990490, 1990492, 1990494

SPECIFICATIONS:
• Unit Type: Delco
• Mount Type: 3 Hole Mount Flange
• Voltage: 12V
• Terminal Battery: 1/2-13
• Terminal Motor: 1/2-13
• Terminal Switch: 10-32 Post (RH)
• Terminal Ground: 10-32 Post (LH)
• Terminal Count: 4 Terminals
• Type: Insulated Base
• Mounting: 1/4 Unthreaded
• Mounting Hole Location: 04:00
• OD Body: 69mm
• Weight: 3 lbs
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
INTERNATIONAL 3000-3900 BUS:
• IHC 3000-3900 Bus Cat C-16/IHC 7.3L/DT-360/DT-408/DT-466 - 1985-2007

INTERNATIONAL 5000-5900 SEVERE SERVICE:
• IHC 5000-5900 Cat 3406/C-10/C-12/C-13/C-15/C-16 - 1988-2007
• IHC 5000-5900 Cummins ISM/ISX/L-10/M11/N14/NTC-855 - 1988-2007
• IHC 5000-5900 IHC DT-530 - 1997-2003

INTERNATIONAL 4000-4900 MEDIUM DUTY:
• IHC 4000-4900 IHC DT-360/DT-408/DT-466/DT-530/7.3L - 1984-2007
• IHC 4000-4900 Cat 3406/C-16/Cummins N14 - 1997-2003

INTERNATIONAL 7100-7700 SEVERE SERVICE:
• IHC 7100-7700 Cat C-10/C-11/C-12/C-13/C-15/C-16 - 1999-2007
• IHC 7100-7700 Cummins ISM/ISX - 2003-2007
• IHC 7100-7700 IHC DT-408/DT-466/DT-530/DT-570 - 1990-2007

INTERNATIONAL 8100-8600 HEAVY DUTY:
• IHC 8100-8600 Cat 3176/3406/C-10/C-12/C-13/C-16 - 1988-2007
• IHC 8100-8600 Cummins ISM/L-10/M11/N14/NTC-855 - 1988-2007
• IHC 8100-8600 DD 50/60 Series - 1992-1998
• IHC 8100-8600 IHC DT-466/DT-530/DT-570 - 1990-2007

INTERNATIONAL 9100-9900 HEAVY DUTY:
• IHC 9100-9900 Cat 3176/3406/C-10/C-11/C-12/C-13/C-15/C-16 - 1988-2007
• IHC 9100-9900 Cummins ISM/ISX/L-10/M11/N14/NTC-855/Signature - 1986-2007
• IHC 9100-9900 DD 60 Series - 1992-2003

INTERNATIONAL MEDIUM DUTY SERIES:
• IHC 1754/1954 IHC DT-360/DT-408/DT-466/9.0L - 1984-1997
• IHC 2200-2275 Cummins L-10/NTC/DD 6V-92/IHC DT-466 - 1984-1987
• IHC 2554/2564/2654 IHC DT-408/DT-466/Cat C-16 - 1984-2003
• IHC 2574/2575/2674/2675 Cat/Cummins/DD/IHC - 1982-2003
• IHC 4000/4300/4400/4700/4800 DT-466 - 1993-2007

INTERNATIONAL LEGACY:
• IHC Transtar Cat 3406/3408/Cummins/DD/IHC V-800 - 1975-1987
• IHC Cargostar IHC 9.0L/DT-466 - 1984-1987
• IHC Paystar IHC DT-466/V-800 - 1984-1989
• IHC S Series Cat/Cummins/IHC - 1984-1987
• IHC 7588/7788 Agricultural IHC V-800 - 1984
