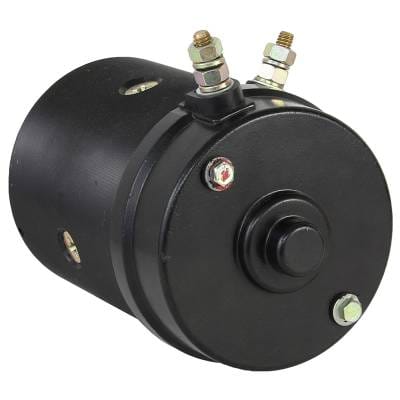

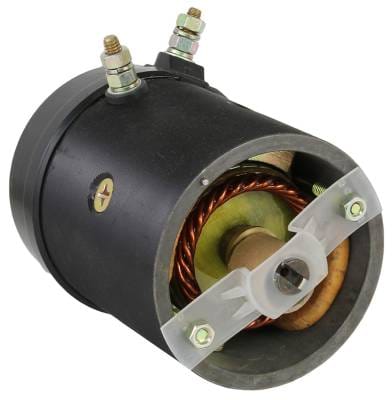

12V Snow Plow Motor Compatible With Fisher Western Ultramount Unimount Minute Mount 2 Snowplow Pump

OEM PART NUMBERS:
• Prestolite: 46-2473 (462473)
• Prestolite: 46-2584 (462584)
• Prestolite: 46-3618 (463618)
• Prestolite: 46-3938 (463938)
• Prestolite: 46-4175 (464175)
• Prestolite: MKW4009
• Prestolite: MUE6103
• Prestolite: MUE6111, MUE6111S
• Prestolite: MUE6206AS
• Prestolite: MUE6306, MUE6306A
• Prestolite: MUE7001
• Western/Fisher: 21500, MPV21500
• Western: 56133, 56363
• Fisher: A5819
• SnowEx: D6320, 52281

SPECIFICATIONS:
• Voltage: 12V DC
• Power: 1.2KW
• Rotation: Clockwise (CW)
• OD: 114.1mm (4.492")
• Shaft OD: 16mm (0.63") Slotted
• Length: 179.4mm (7.063")
• Terminals: Dual 5/16-18 Posts
• Current Type: DC
• Fully Insulated
• Thru Bolts at 12 and 4:00
• Weight: 15.85 lbs (7.21 kg)
• Note: Must Reuse Drive End Plate

FITS FISHER SNOWPLOWS:
• LD, SD, HD, HD2, HDX Straight Blades
• Extreme V, XV2 V-Plows
• XLS Expandable Wing
• Minute Mount, Minute Mount 2 Systems

FITS WESTERN SNOWPLOWS:
• Ultramount, Unimount Systems
• MVP3, MVP Plus V-PlowsPRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
FISHER SNOWPLOWS:

STRAIGHT BLADE MODELS:
• Fisher LD (Light Duty) Snowplow
• Fisher SD (Standard Duty) Snowplow
• Fisher HD (Heavy Duty) Snowplow
• Fisher HD2 Snowplow
• Fisher HDX Snowplow

V-PLOW MODELS:
• Fisher Extreme V Snowplow
• Fisher XV2 V-Plow

EXPANDABLE / WING MODELS:
• Fisher XLS Expandable Wing Snowplow

MOUNTING SYSTEMS:
• Fisher Minute Mount Snowplow Systems
• Fisher Minute Mount 2 Snowplow Systems

WESTERN SNOWPLOWS:

STRAIGHT BLADE MODELS:
• Western Ultramount Snowplow Systems
• Western Unimount Snowplow Systems

V-PLOW / WING MODELS:
• Western MVP3 V-Plow
• Western MVP Plus V-Plow

SNOWEX SNOWPLOWS:
• SnowEx Snowplow Applications

NOTE: 4-1/2" motor body, slotted shaft. Must reuse drive end plate from original motor. Replaces older motors 56133 and A5819. Motor plate 49084 may be needed for conversion from older pump styles.
