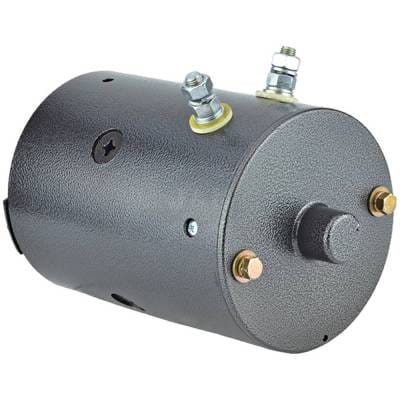

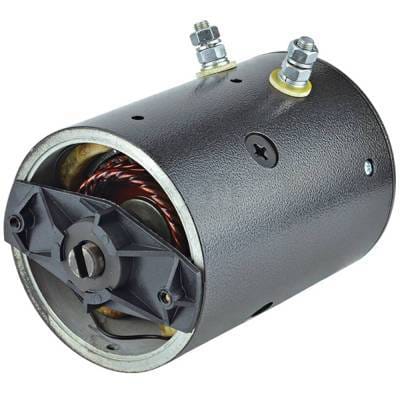

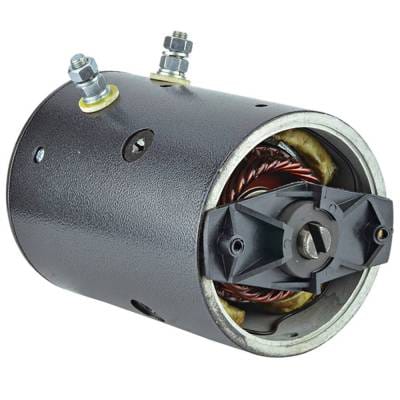

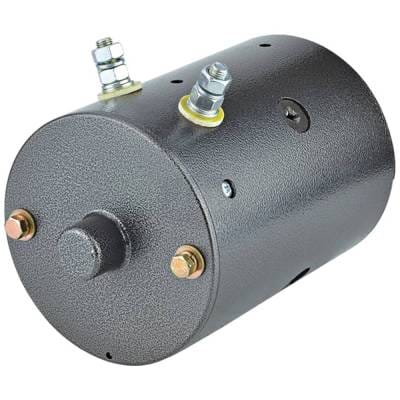

12V Snow Plow Motor Compatible With Fisher Western Snow Plows Cw Insulated Ground 4 Field Coils

OEM PART NUMBERS:
• Prestolite: MUE6306 / MUE6306S / MUE6306A / MUE6302 / MUE6302S
• Western Motor: W-6306
• Haldex-Barnes: 220-1115

SPECIFICATIONS:
• Voltage: 12V DC
• Rotation: CW (Clockwise)
• Power: 1.2kW / 1.61 HP
• Ground: Insulated (Fully Insulated)
• Field Coils: 4
• Shaft OD: 16mm (0.63 in) - Slotted
• Terminal: Dual 5/16-18 Posts (2-Terminal)
• Field Housing OD: 114.1mm / 4.492 in
• Overall Length: 179.4mm / 7.063 in
• Thru Bolts: At 3:00 and 9:00 Position
• Weight: 15.85 lbs / 7.21 kg
• Supplied Without Drive End (DE) Frame
• Condition: New

APPLICATION:
• Fisher Snow Plow Systems
• Western Snow Plow Systems

RELATED PART NUMBERS:
• 482777 - Same motor with thru bolts at 12:00 and 6:00 position
• 553343 - Same motor with bearing CE end
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
FISHER SNOW PLOW APPLICATIONS:
• Fisher Snow Plow Hydraulic Pump Systems
• Fisher Snow Plow Motor Applications

WESTERN SNOW PLOW APPLICATIONS:
• Western Snow Plow Hydraulic Pump Systems
• Western Snow Plow Motor Applications

MOTOR FEATURES:
• Insulated Ground (Fully Insulated)
• 4 Field Coils
• 16mm (0.63 in) Slotted Shaft
• Dual 5/16-18 Terminal Posts (2-Terminal)
• 4.492-Inch (114.1mm) Field Housing Diameter
• 7.063-Inch (179.4mm) Overall Length
• Thru Bolts at 3:00 and 9:00 Position
• 1.2kW / 1.61 HP Output
• 12V DC Clockwise Rotation
• 15.85 lbs (7.21 kg)

IMPORTANT INSTALLATION NOTES:
• Motor is supplied WITHOUT Drive End (DE) frame/housing
• You must reuse the drive end housing from your original motor
• Thru bolts at 3:00 and 9:00 position
• For 12:00 and 6:00 bolt position, see part 482777
• For bearing CE end version, see part 553343

NOTE: Verify OEM part number from your original unit before ordering to ensure proper fitment.
