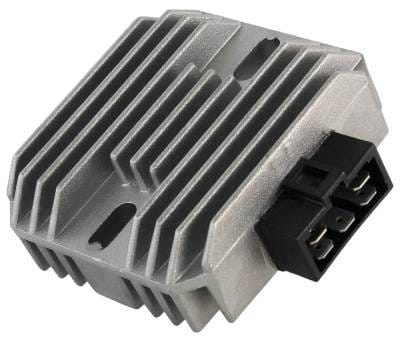

12V Scooter Voltage Regulator Compatible With Aprilia Atlantic 200 Sportcity 125 Benelli Adiva

OEM PART NUMBERS:
• 82501R - Aprilia/Piaggio OEM
• AP8127418 - Aprilia OEM
• 58090R - Piaggio OEM
• 58090R5 - Piaggio OEM (supersedes 58090R)
• 486062 - Piaggio OEM
• 639169 - Piaggio OEM
• 02601600 - Malaguti OEM
• 825488 - Piaggio OEM
• 735871 - Peugeot OEM
• 737918 - Peugeot OEM
• 58096R - Piaggio OEM
• JC32800X9200
• JC32800X92000

SPECIFICATIONS:
• Voltage: 12V
• Connector: 5-Pin, Single Plug
• Dimensions: 83mm W x 80mm L x 28mm H (3-1/16" x 3-1/16" x 1")
• Mounting Holes: 59mm Center-to-Center
• Charging Voltage: 14.5V ±0.5V
• Maximum Charging Current: 50A / 500W
• Open Circuit Voltage: 15V
• Operating Temperature: -20°C to 85°C
• Heat Sink Fins for Cooling
• Carbureted Models Only

FITS APRILIA SCOOTERS:
• Atlantic 200cc, 250cc | Mojito 125cc, 150cc | Scarabeo 125cc, 200cc, 250cc | Sportcity 125cc, 200cc | SR 50cc

FITS BENELLI SCOOTERS:
• Adiva 125cc, 150cc

FITS DERBI SCOOTERS:
• Boulevard 125cc, 150cc, 200cc | GP1 250cc | Rambla 125cc

FITS GILERA SCOOTERS:
• DNA 4T 125cc, 180cc | Nexus 125cc | Runner Purejet 50cc | VX Runner 125cc | VXR Runner 180cc, 200cc

FITS ITALJET SCOOTERS:
• Jet Set 125cc, 150cc | Torpedo 125cc, 150cc

FITS MALAGUTI SCOOTERS:
• F12 Max 200cc, 250ccPRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
APRILIA:

ATLANTIC:
• Aprilia Atlantic 200cc Carbureted - 2002, 2003, 2004, 2005, 2006
• Aprilia Atlantic 250cc Carbureted - 2003, 2004, 2005, 2006

MOJITO:
• Aprilia Mojito 125cc Carbureted - 2003, 2004, 2005, 2006, 2007
• Aprilia Mojito 150cc Carbureted - 2003, 2004, 2005, 2006, 2007

SCARABEO:
• Aprilia Scarabeo 125cc Carbureted - 2003, 2004, 2005, 2006, 2007, 2008, 2009
• Aprilia Scarabeo 200cc Carbureted - 2003, 2004, 2005, 2006, 2007, 2008, 2009
• Aprilia Scarabeo 250cc Carbureted - 2004, 2005, 2006

SPORTCITY:
• Aprilia Sportcity 125cc Carbureted - 2004, 2005, 2006
• Aprilia Sportcity 200cc Carbureted - 2004, 2005, 2006

SR:
• Aprilia SR 50cc Carbureted - 2003, 2004, 2005, 2006, 2007, 2008

BENELLI:

ADIVA:
• Benelli Adiva 125cc Carbureted
• Benelli Adiva 150cc Carbureted

DERBI:

BOULEVARD:
• Derbi Boulevard 125cc Carbureted
• Derbi Boulevard 150cc Carbureted
• Derbi Boulevard 200cc Carbureted

GP1:
• Derbi GP1 250cc Carbureted

RAMBLA:
• Derbi Rambla 125cc Carbureted

GILERA:

DNA 4T:
• Gilera DNA 4T 125cc Carbureted
• Gilera DNA 4T 180cc Carbureted

NEXUS:
• Gilera Nexus 125cc Carbureted

RUNNER:
• Gilera Runner Purejet 50cc Carbureted
• Gilera VX Runner 125cc Carbureted
• Gilera VXR Runner 180cc Carbureted
• Gilera VXR Runner 200cc Carbureted

ITALJET:

JET SET:
• Italjet Jet Set 125cc Carbureted
• Italjet Jet Set 150cc Carbureted

TORPEDO:
• Italjet Torpedo 125cc Carbureted
• Italjet Torpedo 150cc Carbureted

MALAGUTI:

F12 MAX:
• Malaguti F12 Max 200cc Carbureted
• Malaguti F12 Max 250cc Carbureted

⚠️ FOR CARBURETED MODELS ONLY. This regulator WILL NOT WORK on fuel injected engines. Verify OEM part number from your original unit before ordering.
