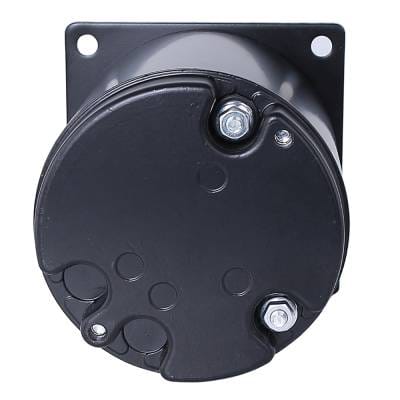

12V Salt Spreader Motor Compatible With Meyer Buyers Diamond 36218 Hm02223 4854440 Pr2-0075N

MEYER OEM PART NUMBERS:
• 36218
• 36402

BUYERS OEM PART NUMBERS:
• 0202000
• 0202000AM
• 3014441

UNITED TECHNOLOGIES OEM PART NUMBERS:
• 4854420-M048HM (4854420M048HM)
• 4854420MO48HM
• 4854420
• 4854440
• HM02223
• HM48544

WESTERN MOTOR OEM PART NUMBERS:
• W-8805 (W8805)

OTHER OEM PART NUMBERS:
• Prestolite: MZD4001
• Johnson Electric: 4854420, 4854440, HM02223
• Barsanco: 690-060, 690-060A
• Ohio Electric: B422340X6329
• PR2-0075N (PR20075N)
• HM4854420
• 0462800108
• 9107
• 430-21001 (43021001)

SPECIFICATIONS:
• Voltage: 12V DC
• Power: 0.13kW / 0.17HP
• Rotation: Reversible
• Shaft OD: 12.7mm (1/2 inch)
• Overall Length: 176.3mm / 6.941 in
• Weather Sealed: Yes
• Weight: 14 lbsPRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
BUYERS SALT SPREADER APPLICATIONS:
• Buyers Salt Spreader Units - All Models
• Buyers Salt Dogg Salt Spreaders
• Buyers TGSUV Series Tailgate Spreaders
• Buyers Heavy Duty Salt Spreaders

MEYER SALT SPREADER APPLICATIONS:
• Meyer Salt Spreader Units - All Models
• Meyer M-2100 Series
• Meyer M-5000 Series
• Meyer Heavy Duty Salt Spreaders

DIAMOND SALT SPREADER APPLICATIONS:
• Diamond Salt Spreader Systems
• Diamond Heavy Duty Units

ADDITIONAL APPLICATIONS:
• Johnson Electric Salt Spreaders
• United Technologies Salt Spreader Units
• Western Motor Salt Spreader Applications

MOTOR SPECIFICATIONS:
• Voltage: 12V DC
• Power: 0.13kW / 0.17HP
• Rotation: Reversible
• Shaft Outside Diameter: 12.7mm (1/2 inch)
• Shaft Length: 35mm
• Shaft Type: Includes Keyway & Woodruff Key
• Field Housing OD: 122.5mm / 4.823 in
• Field Housing Length: 110mm
• Overall Length: 176.3mm / 6.941 in
• End of Unit to Mounting Brackets: 126mm
• Terminal Size: (2) 1/4-20
• Weather Sealed: Yes (Seals & Rings to Keep Out Water)
• Bearing: Single Ball Bearing
• Mount: Square Mounting Plate with (4) 8.9mm ID Holes, 100mm Apart
• Weight: 14 lbs

NOTES:
• Fits most Buyers models
• Heavy duty design for commercial use
• Sealed to keep water out
