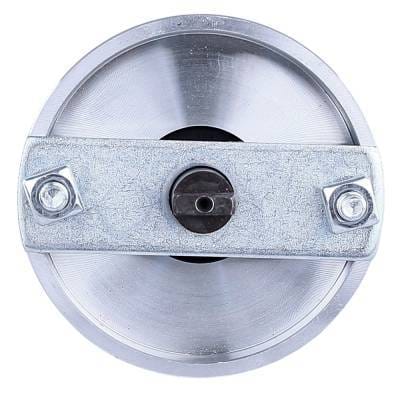

12V Reversible 3 Inch Winch Motor Compatible With Superwinch 1102D 1110 Snowbear Snow Plow Winch

OEM PART NUMBERS:
• Superwinch: 1102 / 1102D / 1110 / 1307 / 1646 / 90-33293 / SW801-005A / B01-006A
• Western Motor: W-8023 / W-8823
• Ref: 430-22015

SPECIFICATIONS:
• Voltage: 12V DC
• Rotation: Reversible (Bi-Directional)
• Power: 1kW / 1.34 HP
• Shaft OD: 13.2mm (0.520 in) - 4.32mm Flat Tang
• Shaft Height: 0.600 in from Case End
• Shaft Note: Flats on Each Side at Drive End
• Terminal: Dual 1/4-28 Posts
• Field Housing OD: 80mm / 3.150 in
• Overall Length: 182mm / 7.165 in
• Mounting: 1/4-20 Thru Bolts
• Weight: 6.2 lbs / 2.82 kg
• Condition: New

APPLICATION:
• Superwinch 1102 / 1102D / 1110 / 1307 / 1646 Series Winches
• Snowbear Snow Plow Winch Systems
• Truck Tarp Cover Motor Systems (3 Inch Motors)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
SUPERWINCH APPLICATIONS:
• Superwinch 1102 Series Winches
• Superwinch 1102D Winches
• Superwinch 1110 Series Winches
• Superwinch 1307 Series Winches
• Superwinch 1646 Series Winches
• All 3-Inch Superwinch Motor Applications

SNOW PLOW WINCH APPLICATIONS:
• Snowbear Snow Plow Winch Systems

TARP COVER APPLICATIONS:
• Truck Tarp Cover Motor Systems
• 3-Inch Tang Shaft Tarp Motors
• Commercial Vehicle Tarp Systems

MOTOR FEATURES:
• 12V DC Reversible (Bi-Directional) Operation
• 13.2mm (0.520 in) Shaft with 4.32mm Flat Tang
• Shaft at Drive End Has Flats on Each Side
• Shaft Height: 0.600 in from Case End
• Dual 1/4-28 Terminal Posts
• 1/4-20 Thru Bolt Mounting
• 3.150-Inch (80mm) Field Housing Diameter
• 7.165-Inch (182mm) Overall Length
• 1kW / 1.34 HP Output
• 6.2 lbs (2.82 kg)

NOTE: Verify OEM part number from your original unit before ordering to ensure proper fitment.
