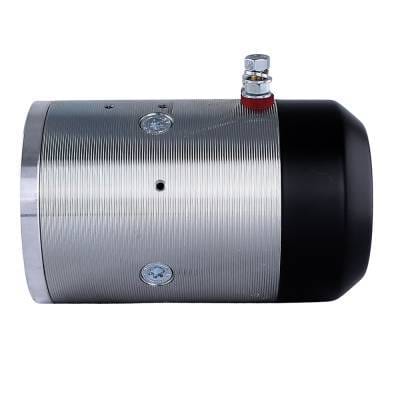

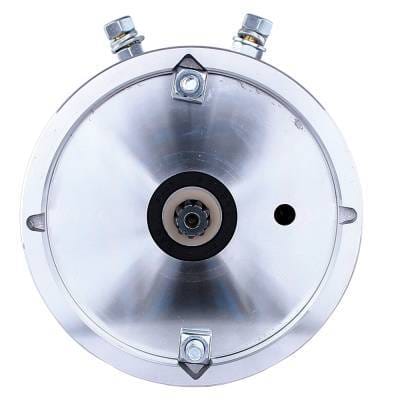

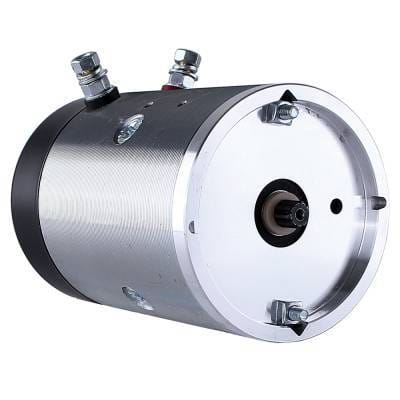

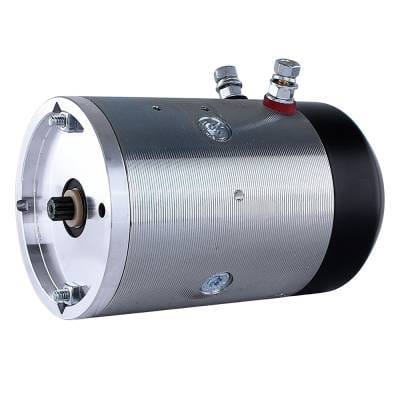

12V Pump Motor Compatible With Fenner Stone Hydrylac Waltco Dell Maxon Liftgates Curtis Sno-Way

OEM PART NUMBERS:
• Waltco: 70391100 / 70392800 / 70392900
• Fenner Stone: 1175-AC / 1185-AC / 1785-AC / 1787-AC / 1788-AC / 1789-AC / 1931-AC / 1997-AC / 2578-AC
• Prestolite: 46-4048 / 46-4229 / MUE-6114 / MUE-6114S / MUE-6212
• Maxon: 222423 / 226578 / 226579
• Anthony: A150265
• Delamerica: 25163 / 25169
• Leyman: P46340
• Venco: 13850
• Tommy Lift: 42 FENNER
• Bosch: 9130450083
• Johnson Electric: MM18896
• Barsanco: 520-001
• Western Motor: W-9787 / W-9789 / W-8989
• Ref: D-6000 / DCM-0013 / T-8789 / 02-1020 / FN2-0001N / M-340

SPECIFICATIONS:
• Voltage: 12V
• Rotation: CW (Clockwise)
• Power: 1.7kW / 2.28 HP
• Shaft OD: 12.2mm (0.480 in) - 9 Straight Splines
• Terminal: 5/16-24 (1 Post)
• Field Housing OD: 113.8mm / 4.480 in
• Overall Length: 195mm / 7.677 in
• Bearings: Double Ball Bearing
• Type: Standard Duty
• Weight: 16.2 lbs / 7.36 kg
• Condition: New

APPLICATION:
• Waltco / Dell / Maxon / Tommy Gate / Anthony / Leyman / Big Joe / Venco Liftgates
• Curtis / Sno-Way / Boss / Hiniker / Northman / Prime Mover Snow Plows
• Air-Flo / Buyers Snow Removal Equipment
• Fenner Stone Hydrylac / Fenner Fluid Power Pump Systems
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
TRUCK LIFTGATE APPLICATIONS:
• Waltco Tuck-Under / Railgate / Column Lift Liftgates (70391100, 70392800)
• Dell Liftgates
• Maxon BMR / TE / GPT / GMT Series Liftgates (222423, 226578, 226579)
• Tommy Gate G2 / TGS / RGS Series Liftgates
• Anthony Industrial Liftgates (A150265)
• Leyman Commercial Liftgates (P46340)
• Big Joe Material Handling Liftgates
• Venco Venturo Commercial Liftgates (13850)
• Truck Types: Box trucks, delivery trucks, beverage trucks, step vans, flatbed trucks, pickup trucks, stake body trucks

SNOW PLOW / SNOW REMOVAL APPLICATIONS:
• Curtis Snow Commander / Snow Pro Series Plows
• Sno-Way Light to Medium-Duty Snow Plows
• Boss Snow Plows
• Hiniker Snow Plows
• Northman Snow Plows
• Prime Mover Commercial / Municipal Plows
• Air-Flo / Buyers Snow Removal Equipment / Salt Spreaders

HYDRAULIC PUMP APPLICATIONS:
• Fenner Stone Hydrylac Hydraulic Pump Systems
• Fenner Fluid Power Pump Motor Systems
• Delamerica Hydraulic Systems (25163, 25169)

MOTOR FEATURES:
• 12.2mm (0.480 in) 9 Straight Spline Shaft
• Single 5/16-24 Terminal Post
• 4.480-Inch (113.8mm) Field Housing Diameter
• 7.677-Inch (195mm) Overall Length
• Double Ball Bearing Construction
• Standard Duty Rating
• 1.7kW / 2.28 HP Output
• 12V DC Clockwise Rotation

NOTE: Verify OEM part number from your original unit before ordering to ensure proper fitment.
