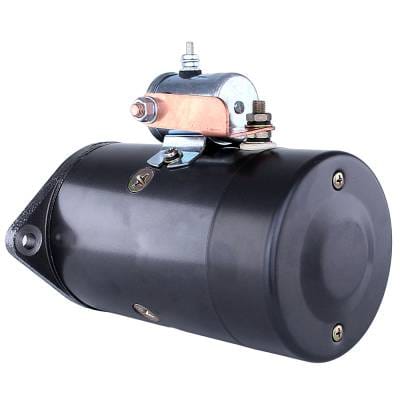

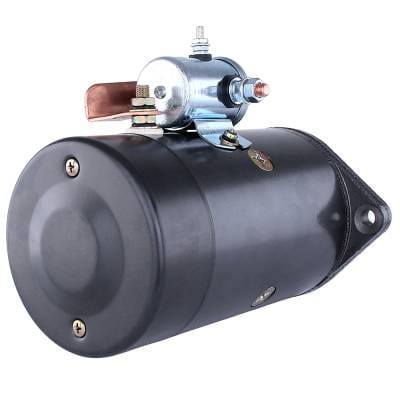

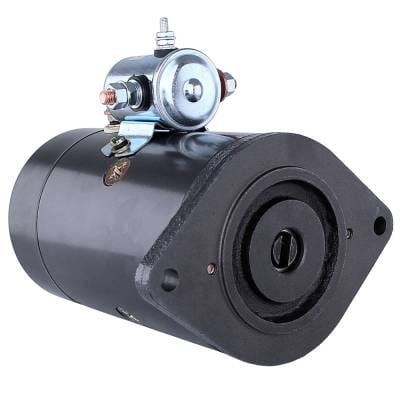

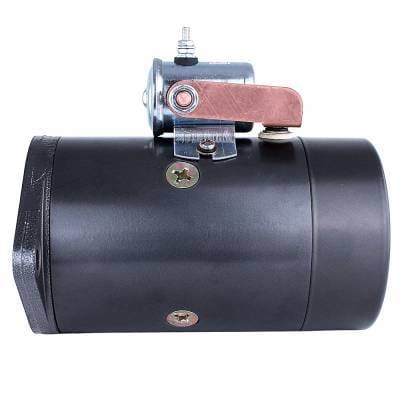

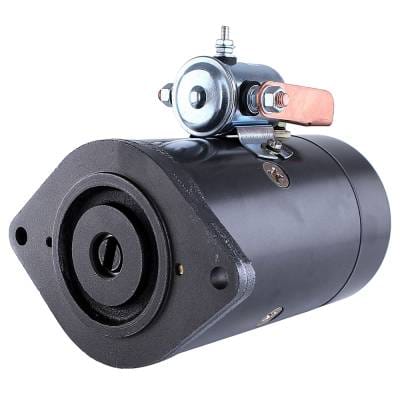

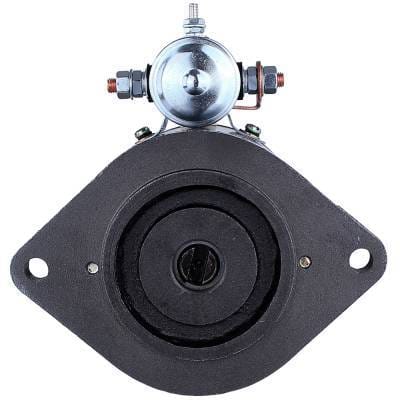

12V Primer Pump Motor Compatible With Hale Fire Truck Primer Pumps 2Kw Clockwise Prestolite 46-3663

OEM PART NUMBERS:
• Prestolite: 46-3663 / 463663
• Prestolite: MCL6201 / MCL-6201
• Prestolite: MCL6201S / MCL-6201S
• Prestolite: MUE6315
• Prestolite: MUE6215S
• Prestolite: MCL6509 / MCL-6509
• Prestolite: MCL6509S / MCL-6509S
• Hale: 200-0041-00-0 / 2000041000
• Hale: 200-0042-00-0 / 2000042000
• Hale: 200-0042-00-0B / 2000042000B
• Hale: 200-0094-00-0 / 2000094000
• Hale: 101-1580-00-0 / 1011580000
• Hale: ESP-12 / ESP12
• Hale: S204R3441

SPECIFICATIONS:
• Voltage: 12V DC
• Power: 2kW / 2.68HP
• Rotation: CW (Clockwise)
• Field Housing OD: 113mm / 4.449in
• Overall Length: 195mm / 7.677in
• Shaft OD: 15.8mm / 0.622in
• Shaft Type: 6.2mm Recessed Slot
• Terminal 1: 5/16-18 Stud
• Terminal 2: 5/16-18 Stud
• Bearing: Double Ball Bearing
• DE Ring Diameter: 3.25"
• Switch: Steel
• Weight: 17.64 lbs / 8.02 kg
• Condition: New

APPLICATION:
• Hale Fire Truck Primer Pumps (1991-2005)
• Hale Fire Equipment Pumper Systems
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
HALE FIRE TRUCK PRIMER PUMPS:
• Hale Primer Pump Systems (2000-2005)
• Hale Primer Pump Systems (1991-2000)
• Hale Fire Equipment Pumper Applications

COMPATIBLE PRESTOLITE MOTOR MODELS:
• MCL6201 / MCL6201S Series
• MCL6509 / MCL6509S Series
• MUE6315 / MUE6215S Series

MOTOR SPECIFICATIONS:
• 12V DC, 2kW / 2.68HP, Clockwise Rotation
• Double Ball Bearing Construction
• Recessed Slotted Shaft (6.2mm Slot)
• 5/16-18 Stud Terminals
• Steel Switch
• Raised Ring Diameter on DE: 3.25"

NOTE: This motor fits Hale fire truck primer pump systems. Verify OEM part number before ordering.
