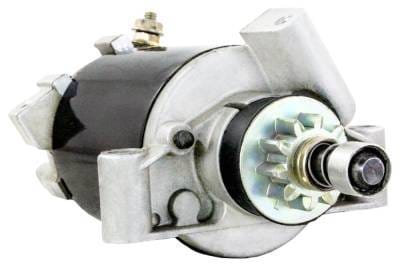

12V Pmdd Starter Compatible With Evinrude E25kl E35kl Be35are Johnson 25 35 Hp 3-Cylinder Outboard

OEM PART NUMBERS:
• OMC/BRP: 584818 / 0584818
• OMC/BRP: 586277 / 0586277
• OMC/BRP: 586272
• United Technologies: 5711640 / 5711640-M030SM / 5711640MO30SM
• United Technologies: SM57116

SPECIFICATIONS:
• Type: PMDD (Permanent Magnet Direct Drive)
• Voltage: 12V
• Rotation: CCW (Counterclockwise)
• Tooth Count: 10
• Gear OD: 1.248" / 31.7mm
• Field Housing Length: 3.46" / 88mm
• Mounting: 2x 8mm Unthreaded Ears
• Starter Drive: 2-Piece Rubber
• Weight: 9 lbs
• Condition: New

EVINRUDE & JOHNSON OUTBOARD APPLICATIONS:
• Evinrude 25HP 3-Cyl 30.5ci 2-Stroke: E25KL, E25QL, E25TKL, E25PL, E25RE, E25RL, E25RME, E25RML, E25TKE (1996-1999)
• Evinrude 35HP 3-Cyl 34.5ci 2-Stroke: E35KL, E35QL, E35TKL, E35RML (1996-2001)
• Evinrude BE-Series 25HP 3-Cyl: BE25ARE, BE25ARL, BE25KE, BE25KL, BE25QL (1996-1998)
• Evinrude BE-Series 35HP 3-Cyl: BE35ARE, BE35ARL, BE35ARS, BE35KE, BE35KL, BE35KS, BE35QL, HE35RML (1996-2001)
• Johnson 25HP 3-Cyl 30.5ci/31.8ci 2-Stroke: 25KL, 25PL3, 25QL, 25R3, 25RL3, 25RM, 25RV3, 25RVL3, 25TK, 25TEL3, 25TVL3, 25VL3 (1996-2001)
• Johnson 35HP 3-Cyl 34.5ci 2-Stroke: 35KL, 35PL3, 35QL, 35R3, 35RL3, 35RV3, 35RVL3, 35TKL, 35TEL3, 35TVL3, 35VL3, 35E3, 35EL3 (1996-2001)

AFTERMARKET CROSS REFERENCE:
• Arco Marine: 5398
• Sierra: 18-5631
• Quicksilver: 8M6007324PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
EVINRUDE 25HP 3-CYLINDER 2-STROKE OUTBOARD:
• E25KL 3-Cyl 30.5ci 25HP 2-Stroke (1998)
• E25QL 3-Cyl 30.5ci 25HP 2-Stroke (1998)
• E25TKL 3-Cyl 30.5ci 25HP 2-Stroke (1998)
• E25PL 3-Cyl 30.5ci 25HP 2-Stroke (1999)
• E25RE 3-Cyl 30.5ci 25HP 2-Stroke (1998-1999)
• E25RL 3-Cyl 30.5ci 25HP 2-Stroke (1998-1999)
• E25RME 3-Cyl 30.5ci 25HP 2-Stroke (1996-1998)
• E25RML 3-Cyl 30.5ci 25HP 2-Stroke (1996-1998)
• E25TKE 3-Cyl 30.5ci 25HP 2-Stroke (1996-1998)

EVINRUDE 35HP 3-CYLINDER 2-STROKE OUTBOARD:
• E35KL 3-Cyl 34.5ci 35HP 2-Stroke (1996-2001)
• E35QL 3-Cyl 34.5ci 35HP 2-Stroke (1996-1998)
• E35TKL 3-Cyl 34.5ci 35HP 2-Stroke (1996-1998)
• E35RML 3-Cyl 34.5ci 35HP 2-Stroke (1996-1997)

EVINRUDE COMMERCIAL / BOAT BUILDER (BE) 25HP 3-CYL 2-STROKE:
• BE25ARE 3-Cyl 30.5ci 25HP 2-Stroke (1996-1998)
• BE25ARL 3-Cyl 30.5ci 25HP 2-Stroke (1996-1998)
• BE25KE 3-Cyl 30.5ci 25HP 2-Stroke (1996-1998)
• BE25KL 3-Cyl 30.5ci 25HP 2-Stroke (1996-1998)
• BE25QL 3-Cyl 30.5ci 25HP 2-Stroke (1996-1998)

EVINRUDE COMMERCIAL / BOAT BUILDER (BE) 35HP 3-CYL 2-STROKE:
• BE35ARE 3-Cyl 34.5ci 35HP 2-Stroke (1996-1999)
• BE35ARL 3-Cyl 34.5ci 35HP 2-Stroke (1996-1998)
• BE35ARS 3-Cyl 34.5ci 35HP 2-Stroke (2000-2001)
• BE35KE 3-Cyl 34.5ci 35HP 2-Stroke (1996-1999)
• BE35KL 3-Cyl 34.5ci 35HP 2-Stroke (1996-1998)
• BE35KS 3-Cyl 34.5ci 35HP 2-Stroke (2000-2001)
• BE35QL 3-Cyl 34.5ci 35HP 2-Stroke (1996-1998)
• HE35RML 3-Cyl 34.5ci 35HP 2-Stroke (1996-1997)

JOHNSON 25HP 3-CYLINDER 2-STROKE OUTBOARD:
• 25KL 3-Cyl 30.5ci/31.8ci 25HP 2-Stroke (1996-1998)
• 25PL3 3-Cyl 30.5ci 25HP 2-Stroke (1999-2001)
• 25QL 3-Cyl 30.5ci 25HP 2-Stroke (1996-1998)
• 25R3 3-Cyl 30.5ci 25HP 2-Stroke (1999-2001)
• 25RL3 3-Cyl 30.5ci 25HP 2-Stroke (1998-2001)
• 25RM 3-Cyl 30.5ci 25HP 2-Stroke (1996-1997)
• 25RV3 3-Cyl 30.5ci 25HP 2-Stroke (2001)
• 25RVL3 3-Cyl 30.5ci 25HP 2-Stroke (2001)
• 25TK 3-Cyl 31.8ci 25HP 2-Stroke (1996-1998)
• 25TEL3 3-Cyl 30.5ci 25HP 2-Stroke (1999-2001)
• 25TVL3 3-Cyl 30.5ci 25HP 2-Stroke (2001)
• 25VL3 3-Cyl 30.5ci 25HP 2-Stroke (2001)

JOHNSON 35HP 3-CYLINDER 2-STROKE OUTBOARD:
• 35KL 3-Cyl 34.5ci 35HP 2-Stroke (1996-1998)
• 35PL3 3-Cyl 34.5ci 35HP 2-Stroke (1999-2001)
• 35QL 3-Cyl 34.5ci 35HP 2-Stroke (1996-1998)
• 35R3 3-Cyl 34.5ci 35HP 2-Stroke (1999-2001)
• 35RL3 3-Cyl 34.5ci 35HP 2-Stroke (1999-2001)
• 35RV3 3-Cyl 34.5ci 35HP 2-Stroke (2001)
• 35RVL3 3-Cyl 34.5ci 35HP 2-Stroke (2001)
• 35TKL 3-Cyl 34.5ci 35HP 2-Stroke (1996-1998)
• 35TEL3 3-Cyl 34.5ci 35HP 2-Stroke (1999-2001)
• 35TVL3 3-Cyl 34.5ci 35HP 2-Stroke (2001)
• 35VL3 3-Cyl 34.5ci 35HP 2-Stroke (2001)
• 35E3 3-Cyl 34.5ci 35HP 2-Stroke (1999)
• 35EL3 3-Cyl 34.5ci 35HP 2-Stroke (1999)
