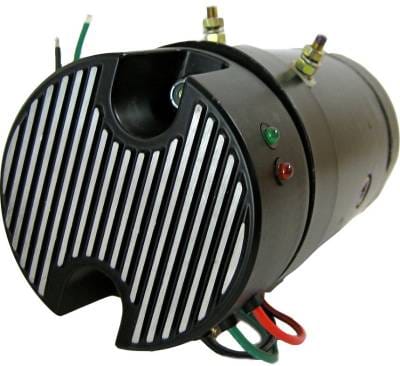

12V Generator With Regulator Compatible With 1965-1969 Harley-Davidson Fl Series 1979-1984 Xlh

HARLEY-DAVIDSON OEM:
• 29975-65 / 2997565
• 29975-65A / 2997565A
• 29975-65B / 2997565B
• 29975-65C / 2997565C
• 29975-65TA / 2997565TA
• 29978-77 / 2997877
• 29978-77A / 2997877A

HITACHI OEM:
• G113-01 / G11301
• G113-01A / G11301A

SPECIFICATIONS:
• Type: Generator with Regulator
• Voltage: 12V DC
• Amperage: 10 Amps
• Rotation: CCW (Counterclockwise)
• Shaft OD: 13.2mm / 0.52in
• Shaft: 4 Straight Splines, Keyway Behind Threads
• Terminal 1 Size: 10-32
• Terminal 2 Size: 10-32
• Overall Length: 233.6mm / 9.197in
• Field Housing OD: 95.1mm / 3.744in
• Finish: Black
• Includes: Voltage Regulator
• Weight: 10 lbs

FITS MOTORCYCLES:
• FL Series 12V (1965-1969)
• XLCH Sportster 1000cc (1975-1978)
• XLH Sportster 1000cc (1979-1984)
• XLHA Sportster Anniversary 1000cc (1982)
• XLS Roadster 1000cc (1979-1984)
• XLSA Roadster Anniversary 1000cc (1982)
• XLX-61 1000cc (1983-1984)
• XR1000 1000cc (1983-1984)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
FL SERIES:

FL SERIES (PRE 1977):
• FL Series 12 Volt - 1965, 1966, 1967, 1968, 1969

XLCH SPORTSTER:

XLCH:
• XLCH Sportster 1000cc - 1975, 1976, 1977, 1978

XLH SPORTSTER:

XLH (1979-1981):
• XLH Sportster 1000cc All - 1979, 1980, 1981

XLH (1982-1984):
• XLH Sportster 1000cc w/Buffed End Cover - 1982, 1983, 1984

XLHA SPORTSTER ANNIVERSARY:

XLHA:
• XLHA Sportster Anniversary 1000cc w/Buffed End Cover - 1982

XLS ROADSTER:

XLS (1979-1981):
• XLS Roadster 1000cc All - 1979, 1980, 1981

XLS (1982-1984):
• XLS Roadster 1000cc w/Buffed End Cover - 1982, 1983, 1984

XLSA ROADSTER ANNIVERSARY:

XLSA:
• XLSA Roadster Anniversary 1000cc w/Buffed End Cover - 1982

XLX-61:

XLX-61:
• XLX-61 1000cc to Mid 1984 w/Buffed End Cover - 1983, 1984

XR1000:

XR1000:
• XR1000 1000cc to Mid 1984 w/Buffed End Cover - 1983, 1984

NOTE:
• Black finish generator with regulator
• 12V DC, 10 Amp, CCW rotation
• 4 straight splines with keyway behind threads
• 12V models only - 6V generator has different listing
• Verify OEM part number from original unit before ordering
