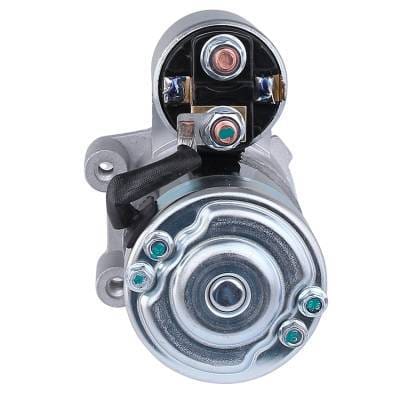

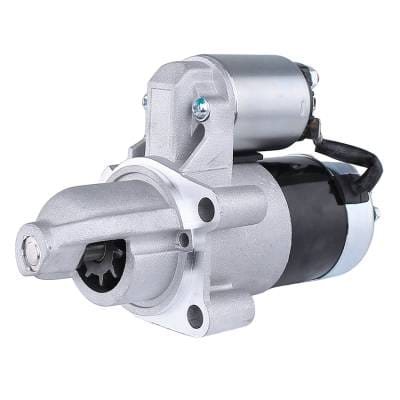

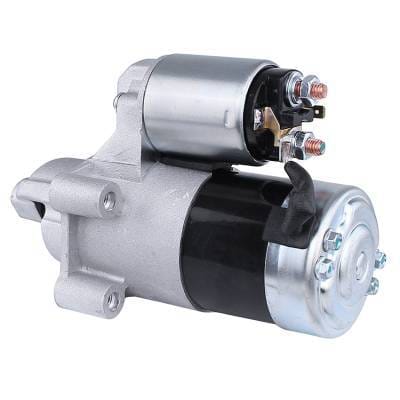

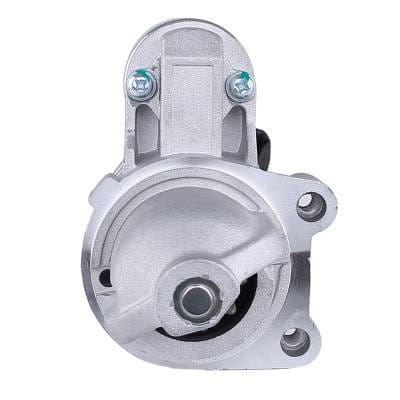

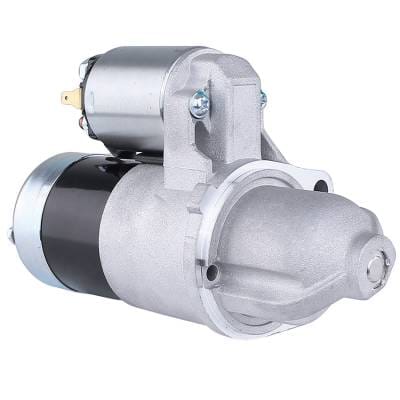

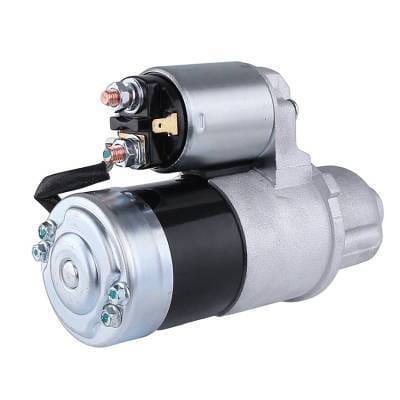

12V Engine Starter Compatible With Onan P-216 P-218 P-220 P-224 P-227 191-1949-06 191-1949-07

ONAN OEM PART NUMBERS:
• 191-1949-06
• 191-1949-07
• 191-1949-08
• 191-1804-04

MITSUBISHI PART NUMBERS:
• M2T32581
• M2T43481
• M2T43681
• M2T43781

SPECIFICATIONS:
• Type: Engine Starter
• Unit: Mitsubishi DD (Direct Drive)
• Voltage: 12V
• Rotation: Counterclockwise (CCW)
• Tooth Count: 9
• Gear OD: 37.1mm (1.461in)
• Mounting Ear 1: 5/16-18 ID Threaded
• Mounting Ear 2: 5/16-18 ID Threaded
• Weight: 8.57 lbs (3.90 kg)

COMPATIBLE WITH ONAN ENGINES:
P-Series Engines (Solenoid on Side):
• P-216 - 16HP twin-cylinder
• P-218 - 18HP twin-cylinder (P218G gasoline)
• P-220 - 20HP twin-cylinder (P220G gasoline)
• P-224 - 24HP twin-cylinder
• P-227 - 27HP twin-cylinder

COMPATIBLE WITH EQUIPMENT:
John Deere Lawn Tractors (1983-1992):
• 316 - Onan P218G engine
• 318 - Onan P218G engine
• 420 - Onan P220G engine

Skid Steer Loaders:
• New Holland L250 (1984-1999) - Onan P218G
• Gehl SL3310 (1983) - Onan P220

Other Equipment:
• Steiner 410 Tractor - Linamar/Mitsubishi system
• Bunton Grass Cutter - Onan Performer 16HP/18HP/20HP

ENGINE TYPES:
• Air-cooled horizontal twin-cylinder
• Industrial and agricultural engines
• Marine and generator applications
• 16HP to 27HP power range

⚠️ NOT COMPATIBLE WITH:
• Onan engines with solenoid on bottom
• Different mounting configuration
• Always verify solenoid locationPRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
COMPATIBLE WITH ONAN ENGINES (SOLENOID ON SIDE):
P-216 Engine - 16HP:
• Air-cooled horizontal twin-cylinder
• 16 horsepower output
• Industrial and agricultural applications
• Solenoid mounted on side of starter

P-218 Engine - 18HP:
• Air-cooled horizontal twin-cylinder
• 18 horsepower output
• P218G designation for gasoline
• Lawn tractor and equipment applications

P-220 Engine - 20HP:
• Air-cooled horizontal twin-cylinder
• 20 horsepower output
• P220G designation for gasoline
• Industrial and commercial equipment

P-224 Engine - 24HP:
• Air-cooled horizontal twin-cylinder
• 24 horsepower output
• Heavy-duty industrial applications
• Marine and generator applications

P-227 Engine - 27HP:
• Air-cooled horizontal twin-cylinder
• 27 horsepower output
• Heavy-duty industrial and marine
• Generator and welding applications

JOHN DEERE LAWN TRACTORS (1983-1992):
• 316 Lawn Tractor (1984-1992) - Onan P218G Engine
• 318 Lawn Tractor (1983-1992) - Onan P218G Engine
• 420 Lawn Tractor (1983-1991) - Onan P220G Engine

NEW HOLLAND SKID STEER (1984-1999):
• L250 Skid Steer Loader (1984-1999) - Onan P218G Engine
• Compact construction equipment
• 2-speed hydrostatic transmission
• Rated operating capacity: 1,250 lbs

GEHL SKID STEER:
• SL3310 Skid Steer (1983) - Onan P220 Engine
• Compact construction loader
• Agricultural and construction applications

STEINER TRACTOR:
• 410 Tractor - Linamar Engine with Mitsubishi System
• Compact utility tractor
• Grounds maintenance and landscaping

BUNTON MOWERS:
• Grass Cutter - Onan Performer Engine
• 16HP, 18HP, 20HP models
• Commercial mowing applications

EQUIPMENT APPLICATIONS:
• Lawn maintenance - Mowing, landscaping
• Construction - Skid steer operations
• Agricultural - Farm equipment
• Industrial - Generators, welders
• Commercial - Grounds maintenance
• Marine - Generator sets

⚠️ CRITICAL COMPATIBILITY NOTE:
• FOR ONAN ENGINES WITH SOLENOID ON SIDE
• NOT for engines with solenoid on bottom
• Verify solenoid location before ordering
