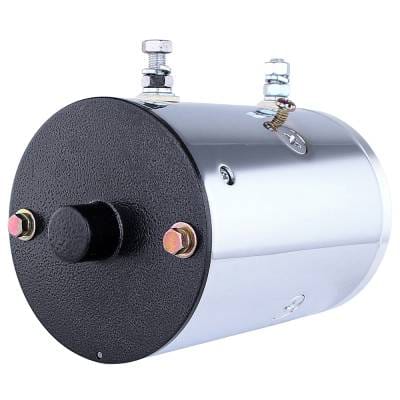

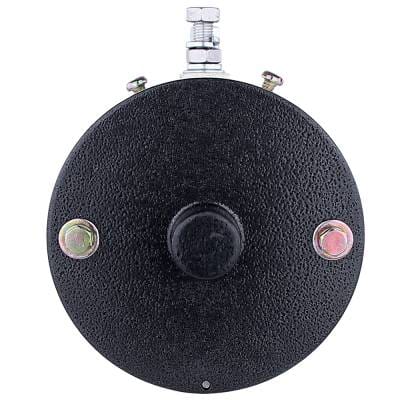

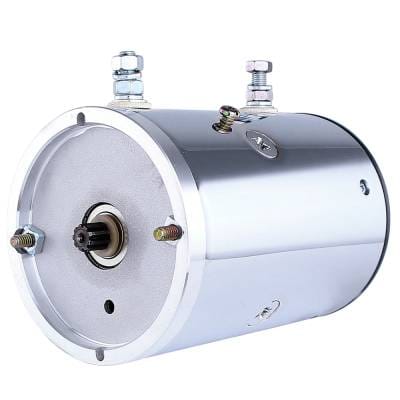

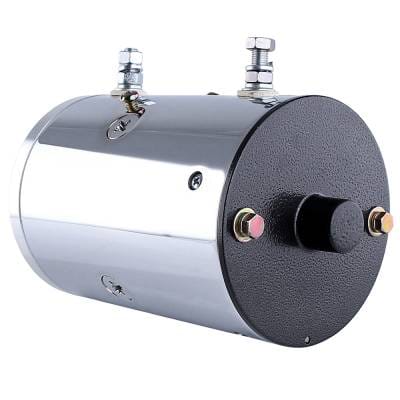

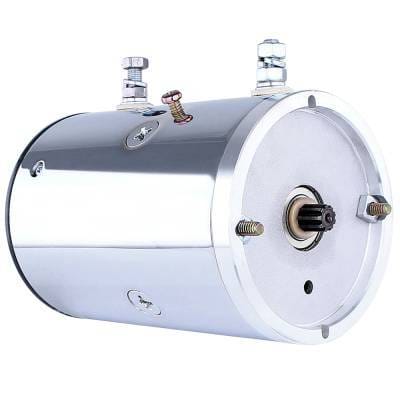

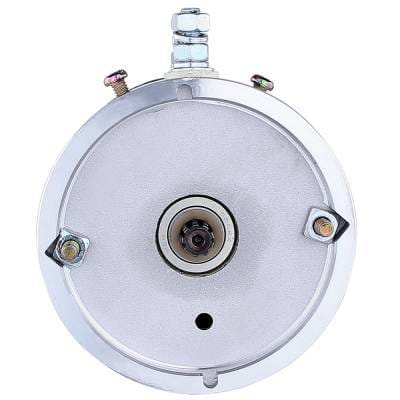

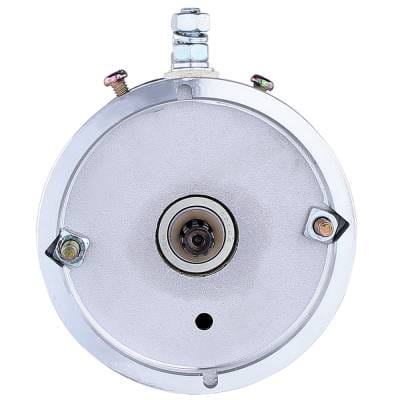

12V Chrome Hydraulic Pump Motor Compatible With Fenner Spx Pro Hopper Lowrider Hydraulic Systems 9

OEM PART NUMBERS:
• W-9799C (Prestolite Style Chrome)
• W-9799LC (Prestolite Style Chrome)

SPECIFICATIONS:
• Type: DC Hydraulic Pump Motor
• Voltage: 12V DC
• Rotation: Clockwise (CW)
• Shaft: 9 Straight Splines
• Shaft OD: 12.2mm / 0.480in
• Field Housing OD: 113.8mm / 4.480in
• Overall Length: 195mm / 7.677in
• Terminal Size: 5/16-24
• Field Coils: 4 (Parallel High RPM)
• Ground: Double Insulated
• Finish: Chrome
• Weight: 17 lbs

FEATURES:
• Chrome HD special 4 field coil motor
• Special duty parallel high RPM field coils
• Heavy double lead wires to brushes
• High RPM balanced armature with welded windings
• Double insulated rear ground post
• Prestolite style old school plus design with improvements

FITS HYDRAULIC SYSTEMS:
• Fenner Fluid Power / SPX Hydraulic Pumps
• Pro Hopper / Cool Cars / Showtime
• Orlie's Auto Accessories / Red's Pro Series
• Lowrider / Hi-Jacker Competition Hydraulics
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
FENNER / SPX HYDRAULIC SYSTEMS:

FENNER FLUID POWER:
• Fenner Fluid Power Hydraulic Pump Systems
• Fenner Stone Hydraulic Power Units

SPX:
• SPX Hydraulic Power Units

LOWRIDER HYDRAULIC BRANDS:

PRO HOPPER:
• Pro Hopper Hydraulic Pump Systems

COOL CARS:
• Cool Cars Hydraulic Systems

SHOWTIME:
• Showtime Hydraulics

ORLIE'S AUTO ACCESSORIES:
• Orlie's Auto Accessories Hydraulic Systems

RED'S PRO SERIES:
• Red's Pro Series Hydraulic Systems

COMPETITION / HI-JACKER:
• Lowrider Competition Hydraulic Pump Applications
• Hi-Jacker Hydraulic Systems
