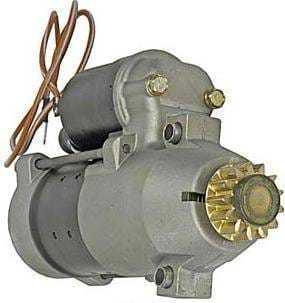

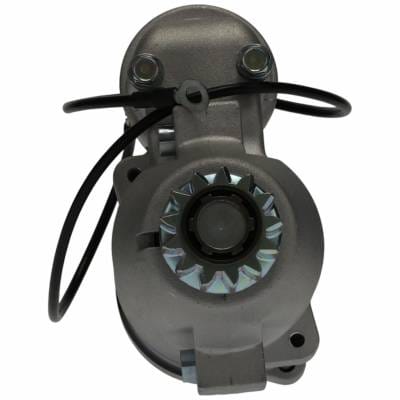

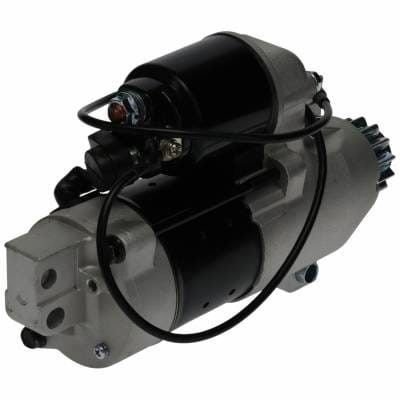

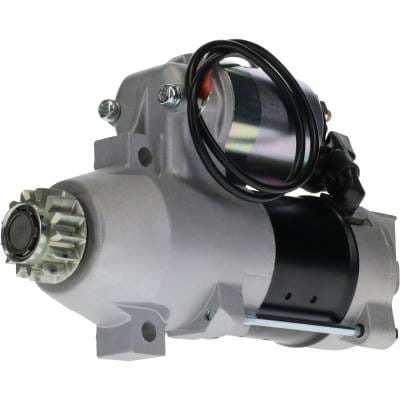

12V Ccw Starter Motor Compatible With Yamaha Outboard Hpdi Z150tlr Vz150tlr Lz150txr 150Hp 175Hp

OEM PART NUMBERS:
• Yamaha: 68F-81800-00 / 68F-81800-01 / 68F-81800-02 / 68F-81800-03 / 68F-81800-04 (current)
• Hitachi: S114-836A / S114-836BN
• Sierra Marine: 18-6426

SPECIFICATIONS:
• Voltage: 12V
• Starter Type: PMGR
• Rotation: CCW (Counterclockwise)
• Tooth Count: 13
• Gear OD: 39.7mm / 1.563"
• Mounting: 2 Ears (8.8mm ID Unthreaded)
• Switch Lead: 63cm
• Ring Terminal: 6.6mm ID
• Battery Stud: M8-1.25 Threaded
• Unit Type: Hitachi
• Weight: 8.1 lbs / 3.68 kg
• Condition: New

APPLICATION:
• Yamaha HPDI 150HP 2-Stroke V6 Outboard (2000-2015)
• Yamaha HPDI 175HP 2-Stroke V6 Outboard (2001-2013)
• Yamaha HPDI 200HP 2-Stroke V6 Outboard (2000-2013)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
YAMAHA HPDI 150HP OUTBOARD (2-STROKE V6):
• Z150TLR (2001-2004)
• Z150TR (2000)
• Z150TXR (2001-2004)
• VZ150TLR (2000-2015)
• LZ150TR (2000)
• LZ150TXR (2001-2006)

YAMAHA HPDI 175HP OUTBOARD (2-STROKE V6):
• Z175TXR (2001-2004)
• VZ175TLR (2001-2013)

YAMAHA HPDI 200HP OUTBOARD (2-STROKE V6):
• Z200TLR (2001)
• Z200TR (2000)
• Z200TXR (2001-2004)
• VZ200TLR (2001-2004)
• LZ200TR (2000)
• LZ200TXR (2001-2013)

NOTE: Verify OEM part number from your original unit before ordering to ensure proper fitment.
