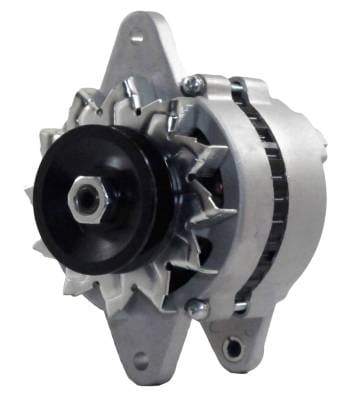

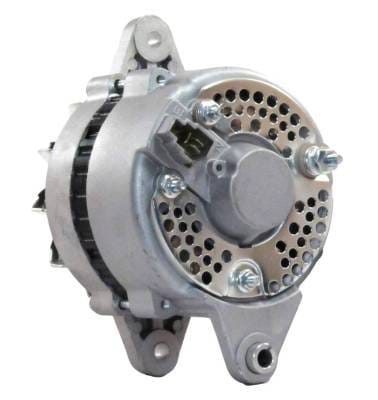

12V Alternator Compatible With Kubota S2602dia S2800a Engine M4030 M4950 M5030 Tractor 15763-64012

OEM PART NUMBERS:

KUBOTA:
• 15763-64010
• 15763-64011
• 15763-64012
• 15321-64010 / 15321-64012
• 15411-64010 / 15411-64011
• 15471-64010 / 15471-64011
• 15606-64010 / 15606-64011

DENSO / NIPPONDENSO:
• 121000-0980
• 021000-5670
• 021000-6840
• 021000-8620
• 9712109-098 (Reman)

DELCO REMY:
• 10459521

GEHL:
• 121962

OTHER:
• 111195 (Cargo)
• 290-140A
• 90-29-5097
• 14510

SPECIFICATIONS:
• Voltage: 12V
• Amperage: 35A
• Unit Type: Denso Style
• Fan: External
• Regulator: External
• Rotation: Clockwise (CW)
• Grooves: 1
• Polarity: Negative Ground
• Pulley OD: 2.953" / 75mm
• Terminals: 3 Terminal Plug
• Weight: 9.05 lbs / 4.11 kg

NOTE: Use voltage regulator 124384PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
ALTERNATOR - KUBOTA UTILITY TRACTOR APPLICATIONS:

KUBOTA COMPACT TRACTORS - L4150 SERIES:
• L4150HF w/F2302DI 50HP Diesel (1984-1990)
• L4150MDT w/F2302DI 50HP Diesel (1984-1990)
• L4150MF w/F2302DI 50HP Diesel (1984-1990)

KUBOTA UTILITY TRACTORS - M4030 SERIES:
• M4030 w/S2602DIA 43HP Diesel (1986-1989)
• M4030DT w/S2602DIA 51HP Diesel (1986-1989)
• M4030F w/S2602DIA 51HP Diesel (1986-1989)
• M4030MDT w/S2602DIA 51HP Diesel (1986-1989)
• M4030MF w/S2602DIA 51HP Diesel (1986-1989)
• M4030SU w/S2602DIA 51HP Diesel (1986-1996)
• M4030TF w/S2602DIA 51HP Diesel (1986-1989)

KUBOTA UTILITY TRACTORS - M4950 SERIES:
• M4950F w/S2800A 55HP Diesel (1983-1993)
• M4950FC w/S2800A 55HP Diesel (1983-1985)
• M4950S w/S2800A 55HP Diesel (1983-1993)

KUBOTA UTILITY TRACTORS - M5030 SERIES:
• M5030DT w/S2800A 60HP Diesel (1986-1989)
• M5030DTL w/S2800A 60HP Diesel (1986-1989)
• M5030F w/S2800A 60HP Diesel (1986-1989)
• M5030L w/S2800A 60HP Diesel (1986-1989)
• M5030MDT w/S2800A 60HP Diesel (1986-1989)
• M5030MDTL w/S2800A 60HP Diesel (1986-1989)
• M5030MF w/S2800A 60HP Diesel (1986-1989)
• M5030SU w/S2800A 60HP Diesel (1990-1996)
• M5030SUDT w/S2800A 60HP Diesel (1990-1996)
