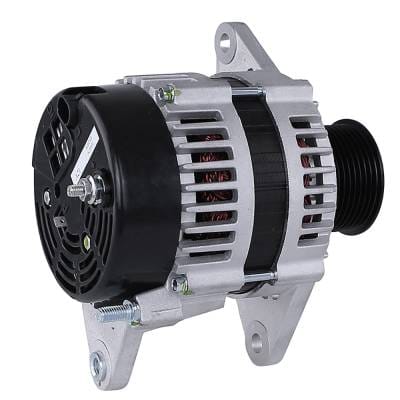

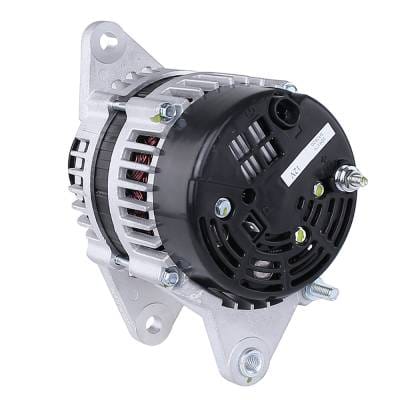

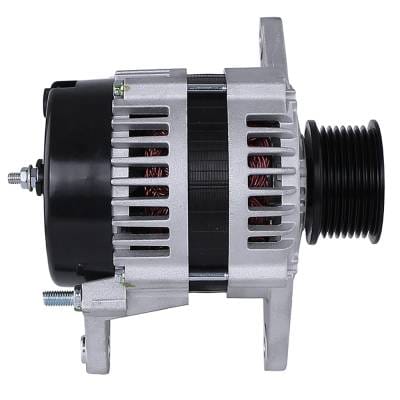

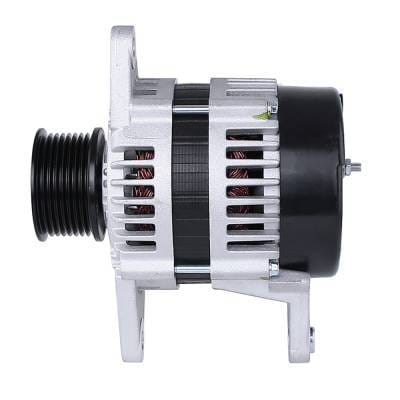

12V Alternator Compatible With Cummins Qsf2.8 Isf2.8 2.8L Diesel Foton Tunland Pickup Otokar Atlas

OEM PART NUMBERS:
• Cummins/Onan: 5332265 / 5332265F
• Cummins: 5302290

SPECIFICATIONS:
• Voltage: 12V
• Amperage: 70A
• Rotation: CW (Clockwise)
• Regulator: Internal (Clock Position 0.5)
• Fan: Internal

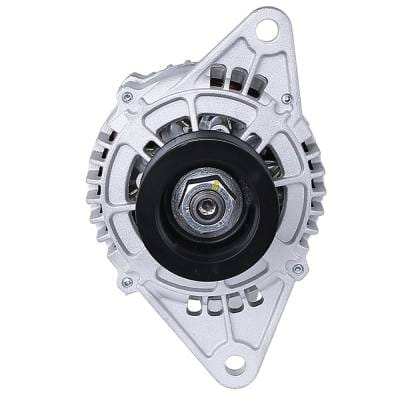

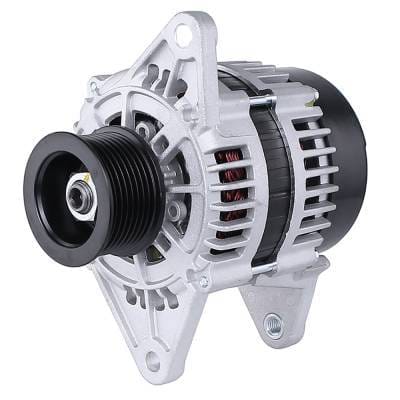

• Pulley: 8-Groove Serpentine, Solid Type
• Pulley OD: 66mm / 2.598"
• Groove OD: 60mm / 2.362"
• Mount Hole 1: 10.5mm Unthreaded
• Mount Hole 3: M10-1.5 Threaded
• B+ Terminal: M6-1.0 Stud
• IG/L Terminals: Spade
• Polarity: Negative Ground
• Condition: New

APPLICATION:
• Foton Tunland / Aumark / Toano / View CS2 / Ollin w/ISF2.8 (2012-On)
• GAZelle NEXT / NN / Business / Sobol w/ISF2.8 129-150HP (2010-On)
• Otokar Atlas Light Truck w/ISF2.8 (2013-On)
• BAIC BJ80 Off-Road SUV w/2.8L Diesel (2016-On)
• Compact Construction Equipment w/QSF2.8 49-74HP (2013-On)
• Cummins R2.8 Crate Engine Conversions (2017-On)

12V Alternator — Cummins QSF2.8 ISF2.8 Off-Highway and On-Highway Diesel
Brand new 12V alternator for Cummins QSF2.8 off-highway and ISF2.8 on-highway applications worldwide. Direct replacement for 5332265, 5332265F, and 5302290. Fits Foton Tunland 4x2/4x4 pickups, Otokar Atlas trucks from 8.5T to 15T, and all GAZelle platform vehicles. Also fits compact construction equipment, material handling equipment, portable compressors, and towable generators powered by QSF2.8. Three mounting holes with M10-1.5 threaded mount.PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
FOTON VEHICLES (ISF2.8 DIESEL):
• Foton Tunland Pickup 2.8L Turbo Diesel 4x2/4x4 (2012-On)
• Foton Aumark S Light Truck 2.8L Diesel GVW 3.5-7.5T (2014-On)
• Foton Toano Van/Minibus 2.8L Diesel (2014-On)
• Foton View CS2 Van 2.8L Diesel (2013-On)
• Foton Ollin Light Truck 2.8L Diesel (2012-On)

GAZ GROUP VEHICLES (ISF2.8 DIESEL):
• GAZelle NEXT Cargo/Van/Bus 2.8L Cummins ISF Diesel 129-150HP (2013-On)
• GAZelle NN Cargo/Van/Bus 2.8L Diesel (2021-On)
• GAZelle Business 2.8L Cummins ISF Diesel 120HP (2010-On)
• Sobol / Sobol NEXT 2.8L Cummins ISF Diesel (2010-On)
• GAZelle NEXT Cityline Bus 2.8L Diesel 130HP (2014-On)

OTOKAR VEHICLES (ISF2.8 DIESEL):
• Otokar Atlas Light Truck 2.8L Diesel GVW 8.5-15T (2013-On)

BAIC / BAW VEHICLES (ISF2.8 DIESEL):
• BAIC BJ80 Off-Road SUV 2.8L Turbo Diesel 163HP (2016-On)

CUMMINS QSF2.8 OFF-HIGHWAY EQUIPMENT:
• Compact Excavators w/QSF2.8 49-74 HP Tier 4 Final (2013-On)
• Skid Steer Loaders w/QSF2.8 Diesel (2013-On)
• Compact Wheel Loaders w/QSF2.8 Diesel (2013-On)
• Telehandlers w/QSF2.8 Diesel (2013-On)
• Forklifts w/QSF2.8 Diesel (2013-On)
• Portable Air Compressors w/QSF2.8 (2013-On)
• Portable/Towable Generator Sets w/QSF2.8 (2013-On)

CUMMINS R2.8 CRATE ENGINE (USA):
• R2.8 Turbo Diesel Crate Engine 2.8L 4-Cylinder (2017-On)
• Custom Vehicle Conversions and Retrofits

NOTE: Verify OEM part number 5332265 from your original unit before ordering to ensure proper fitment.
