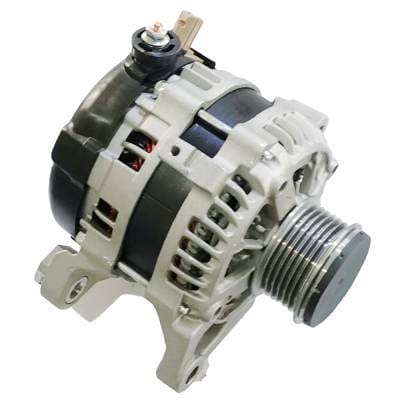

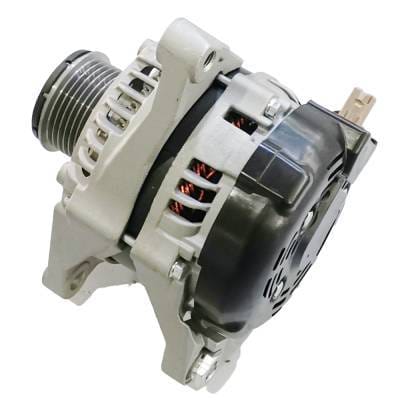

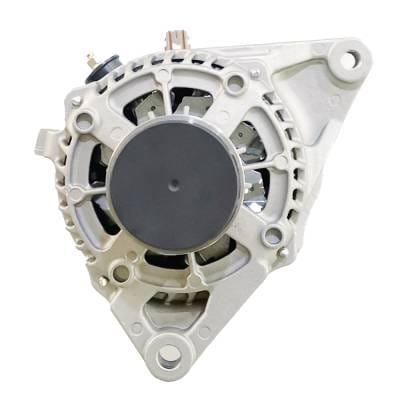

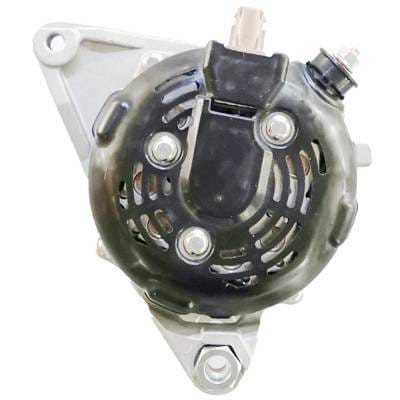

12V Alternator Compatible With 2016-2018 Toyota Rav4 Se 2.5L L4 Fwd 2013-2018 Xle Limited

OEM PART NUMBERS:
• Toyota: 27060-36090 / 2706036090
• Toyota: 27060-0V140 / 270600V140
• Denso: 104211-3531 / 1042113531
• Denso: 104211-3290 / 1042113290
• Denso: 104211-3291 / 1042113291
• Denso: 104211-3293 / 1042113293

SPECIFICATIONS:
• Voltage: 12V
• Amperage: 100 Amp
• Rotation: CW (Clockwise)
• Pulley: 6-Groove Serpentine Decoupler, 55mm Groove OD
• Regulator Position: 12:00
• Regulator Location: Internal
• Fan Location: Internal
• Polarity: Negative
• B+ Terminal: M6-1.0
• LIN Terminal: Spade
• Design: Denso SC (Hairpin)
• Mounting: 3 Ears (M10-1.25 / 11mm / M10-1.25)
• Condition: New

APPLICATION:
• Toyota RAV4 2.5L L4 2AR-FE FWD (2013-2018)
• FWD only — AWD models use different alternator
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
TOYOTA RAV4 2.5L FWD:
• RAV4 XLE 2.5L L4 2AR-FE FWD (2013-2018)
• RAV4 XLE Plus 2.5L L4 2AR-FE FWD (2017-2018)
• RAV4 SE 2.5L L4 2AR-FE FWD (2016-2018)
• RAV4 Limited 2.5L L4 2AR-FE FWD (2013-2018)
• RAV4 Limited Platinum 2.5L L4 2AR-FE FWD (2013-2015)
• RAV4 LE 2.5L L4 2AR-FE FWD (2013-2018)

IMPORTANT — FWD ONLY:
• This is the 100 amp alternator for FWD (front-wheel drive) RAV4 models only
• AWD (all-wheel drive) RAV4 models use a different alternator
• Verify OEM part number from your original unit before ordering to ensure proper fitment
