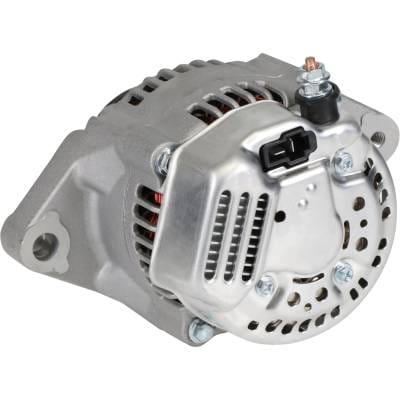

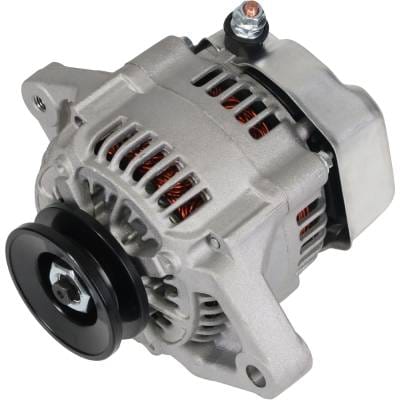

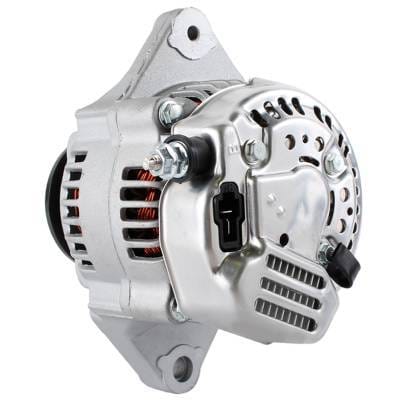

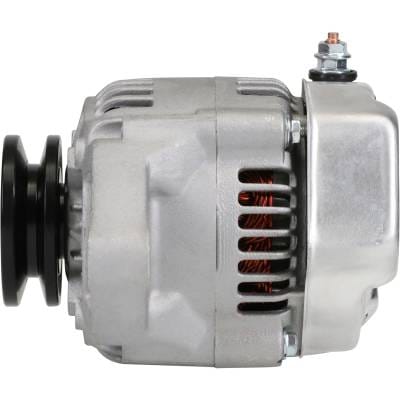

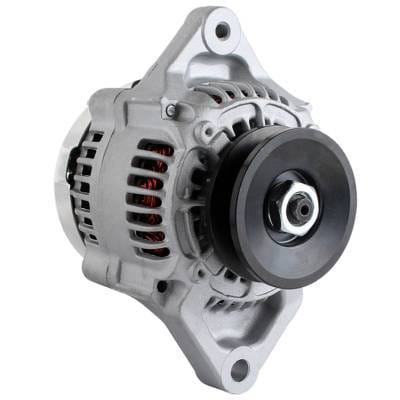

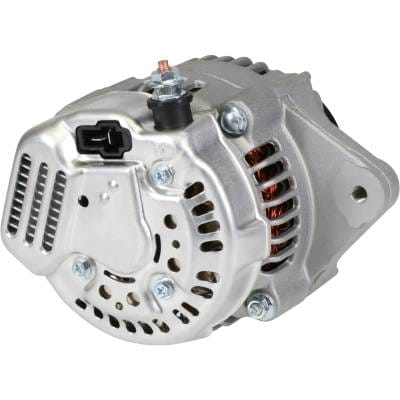

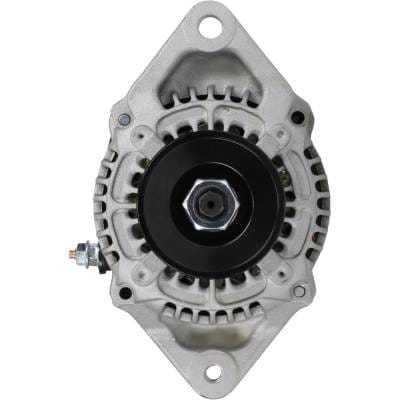

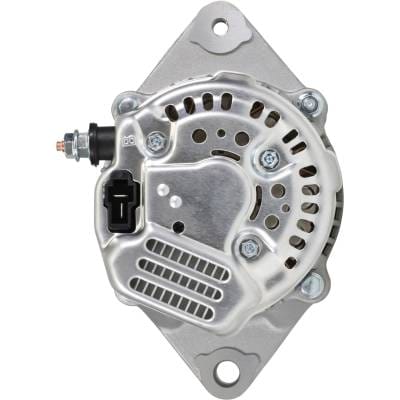

12V Alternator Compatible With 2007-2008 L5740 L5740hst L5240 L4740 Compact Tractor V2403 Diesel

OEM PART NUMBERS:
• Denso 101211-8520 (1012118520)
• Denso 101211-8521 (1012118521)
• Denso 101211-8522 (1012118522)
• Denso 101211-8523 (1012118523)
• Denso 101211-2850 (1012112850)
• Denso 101211-2851 (1012112851)
• Denso 101211-2490 (1012112490)
• Denso 9761219-852 (9761219852)
• Denso 9761219-285 (9761219285)
• Kubota 3A611-74012 (3A61174012)
• Kubota 3A611-74013 (3A61174013)
• Kubota 3A611-74010 (3A61174010)
• Kubota 3A611-74014 (3A61174014)
• Kubota 16615-64011 (1661564011)
• Kubota 16615-64012 (1661564012)
• Kubota 16615-64013 (1661564013)
• Kubota TA043-74011 (TA04374011)
• Kubota TA043-74012 (TA04374012)
• Kubota KEARA-3A611 (KEARA3A611)
• Yanmar 129052-77220 (12905277220)
• AM880701
• LRA02198 (LRA2198)
• LRA03514 (LRA3514)

SPECIFICATIONS:
• Voltage: 12V
• Amperage: 60 Amps
• Unit Type: Denso
• Rotation: Clockwise (CW)
• Fan: Internal
• Regulator: Internal
• Grooves: 1 (V-Belt)
• Pulley Type: Solid
• Pulley OD: 2.717in / 69mm
• Mount Type: Spool
• Mounting Ear 1 Hole: M8-1.25 Threaded
• Mounting Ear 1 Thickness: 0.63in / 16mm
• Mounting Ear 2 Hole: 10.4mm Unthreaded
• Mounting Ear 2 Thickness: 0.827in / 21mm
• B+ Terminal: M6-1.0
• IG Terminal: Spade
• L Terminal: Spade
• Polarity: Negative
• Regulator Clock Position: 9:00
• Total Length: 143mm
• Weight: 7.9 lbs / 3.59 kg

FITS KUBOTA COMPACT TRACTORS:
• L3240HSTC, L3240HSTC-3, L3430DT/GST/HST/HSTC
• L3540HSTC, L3540HSTC-3, L3710HSTC
• L3940HSTC, L3940HSTC-3, L4240HSTC, L4240HSTC-3
• L4330DT/GST/HST/HSTC, L4610/GST/HST/HSTC
• L4630DT/GST/GSTC/HST, L4740HSTC, L4740HSTC-3
• L5030GST/HST/HSTC, L5240HSTC, L5240HSTC-3
• L5740, L5740HST, L5740HSTC, L5740HSTC-3

FITS KUBOTA UTILITY TRACTORS:
• M4900-CAB, M4900DT-CAB
• M5700-CAB, M5700DT-CAB, M5700HDC

FITS KUBOTA DIESEL ENGINES:
• V2203, V2403, V2607, D950-B, D1503-M, D1703-M-DI
• D1803-CR-E4, V2003-M-T, V2403MTE2, V1305B, G3B-H, M900Q

FITS THOMAS EQUIPMENT:
• Thomas T95 Skid Steer - V1305B Kubota Diesel (1994-2007)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
KUBOTA COMPACT TRACTORS - L SERIES:

L5740 / L5740HST:
• Kubota L5740 V2403MTE2 59HP Diesel - 2007, 2008
• Kubota L5740HST V2403MTE2 59HP Diesel - 2007, 2008
• Kubota L5740HSTC V2403 Diesel - 2007, 2008
• Kubota L5740HSTC-3 V2403 Diesel - 2007, 2008

L5240:
• Kubota L5240HSTC V2403 Diesel - 2007, 2008
• Kubota L5240HSTC-3 V2403 Diesel - 2007, 2008

L5030:
• Kubota L5030GST V2403 Diesel - 2007, 2008
• Kubota L5030HST V2403 Diesel - 2007, 2008
• Kubota L5030HSTC V2403 Diesel - 2007, 2008

L4740:
• Kubota L4740HSTC V2607 Diesel - 2007, 2008
• Kubota L4740HSTC-3 V2607 Diesel - 2007, 2008

L4630:
• Kubota L4630DT V2203 Diesel - 2003, 2004, 2005, 2006, 2007, 2008
• Kubota L4630GST V2203 Diesel - 2003, 2004, 2005, 2006, 2007, 2008
• Kubota L4630GSTC V2203 Diesel - 2003, 2004, 2005, 2006, 2007, 2008
• Kubota L4630HST V2203 Diesel - 2003, 2004, 2005, 2006, 2007, 2008

L4330:
• Kubota L4330DT V2203 Diesel - 2003, 2004, 2005, 2006, 2007, 2008
• Kubota L4330GST V2203 Diesel - 2003, 2004, 2005, 2006, 2007, 2008
• Kubota L4330HST V2203 Diesel - 2003, 2004, 2005, 2006, 2007, 2008
• Kubota L4330HSTC V2203 Diesel - 2003, 2004, 2005, 2006, 2007, 2008

L4240:
• Kubota L4240DT V2403 Diesel - 2007, 2008
• Kubota L4240GST V2403 Diesel - 2007, 2008
• Kubota L4240HST V2403 Diesel - 2007, 2008
• Kubota L4240HSTC V2403 Diesel - 2007, 2008
• Kubota L4240HSTC-3 V2403 Diesel - 2007, 2008

L3940:
• Kubota L3940DT V2203 Diesel - 2007, 2008
• Kubota L3940GST V2203 Diesel - 2007, 2008
• Kubota L3940HST V2203 Diesel - 2007, 2008
• Kubota L3940HSTC V2203 Diesel - 2007, 2008
• Kubota L3940HSTC-3 V2203 Diesel - 2007, 2008

L3540:
• Kubota L3540GST V2203 Diesel - 2007, 2008
• Kubota L3540HST V2203 Diesel - 2007, 2008
• Kubota L3540HSTC V2203 Diesel - 2007, 2008
• Kubota L3540HSTC-3 V2203 Diesel - 2007, 2008

L3430:
• Kubota L3430DT V2203 Diesel - 2003, 2004, 2005, 2006, 2007, 2008
• Kubota L3430GST V2203 Diesel - 2003, 2004, 2005, 2006, 2007, 2008
• Kubota L3430HST V2203 Diesel - 2003, 2004, 2005, 2006, 2007, 2008
• Kubota L3430HSTC V2203 Diesel - 2003, 2004, 2005, 2006, 2007, 2008

L3240:
• Kubota L3240F V2203 Diesel - 2007, 2008
• Kubota L3240GST V2203 Diesel - 2007, 2008
• Kubota L3240HST V2203 Diesel - 2007, 2008
• Kubota L3240HSTC V2203 Diesel - 2007, 2008
• Kubota L3240HSTC-3 V2203 Diesel - 2007, 2008

L4610:
• Kubota L4610 V2203 Diesel - 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003
• Kubota L4610GST V2203 Diesel - 1999, 2000, 2001, 2002, 2003
• Kubota L4610HST V2203 Diesel - 1999, 2000, 2001, 2002, 2003
• Kubota L4610HSTC V2203 Diesel - 1999, 2000, 2001, 2002, 2003

L3710:
• Kubota L3710HSTC V2203 Diesel - 1998, 1999, 2000, 2001, 2002, 2003

KUBOTA UTILITY TRACTORS - M SERIES:

M4900:
• Kubota M4900-CAB V2403 Diesel - 2001, 2002, 2003, 2004, 2005, 2006
• Kubota M4900DT-CAB V2403 Diesel - 2001, 2002, 2003, 2004, 2005, 2006

M5700:
• Kubota M5700-CAB V2607 Diesel - 2001, 2002, 2003, 2004, 2005, 2006
• Kubota M5700DT-CAB V2607 Diesel - 2001, 2002, 2003, 2004, 2005, 2006
• Kubota M5700HDC V2607 Diesel - 2001, 2002, 2003, 2004, 2005, 2006

KUBOTA ENGINES (INDUSTRIAL):

Kubota Diesel Engines:
• Kubota Engine G3B-H - 1995 and up
• Kubota Engine D950-B - 1998
• Kubota M900Q Diesel Engine
• Kubota V2203, V2203-M
• Kubota V2403, V2403-M, V2403-M-DI, V2403-M-T, V2403-CR-E4, V2403-CR-TE4, V2403MTE2
• Kubota V2607, V2607-DI, V2607-DI-T, V2607-CR-TE4
• Kubota D1503-M, D1703-M-DI
• Kubota D1803-CR-E4, D1803-CR-TE4
• Kubota V2003-M-T
• Kubota V1305B

THOMAS EQUIPMENT:

Thomas Skid Steer:
• Thomas T95 Skid Steer V1305B Kubota Diesel - 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007
