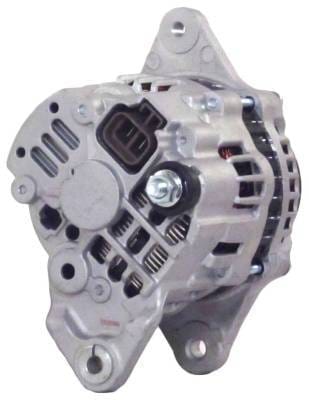

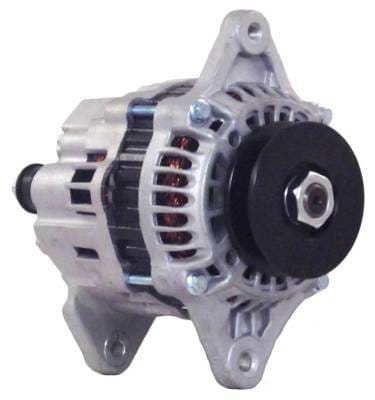

12V Alternator Compatible With 2004-2009 Komatsu Fg10-20 Fg15-20 Fg18-20 Fg15ht-17 Fg18ht-17

OEM PART NUMBERS:
• Mitsubishi: A007TA3377 / A7TA3377
• Mitsubishi: A007TA3371 / A7TA3371
• Mitsubishi: A7TA3377A / A007TA3377A
• Mitsubishi Industrial: 91H20-03270 / 91H20-03271
• Mitsubishi Heavy Industries: 91H20-08840
• Nissan: 23100-FU410 / 23100-FU41A
• Nissan: 23100-AM610 / 23100-FF110
• Kalmar: 8772271 / 8775058
• Minnpar: 47-4703

SPECIFICATIONS:
• Voltage: 12V
• Amperage: 50A
• Rotation: CW (Clockwise)
• Fan: Internal
• Regulator: Internal
• Regulator Clock: 1:00
• Pulley: 1 Groove, Solid, 2.874" / 73mm OD
• Output Stud: M8-1.25
• Polarity: Negative
• Weight: 8.75 lbs / 3.98 kg
• Condition: New

APPLICATION:
• Caterpillar C3000-C6500, P3000-P6500, CC4000, PCC4000 (2004-2009)
• Kalmar AC C30AX-C60BXH, P30AX-P60BXH (2001-2005)
• Komatsu FG10-FG32 Series (2004-2009)
• Mitsubishi Industrial FG/FGC Series (2004-2009)
• Nissan Industrial AL/CL/L/PL Series (2004-2009)
• TCM FCG/FG/FHG Series (2001-2009)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
KOMATSU FORKLIFTS (K15 Engine):
• FG10-20 K15 (2004-2009)
• FG15-20 K15 (2004-2009)
• FG18-20 K15 (2004-2009)

KOMATSU FORKLIFTS (K21 Engine):
• FG15HT-17 K21 (2004-2006)
• FG15HT-20 K21 (2007-2009)
• FG15SHT-17 K21 (2004-2006)
• FG15SHT-20 K21 (2007-2009)
• FG18HT-17 K21 (2004-2006)
• FG18HT-20 K21 (2007-2009)
• FG18SHT-17 K21 (2004-2006)
• FG18SHT-20 K21 (2007-2009)
• FG20C-14 K21 (2004-2006)
• FG20C-16 K21 (2007-2009)
• FG20SHT-14 K21 (2004-2006)
• FG20SHT-16 K21 (2006-2009)
• FG25C-14 K21 (2004-2005)
• FG25SHT-14 K21 (2004-2006)
• FG25T-14 K21 (2006-2009)
• FG30C-14 K21 (2004-2005)

KOMATSU FORKLIFTS (K25 Engine):
• FG28HT-16 K25 (2006-2009)
• FG28SHT-16 K25 (2006-2009)
• FG30HT-14 K25 (2004-2005)
• FG30SHT-16 K25 (2006-2009)
• FG32HT-16 K25 (2006-2009)
• FG32SHT-16 K25 (2006-2009)

NOTE: Verify OEM part number before ordering.
